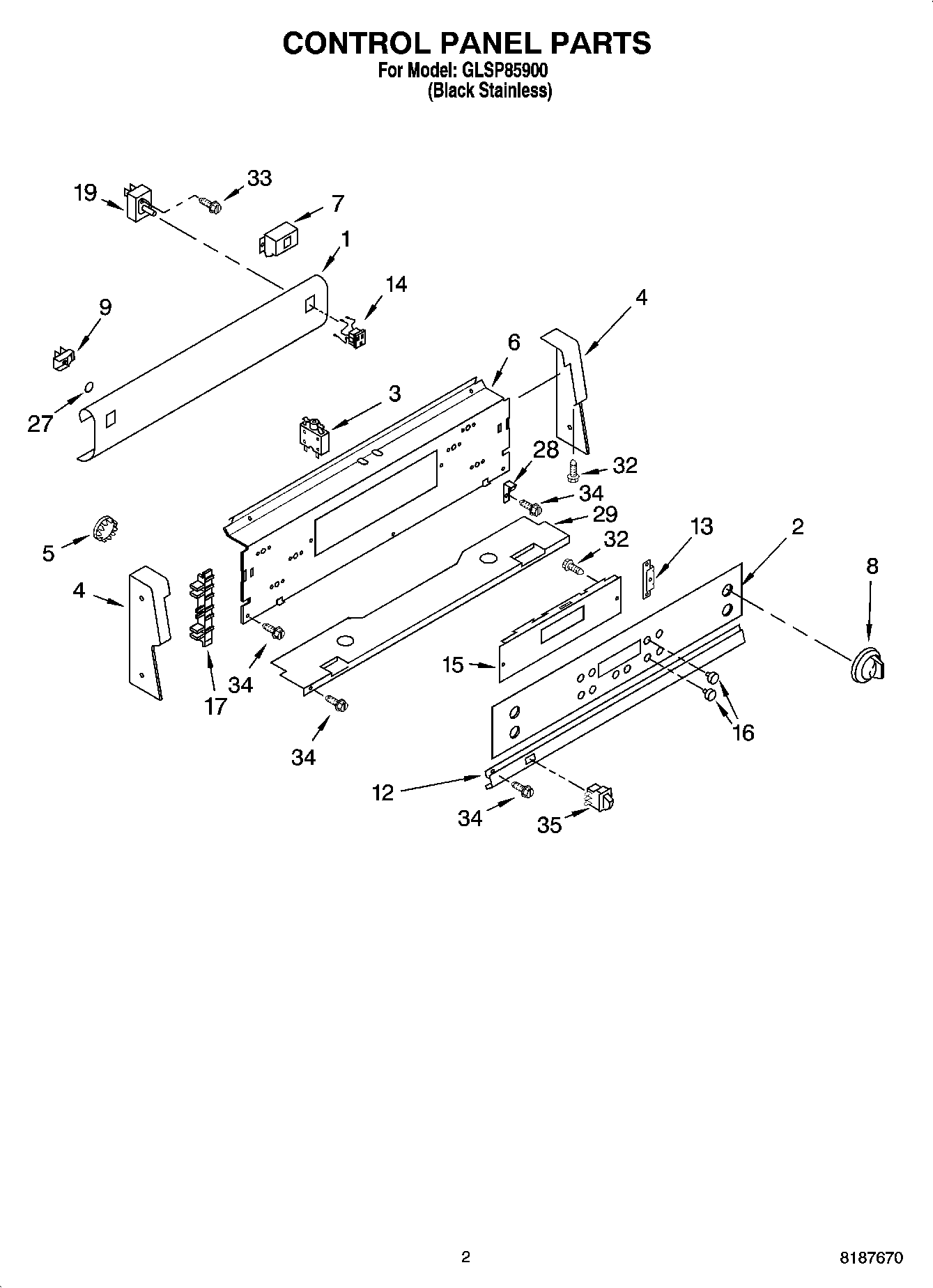

GLSP85900 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Lamp Cover (Black)
2Console-Glass (Control Panel)
3Breaker, 15 Amp
4End Cap (Black, Left)
4End Cap (Black, Right)
5Button Plug (8 mm (2))
6Spacer, Timer
6Panel, Control
7WPL 9755353PB
8Knobs, Control (4) (Black)
9Light, Indicator (Surface Unit (2))
12Trim Strip (Black)
13WPL 9753304
14Outlet, Untimed (2) (Black)
15Timer
16Knob, Timer (17) (Black)
17Insert (2) (Black)
19WP9750643 Whirlpool Infinite Switch
19Switch, Dual
19Infinite Switch (1800W)
27WP9750343 Whirlpool Light Lens
28WPL 9753017
29Base, Console
32WP4159387 Whirlpool Compactor Screw
33WP3400882 Whirlpool Screw
34WP3400832 Whirlpool Screw
35Switch, Rocker
35Insulation, Control Panel
