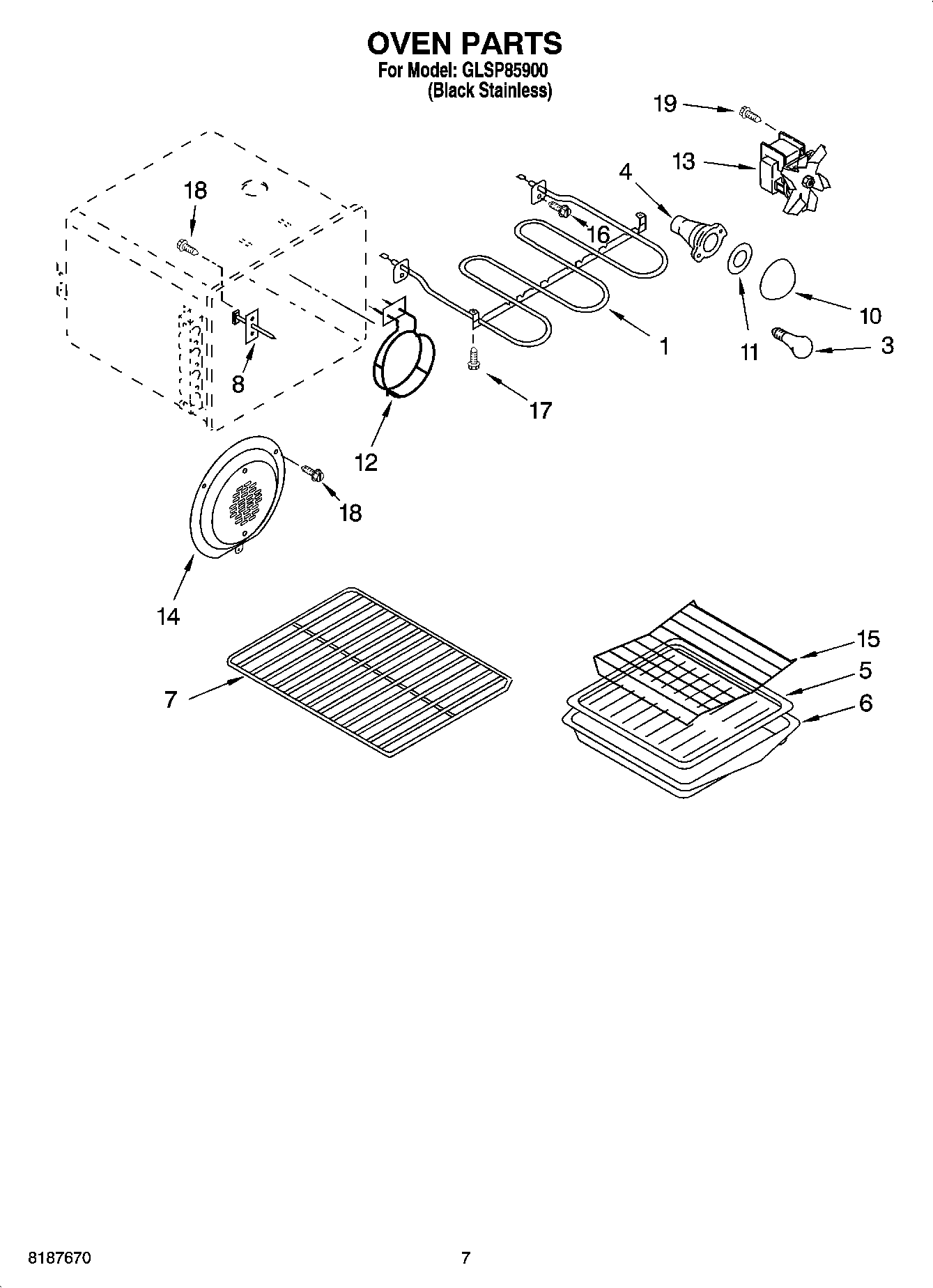

GLSP85900 05 – OVEN PARTS

Products

PositionProduct
1Element, Broil
3RANGE ONLY 40W 120V APPL BULB
4W11594027 Whirlpool Range Oven Light Socket
64396923 Whirlpool Broil Pan Set Gray Porcelain
7Rack, Standard (3)
8Sensor
10WP9781049 Whirlpool Light Lens
11WP3184533 Whirlpool Range Light Lens Gasket
12WPW10280189 Whirlpool Element
13Fan Assembly
14Baffle, Convection
15Rack, Roasting
16Screw
17340184 Whirlpool Screw
18WP4159387 Whirlpool Compactor Screw
19Screw (4) 10 x 1/2
