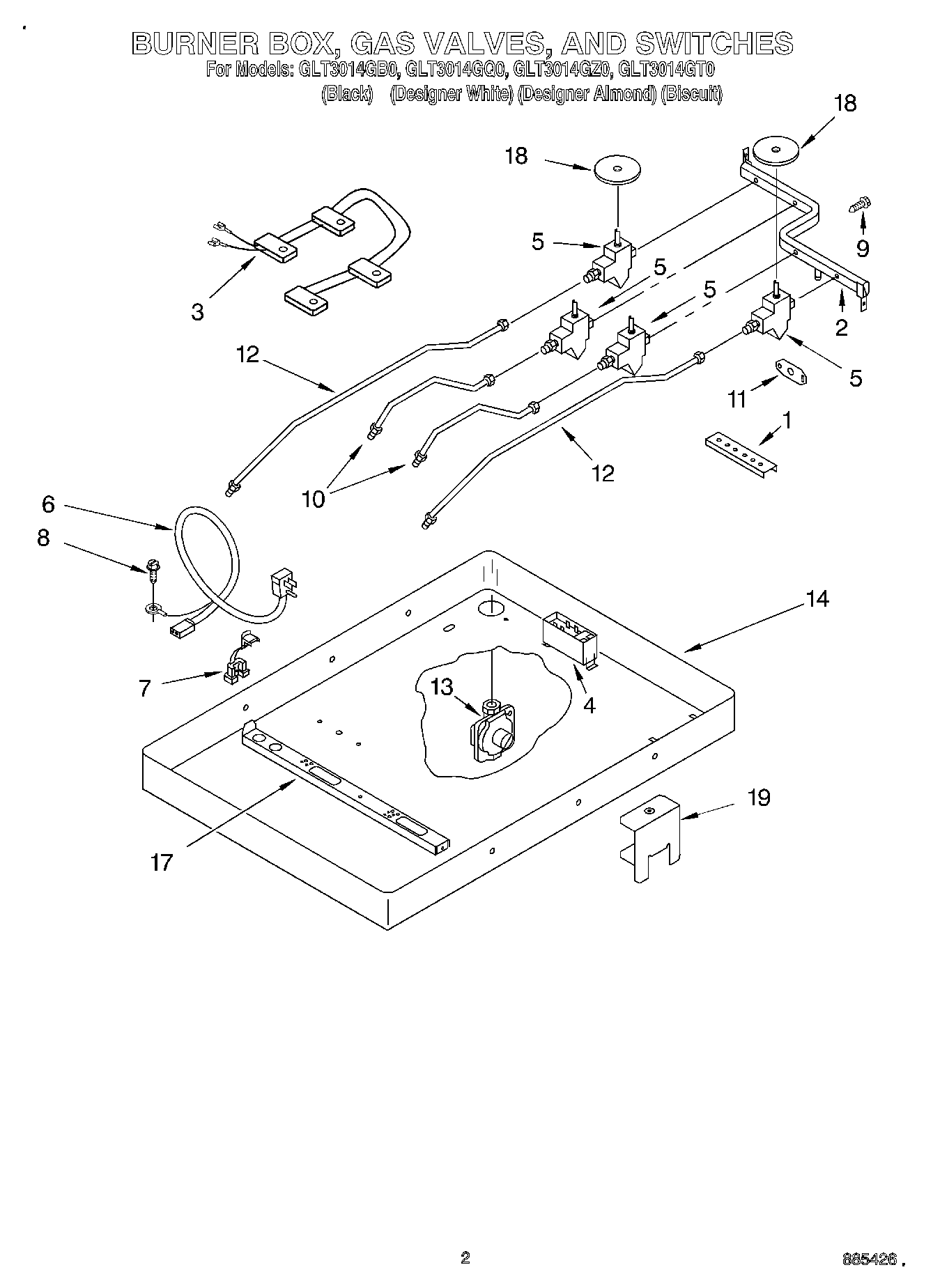

GLT3014GB0 02 – SECTION

Products

Position	Product
	Hardware, Mounting
	Use And Care Guide
	Conversion Instructions
	Conversion Kit Natural Gas To L.P.
	Wiring Diagram
	Safer Cooking Tips
	Installation Instructions
1	8186533 Whirlpool Hardware
1	Screw
1	Nut, Tinnerman (2)
2	9759354 Whirlpool Oven Manifold Pipe
2	W10491985 Whirlpool Screw
3	WP3191334 Whirlpool Wire Harness
4	WP8053421 Whirlpool Oven Spark Module
5	Valve, Burner (Large (3))
5	Valve, Burner (Small (1))
6	W10392007 Whirlpool Power Cord
7	4173634 Whirlpool Bushing
8	WP3177991 Whirlpool Screw
9	Bolt, Gas Valve
10	Tubing, Burner RR & RF
11	3192491 Whirlpool Support Bracket
12	3191320 Whirlpool Oven Gas Tubing
13	Regulator, Pressure
14	Box, Burner
17	W10203756 Whirlpool Support
17	WP4449809 Whirlpool Screw
18	WP3188425 Whirlpool Seal Switch
19	WP3400806 Whirlpool Screw
19	Bracket, Bow Reducer
