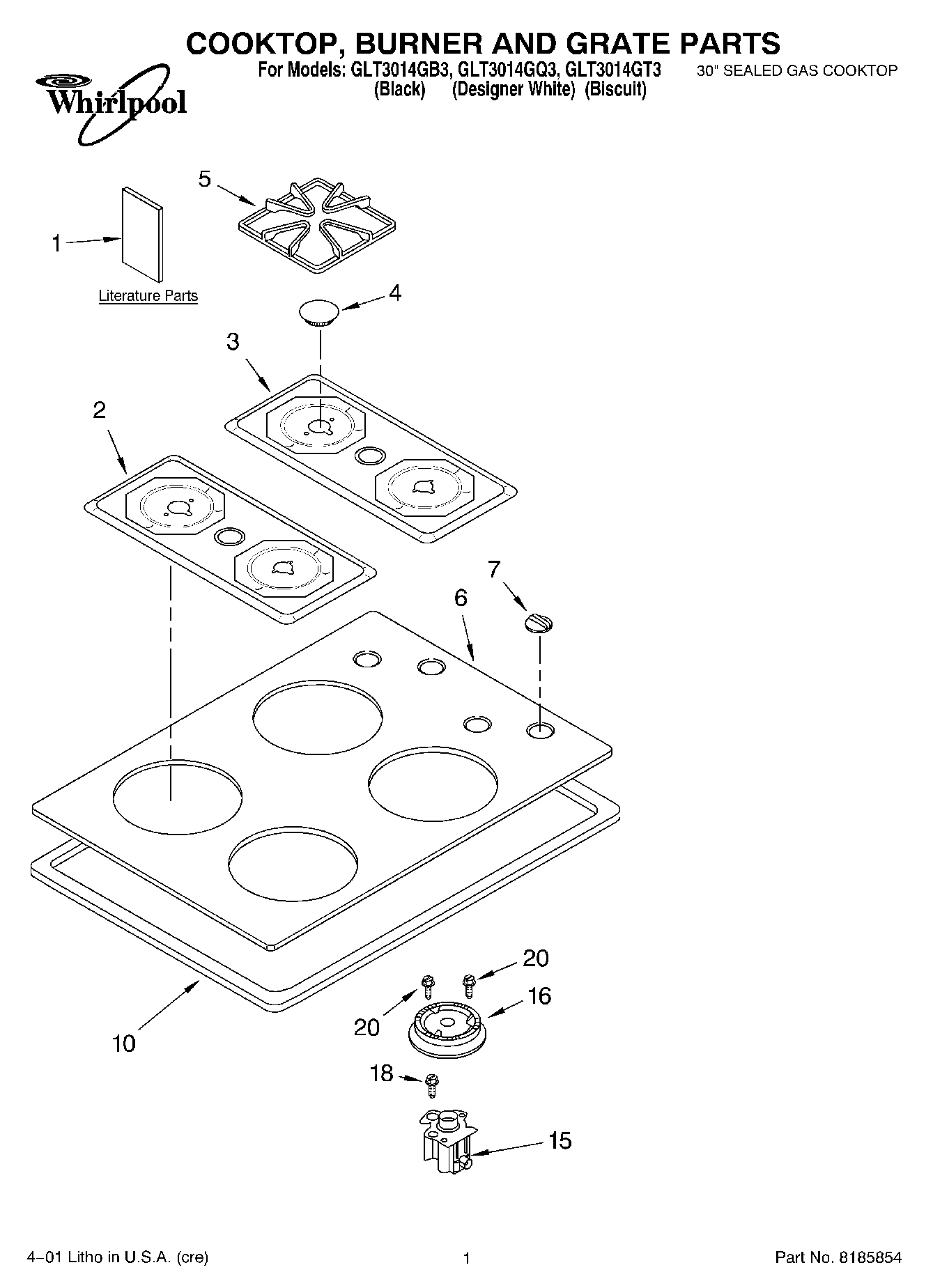

GLT3014GQ3 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Use And Care Guide
1	LP Conversion Instructions
1	Wiring Diagram
2	Bowl, Left (Biscuit)
2	Bowl, Left (White)
2	Bowl, Left (Black)
3	Bowl, Right (Black)
3	Bowl, Right (White)
3	Bowl, Right (Biscuit)
4	WP3191903 Whirlpool Burner Cap
4	WP3191905 Whirlpool Burner Cap
4	Cap, Burner 6K (1) (Gray)
4	WP3191901 Whirlpool Burner Cap
4	WP3191898 Whirlpool Surface Burner Cap Black
4	WP3191904 Whirlpool Burner Cap
5	WP8053456 Whirlpool Burner Grate
5	WPW10447925 Whirlpool Grate Kit
6	Cooktop, Glass (White)
6	Cooktop, Glass (Black)
6	Cooktop, Glass (BIscuit)
7	WP3191328 Whirlpool Control Knob
10	Seal, Foam
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455980 Whirlpool Burner Head
16	WP4455981 Whirlpool Burner Head
20	WP4449809 Whirlpool Screw
20	15“
20	28“
20	WP3400806 Whirlpool Screw
20	WP3368921 Whirlpool Screw
