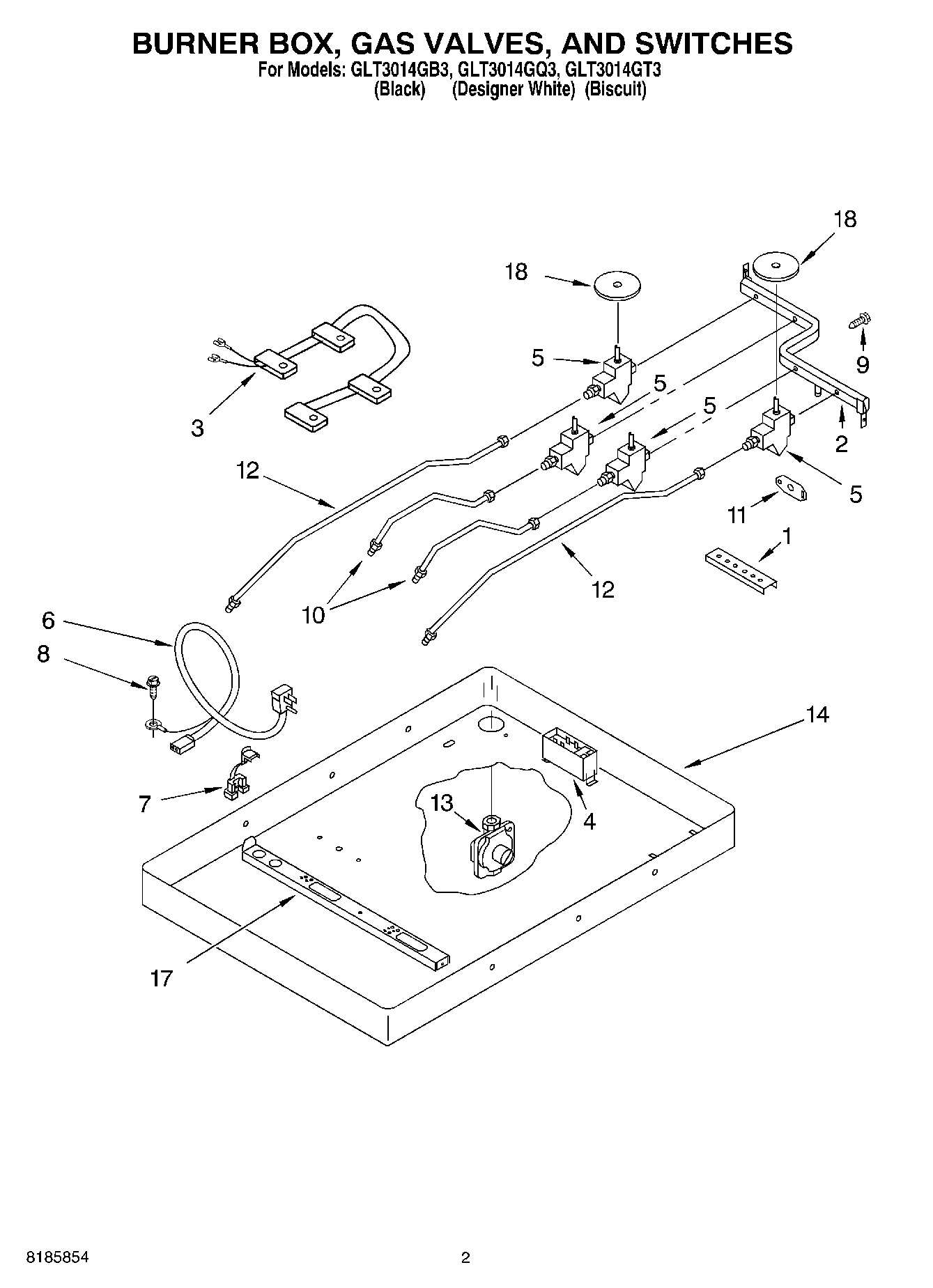

GLT3014GT3 02 – SECTION

GLT3014GT3 02 – SECTION

Written by

in

GLT3014GT3 02 – SECTION

Products

PositionProduct
18186533 Whirlpool Hardware
1Screw
1Nut, Tinnerman (2)
29759354 Whirlpool Oven Manifold Pipe
2W10491985 Whirlpool Screw
3WP3191334 Whirlpool Wire Harness
4WP12990527 Whirlpool Microwave Screw
4WPW10110491 Whirlpool Spark Module
5Valve, Burner (Large (3))
5Valve, Burner (Small (1))
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9Bolt (Gas Valve)
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
123191320 Whirlpool Oven Gas Tubing
13Regulator, Pressure
14Box, Burner
17WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
18Hardware, Mounting
18WP3192741 Whirlpool LP Conversion Kit
