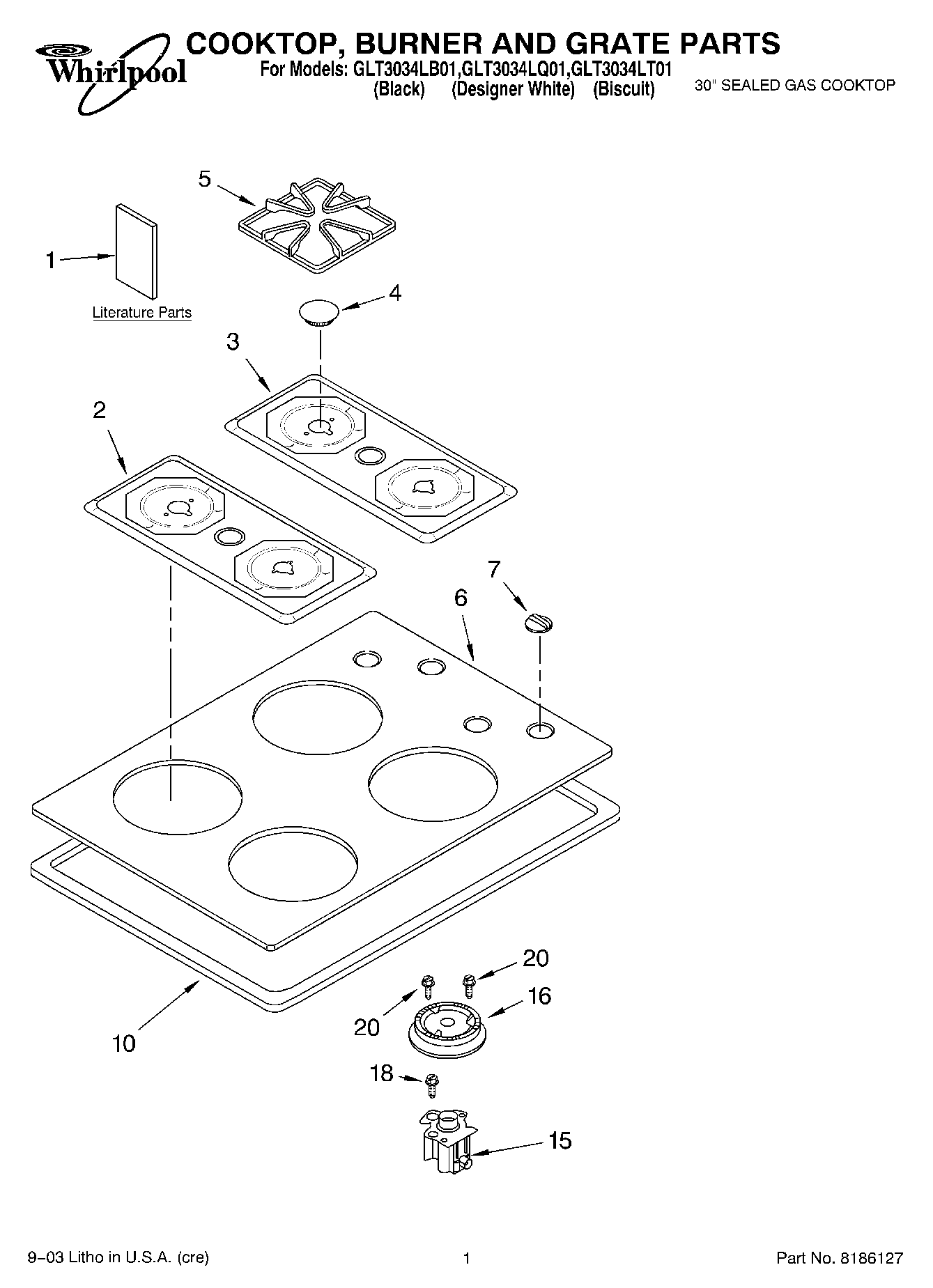

GLT3034LB01 01 – COOKTOP, BURNER AND GRATE PARTS

GLT3034LB01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

GLT3034LB01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Safer Cooking Tips
1Wiring Diagram
1LP Conversion Instructions
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
2Bowl, Left (Biscuit)
2Bowl, Left (White)
2Bowl, Left (Black)
312.5K (2)
39.5K (1)
36K (1)
3Cap, Burner 6K (1) (Gray)
3WP3191905 Whirlpool Burner Cap
3WP3191904 Whirlpool Burner Cap
3WP3191903 Whirlpool Burner Cap
3WP3191898 Whirlpool Surface Burner Cap Black
3Bowl, Right (Biscuit)
3Bowl, Right (White)
3Bowl, Right (Black)
3WP3191901 Whirlpool Burner Cap
5WPW10447925 Whirlpool Grate Kit
5WP8053456 Whirlpool Burner Grate
6Cooktop, Glass (BIscuit)
6Cooktop, Glass (White)
6Cooktop, Glass (Black)
7Knob, Control (4) (Black)
7Knob, Control (4) (White)
7Knob, Control (4) (Biscuit)
10Seal, Foam
15WPW10128448 Whirlpool Igniter and Orifice Holder
15WPW10155784 Whirlpool Orifice Holder
15WPW10155785 Whirlpool Orifice Holder
16WP4455980 Whirlpool Burner Head
16WP4455981 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
20WP4449809 Whirlpool Screw
20FOLLOWING PARTS NOT ILLUSTRATED
204456626 Whirlpool Wire
204456627 Whirlpool Wire Harness
20WP3368921 Whirlpool Screw
20WP3400806 Whirlpool Screw
20Harness, Wire
