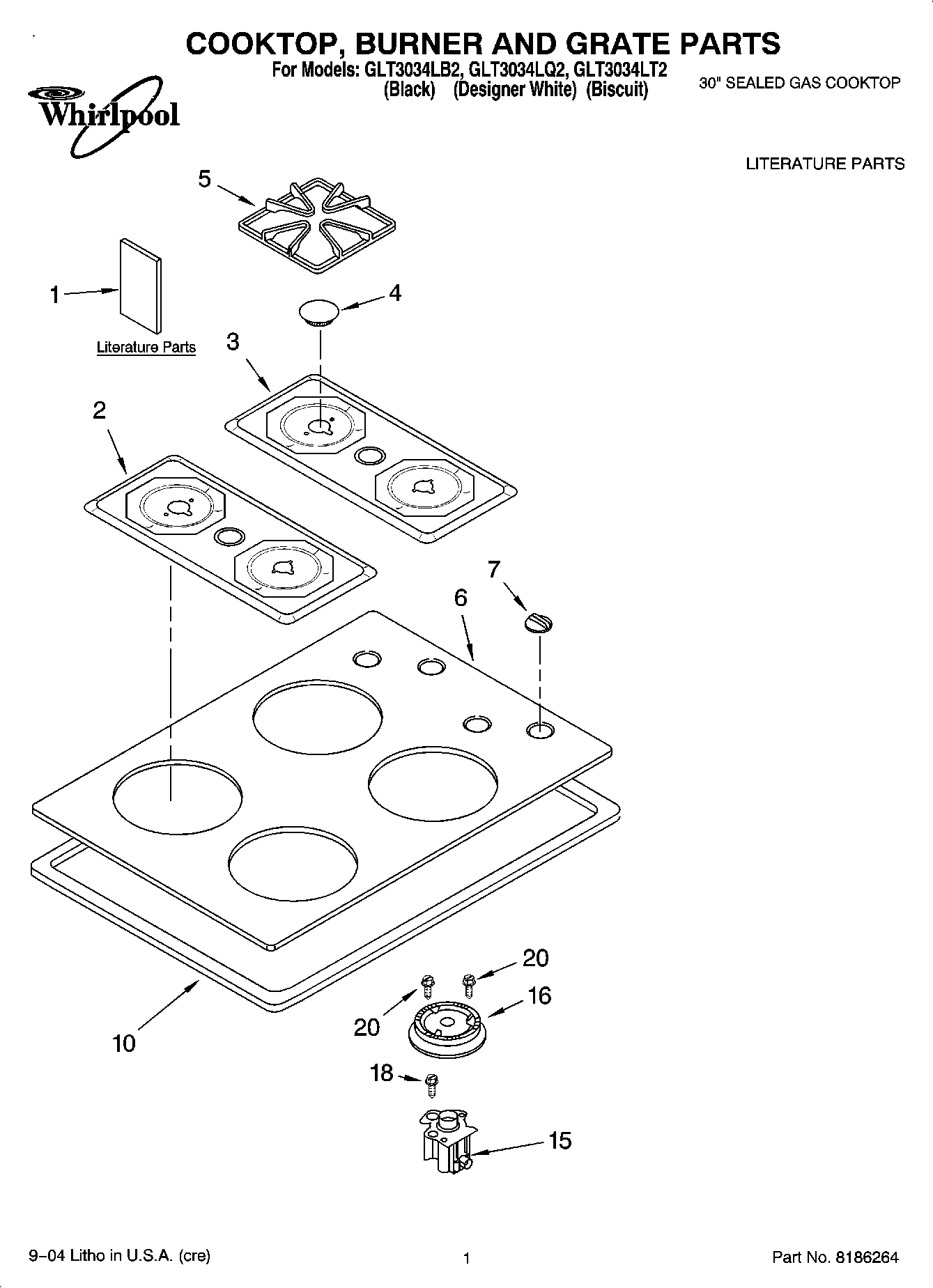

GLT3034LB2 01 – COOKTOP, BURNER AND GRATE PARTS

GLT3034LB2 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

GLT3034LB2 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Safe Cooking Tips
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
1L.P. Conversion Instructions
2Bowl, Left (Black)
2Bowl, Left (White)
2Bowl, Left (Biscuit)
3Bowl, Right (White)
3Bowl, Right (Biscuit)
3Bowl, Right (Black)
4WP8273343 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
4WP3191903 Whirlpool Burner Cap
4WP3191898 Whirlpool Surface Burner Cap Black
4WP8273344 Whirlpool Burner Cap
4Cap, Burner 6K (1) (Gray)
4WP3191905 Whirlpool Burner Cap
4WP3191901 Whirlpool Burner Cap
4WP8273345 Whirlpool Burner Cap
5Grate (4) (Espresso)
5WPW10447925 Whirlpool Grate Kit
6Cooktop, Glass (Black)
6Cooktop, Glass (White)
6Cooktop, Glass (BIscuit)
7Knob, Control (4) (Black)
7Knob, Control (4) (White)
7Knob, Control (4) (Biscuit)
10Seal, Foam
15WPW10155784 Whirlpool Orifice Holder
15WPW10155785 Whirlpool Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
16WP4455981 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
16WP4455980 Whirlpool Burner Head
20WP4449809 Whirlpool Screw
20Harness, Wire
20FOLLOWING PARTS NOT ILLUSTRATED
20WP3368921 Whirlpool Screw
204456626 Whirlpool Wire
204456627 Whirlpool Wire Harness
20WP3400806 Whirlpool Screw
