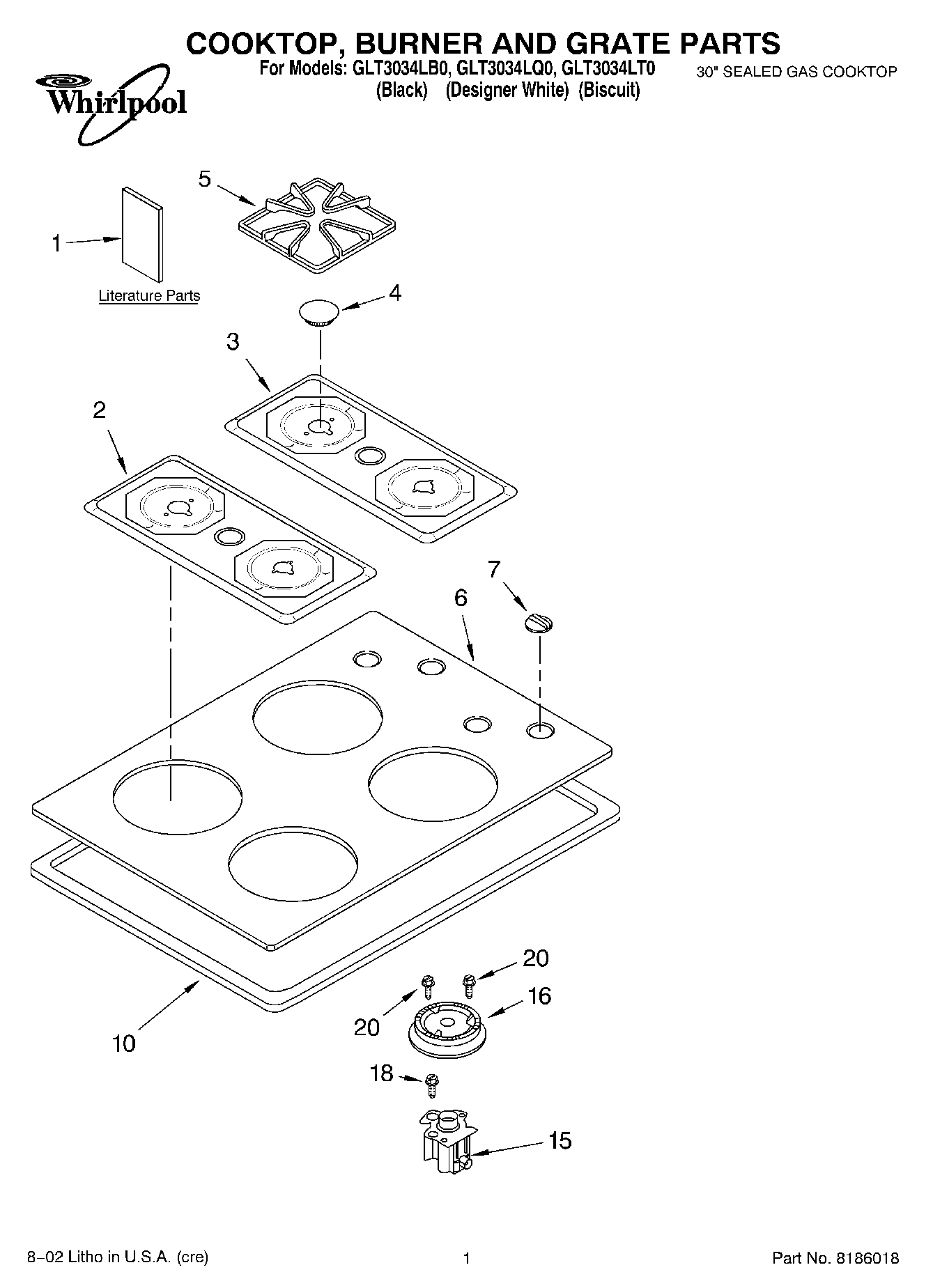

GLT3034LT0 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	LP Conversion Instructions
1	Wiring Diagram
2	Bowl, Left (Black)
2	Bowl, Left (White)
2	Bowl, Left (Biscuit)
3	Bowl, Right (White)
3	Bowl, Right (Black)
3	Bowl, Right (Biscuit)
4	WP3191905 Whirlpool Burner Cap
4	Cap, Burner 6K (1) (Gray)
4	WP3191904 Whirlpool Burner Cap
4	WP3191903 Whirlpool Burner Cap
4	WP3191901 Whirlpool Burner Cap
4	WP3191898 Whirlpool Surface Burner Cap Black
5	WP8053456 Whirlpool Burner Grate
5	WPW10447925 Whirlpool Grate Kit
6	Cooktop, Glass (White)
6	Cooktop, Glass (BIscuit)
6	Cooktop, Glass (Black)
7	Knob, Control (4) (White)
7	Knob, Control (4) (Black)
7	Knob, Control (4) (Biscuit)
10	Seal, Foam
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
16	WP4455980 Whirlpool Burner Head
16	WP4455981 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
20	15“
20	WP3368921 Whirlpool Screw
20	WP3400806 Whirlpool Screw
20	28“
20	WP4449809 Whirlpool Screw
