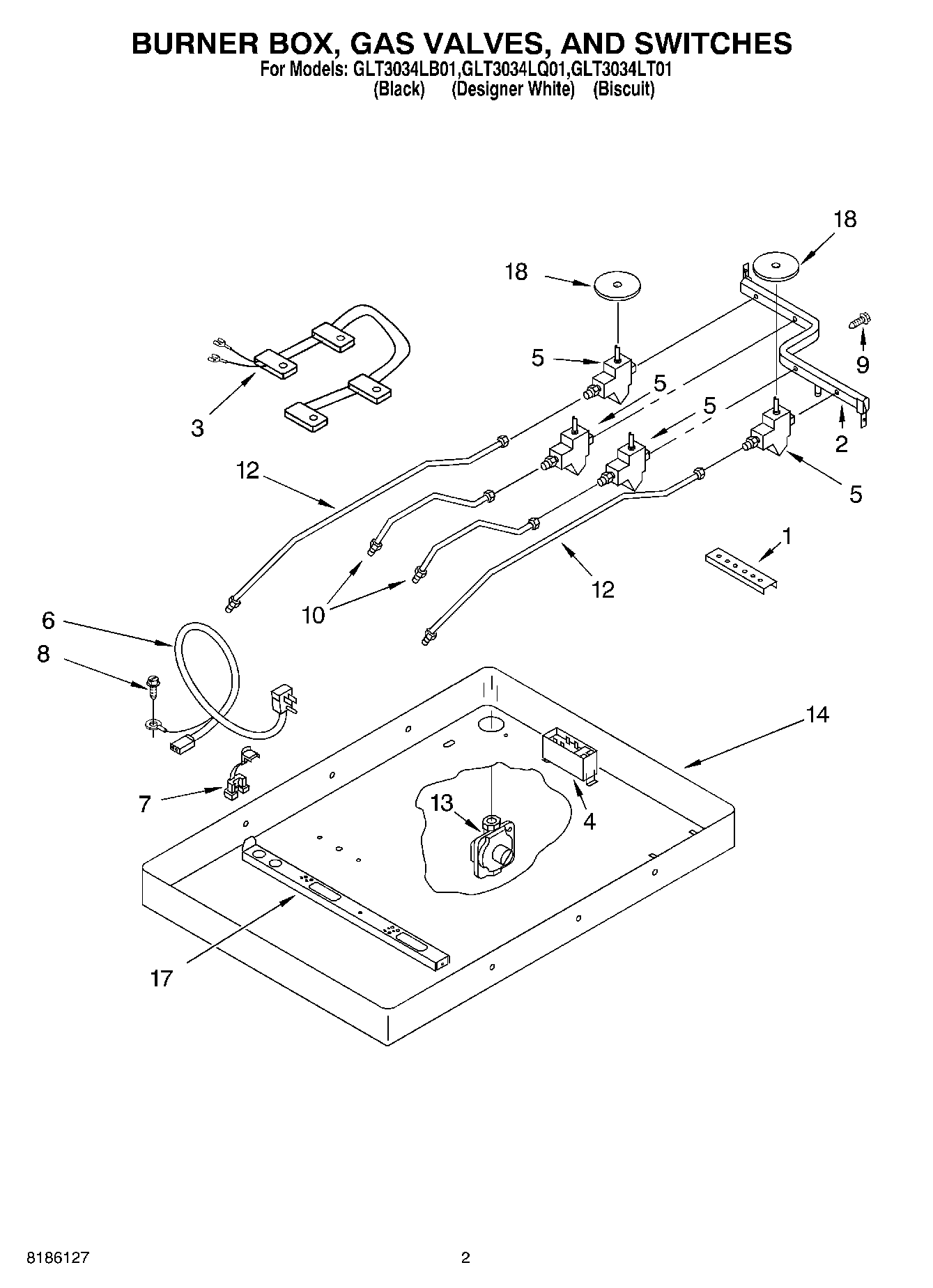

GLT3034LT01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

GLT3034LT01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

GLT3034LT01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
18186533 Whirlpool Hardware
1WP3400093 Whirlpool Screw
29759354 Whirlpool Oven Manifold Pipe
2W10491985 Whirlpool Screw
3Harness & Switches
4WPW10110491 Whirlpool Spark Module
4WP12990527 Whirlpool Microwave Screw
5Valve, Burner (Small (1))
5Valve, Burner (Large (3))
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9Bolt (Gas Valve)
10Tubing, Burner RR & RF
123191320 Whirlpool Oven Gas Tubing
13Regulator, Pressure
14Box, Burner
17WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
18Hardware Kit (Mounting)
18WP3188425 Whirlpool Seal Switch
18WP3192741 Whirlpool LP Conversion Kit
18Following Parts Not Illustrated and Optional Parts Not Included
