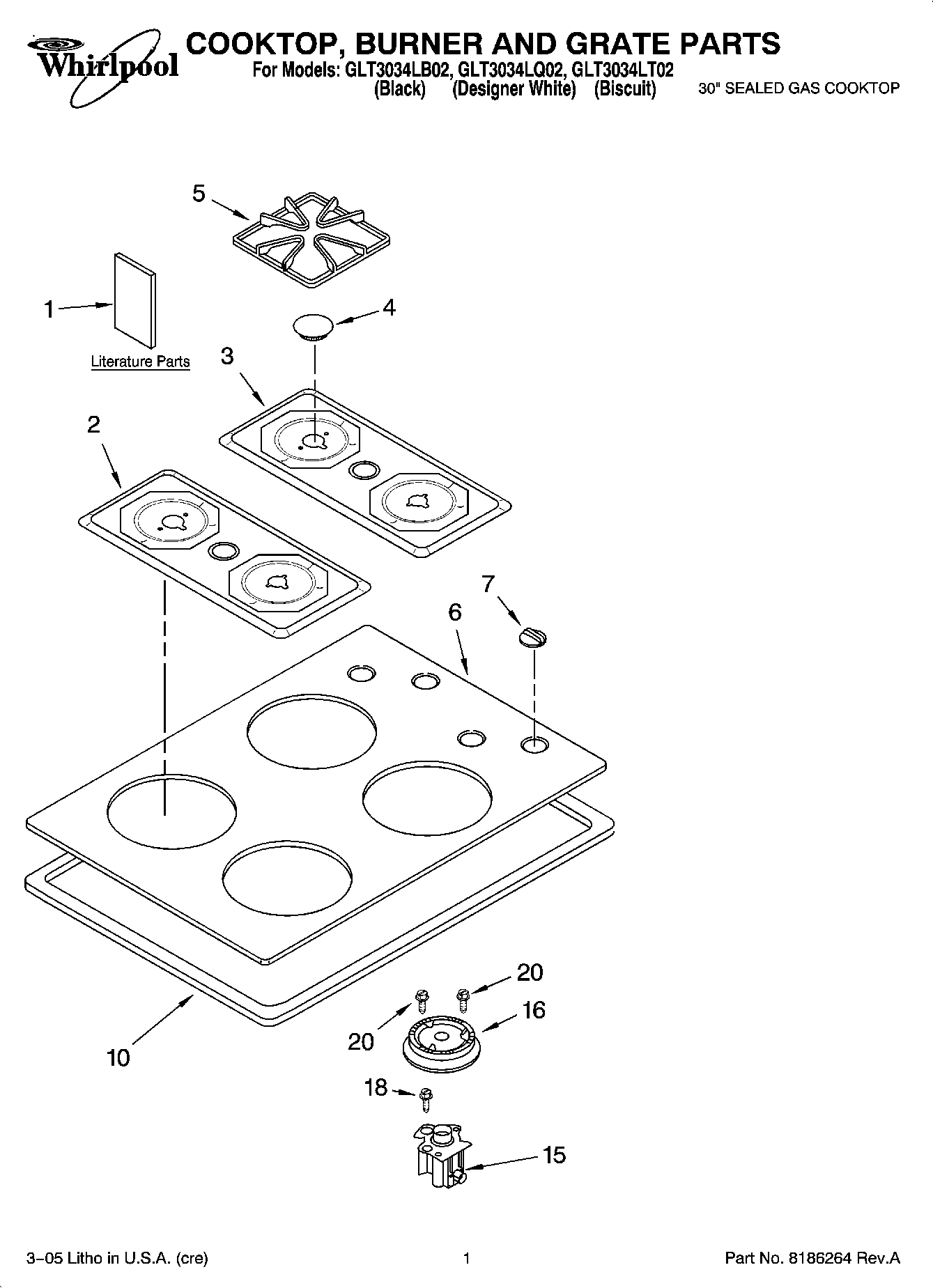

GLT3034LT02 01 – COOKTOP, BURNER AND GRATE PARTS

GLT3034LT02 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

GLT3034LT02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Wiring Diagram
1L.P. Conversion Instructions
1Use & Care Guide
1Safe Cooking Tips
1Installation Instructions
2Bowl, Left (Biscuit)
2Bowl, Left (White)
2Bowl, Left (Black)
3WP8273343 Whirlpool Burner Cap
3WP8273344 Whirlpool Burner Cap
3WP8273345 Whirlpool Burner Cap
36K (1)
39.5K (1)
3Cap, Burner 6K (1) (Gray)
3Bowl, Right (Black)
3Bowl, Right (White)
3Bowl, Right (Biscuit)
3WP3191898 Whirlpool Surface Burner Cap Black
3WP3191901 Whirlpool Burner Cap
3WP3191903 Whirlpool Burner Cap
312.5K (2)
3WP3191905 Whirlpool Burner Cap
3WP3191904 Whirlpool Burner Cap
5WPW10447925 Whirlpool Grate Kit
5Grate (4) (Espresso)
6Cooktop, Glass (White)
6Cooktop, Glass (BIscuit)
6Cooktop, Glass (Black)
7Knob, Control (4) (White)
7Knob, Control (4) (Black)
7Knob, Control (4) (Biscuit)
10Seal, Foam
15WPW10155785 Whirlpool Orifice Holder
15WPW10155784 Whirlpool Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
16WP4455981 Whirlpool Burner Head
16WP4455980 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
20WP4449809 Whirlpool Screw
20FOLLOWING PARTS NOT ILLUSTRATED
20WP3368921 Whirlpool Screw
20WP3400806 Whirlpool Screw
204456627 Whirlpool Wire Harness
204456626 Whirlpool Wire
20Harness, Wire
