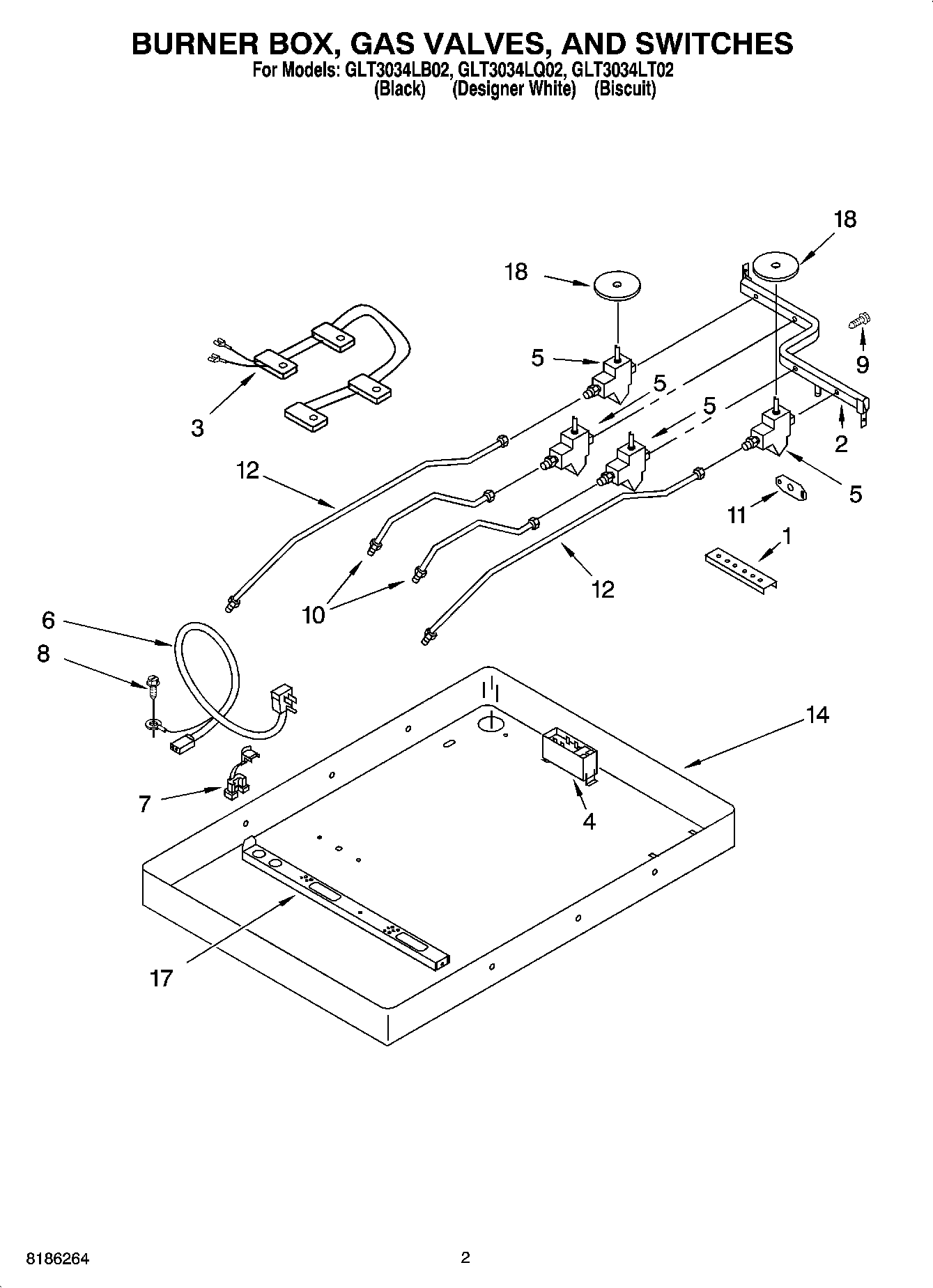

GLT3034LT02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
18186533 Whirlpool Hardware
1WP3400093 Whirlpool Screw
29759354 Whirlpool Oven Manifold Pipe
2W10491985 Whirlpool Screw
3WP4456905 Whirlpool Wire Harness
4WP12990527 Whirlpool Microwave Screw
4WPW10110491 Whirlpool Spark Module
5WP4456817 Whirlpool Burner Valve
5WP4456816 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9WP3186217 Whirlpool Screw
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
123191320 Whirlpool Oven Gas Tubing
14Box, Burner
17W10203756 Whirlpool Support
17WP4449809 Whirlpool Screw
18Hardware Kit (Mounting)
18WP3188425 Whirlpool Seal Switch
18WP3192741 Whirlpool LP Conversion Kit
18Following Parts Not Illustrated and Optional Parts Not Included
