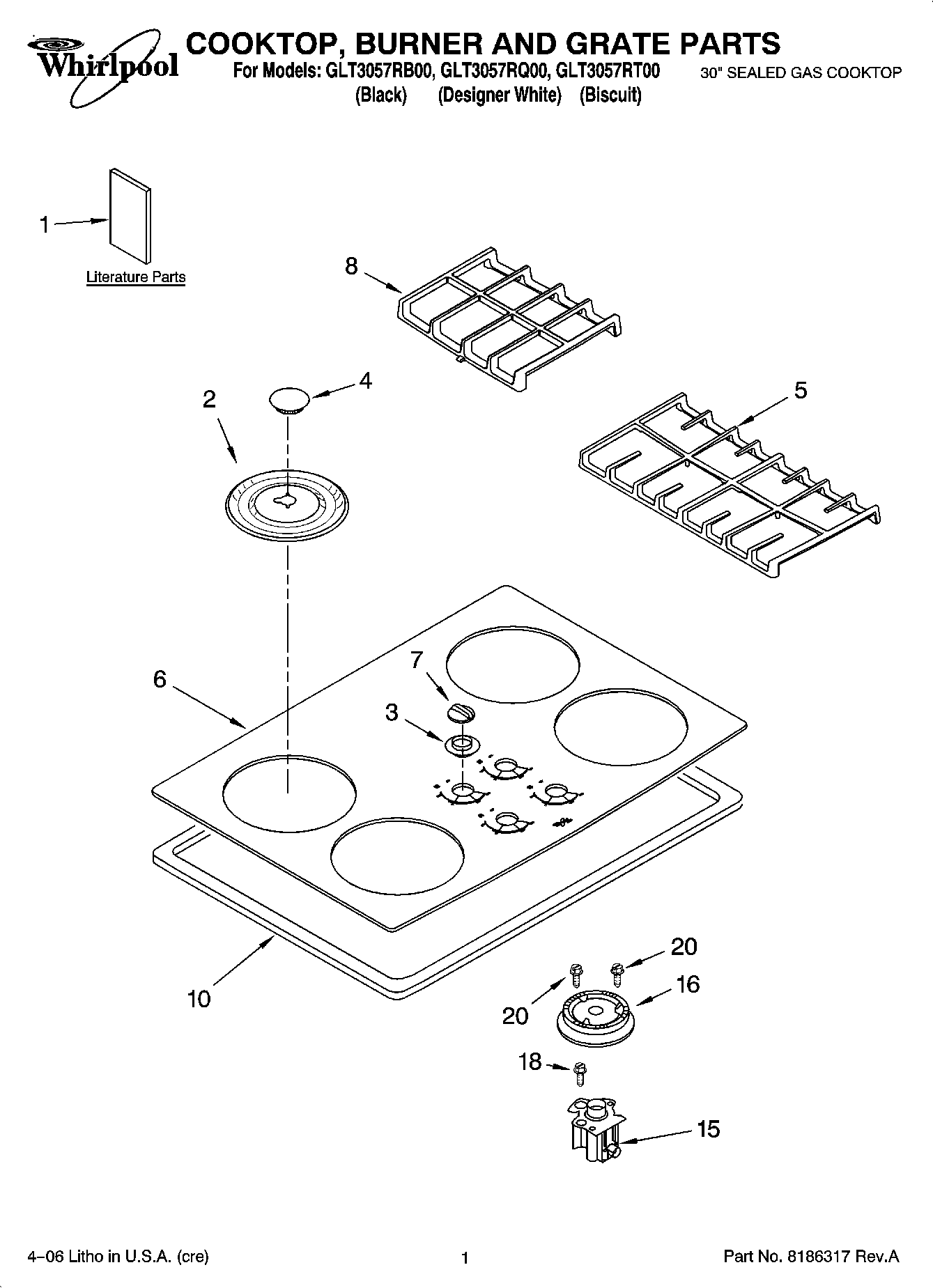

GLT3057RB00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1LP Conversion Instructions
1Use & Care Guide
1Installation Instructions
1Safe Cooking Tips
2Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
2Bowl, Burner 9K, 12K (LR, RF, LF) (White)
2Bowl, Burner 6K (RR) (White)
2Bowl, Burner 6K (RR) (Black)
2Bowl, Burner 9K,12K (LR, RF, LF) (Black)
2Bowl, Burner 6K (RR) (Biscuit)
3W10854242 Whirlpool Grommet
3WP3180081 Whirlpool Grommet
3Grommet, Glass (Biscuit)
48286155EP Whirlpool Burner Cap
4Cap, Burner 6K (RR) (Espresso)
4WP8286154CG Whirlpool Burner Cap
4WP8286155CG Whirlpool Burner Cap
4Cap, Burner 9.5K (LR) (Espresso)
4WP8286153CG Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
4WP8286155CB Whirlpool Burner Cap
5Grate Left (Espresso)
5Grate Left (Cumberland Gray)
5Grate Right (Cumberland Gray)
5Grate Right (Espresso)
5Grate Right Hand (Black)
5Grate Left Hand (Black)
6Cooktop, Glass (White)
6W11399418 Whirlpool Cooktop
7WP8286058BL Whirlpool Knob
78286058WH Whirlpool Knob
7WPL 8286058BT
8WPL 8285893EP
8WPL 8285893CG
8Grate,
10Seal, Foam
15WPW10128448 Whirlpool Igniter and Orifice Holder
15WPW10128451 Whirlpool Orifice Holder
15WPW10128450 Whirlpool Orifice Holder
16WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
16WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
204456627 Whirlpool Wire Harness
20WP3368921 Whirlpool Screw
20WP3400806 Whirlpool Screw
20WPL ARI66810A3
20WPL ARI66809A3
204456626 Whirlpool Wire
20WP4449809 Whirlpool Screw
