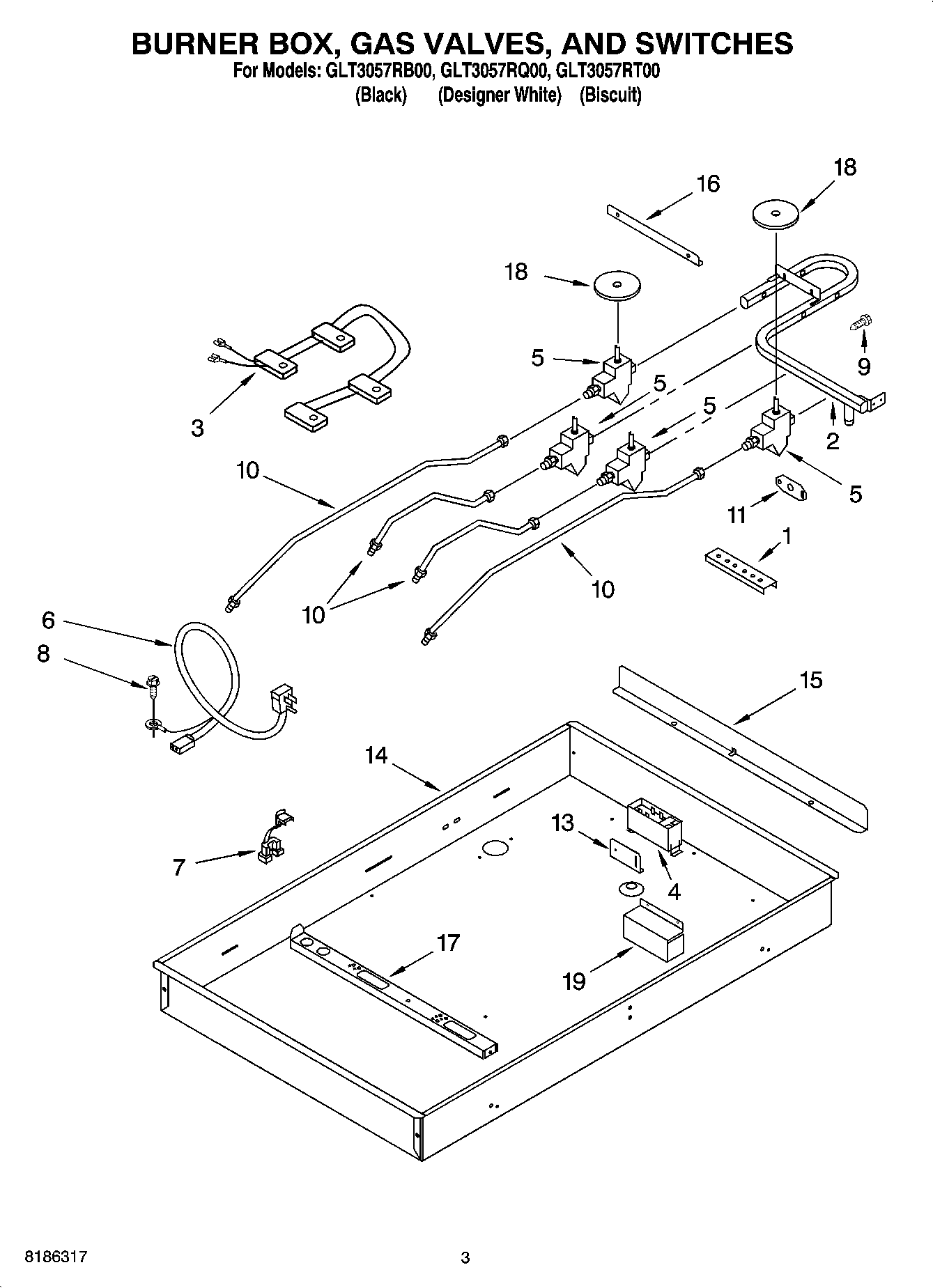

GLT3057RB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

GLT3057RB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

GLT3057RB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
18186533 Whirlpool Hardware
1WP3400093 Whirlpool Screw
2Pipe, Manifold
2W10491985 Whirlpool Screw
3WP4456905 Whirlpool Wire Harness
4WPW10110491 Whirlpool Spark Module
5Valve, Gas Burner (Yellow)
5Valve, Gas Burner (White)
5WP4456817 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
9WP3186217 Whirlpool Screw
10Tubing, Burner (RR)
103191324 Whirlpool Oven Gas Tubing
10Tubing, Burner (LR)
10Tubing, Burner (LF)
113192491 Whirlpool Support Bracket
134455837 Whirlpool Oven Mounting Bracket
14Box, Burner
15WP3177991 Whirlpool Screw
153191462 Whirlpool Oven Heat Shield
16WP12990527 Whirlpool Microwave Screw
169759145 Whirlpool Oven Support Bracket
17WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
17Rail, Center
18WP3188425 Whirlpool Seal Switch
19Hardware Kit (Mounting)
19WP8286320 Whirlpool Spud Orifice
19Following Parts Not Illustrated and Optional Parts Not Included
198285788 Whirlpool Oven Heat Shield
