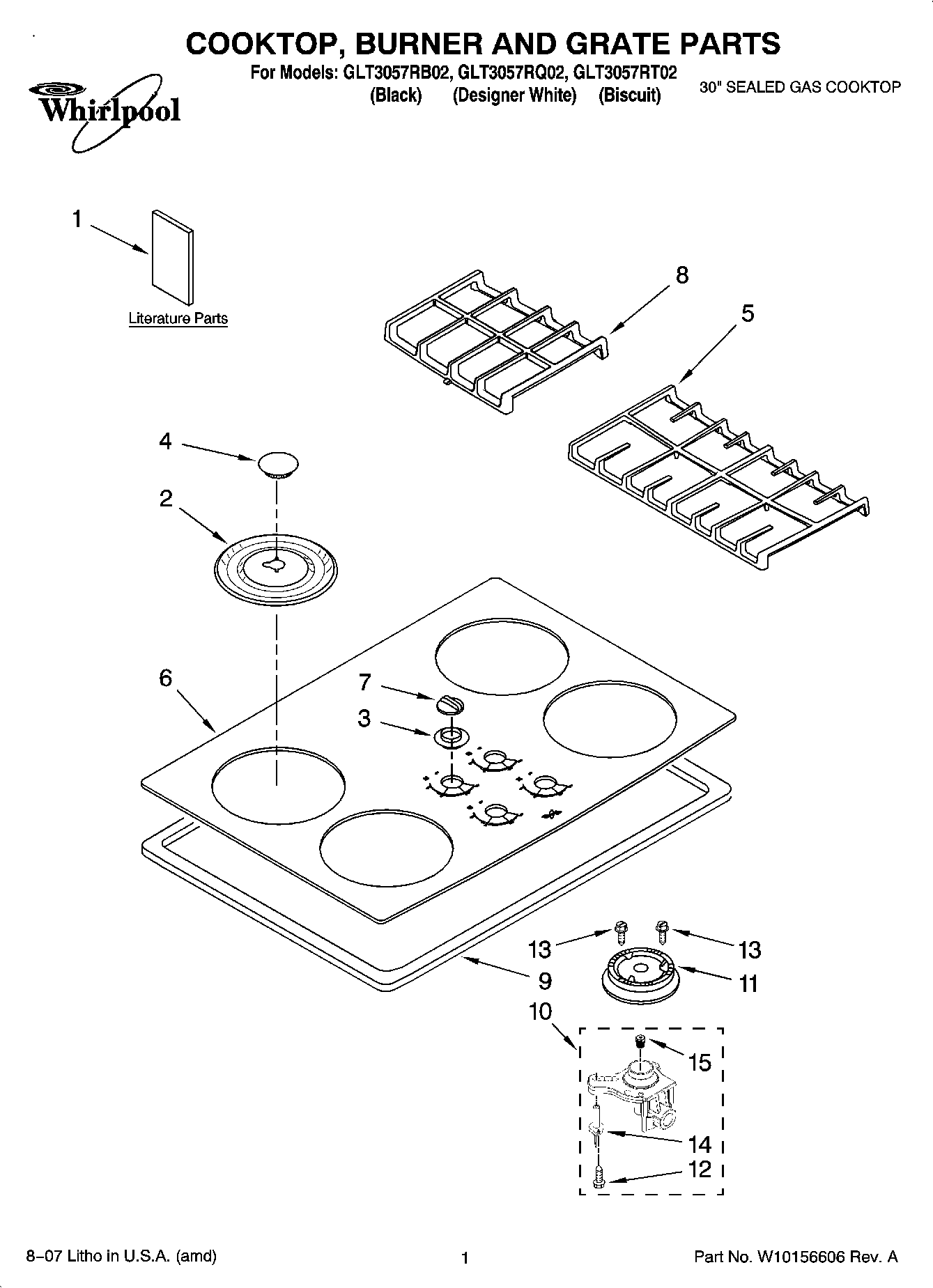

GLT3057RB02 01 – COOKTOP, BURNER AND GRATE PARTS

GLT3057RB02 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

GLT3057RB02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
WP4449809 Whirlpool Screw
WPL ARI66814A3
WP3400806 Whirlpool Screw
4456626 Whirlpool Wire
4456627 Whirlpool Wire Harness
1L.P. Conversion Instructions
1Use & Care Guide
1Installation Instructions
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Bowl, Burner 6K (RR) (Biscuit)
2Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
2Bowl, Burner 6K (RR) (White)
2Bowl, Burner 6K (RR) (Black)
2Bowl, Burner 9K, 12K (LR, RF, LF) (White)
2Bowl, Burner 9K,12K (LR, RF, LF) (Black)
3Grommet, Glass (Biscuit)
3WP3180081 Whirlpool Grommet
3W10854242 Whirlpool Grommet
4WP8286155CB Whirlpool Burner Cap
4Cap, Burner 6K (RR) (Espresso)
4WP8286154CG Whirlpool Burner Cap
4Cap, Burner 9.5K (LR) (Espresso)
4WP8286153CG Whirlpool Burner Cap
4WP8286155CG Whirlpool Burner Cap
48286155EP Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
5Grate Left (Cumberland Gray)
5Grate Right (Espresso)
5Grate Right (Cumberland Gray)
5Grate Right (Coal Matte Black)
5Grate Left (Coal Matte Black)
5Grate Left (Espresso)
6W11399418 Whirlpool Cooktop
6Cooktop, Glass (White)
7WPL 8286058BT
7WP8286058BL Whirlpool Knob
78286058WH Whirlpool Knob
8WPL 8285893EP
8WPL 8285893CG
8WPL 8285893CB
9Seal, Foam
10WPW10128450 Whirlpool Orifice Holder
10WPW10128448 Whirlpool Igniter and Orifice Holder
10WPW10128451 Whirlpool Orifice Holder
11WPW10406243 Whirlpool Burner Head Auxiliary 6K
11WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
11WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
12WP8273062 Whirlpool Screw
13WP3368921 Whirlpool Screw
14WP9782116 Whirlpool Surface Igniter
15WP3192523 Whirlpool Orifice
15WP3192529 Whirlpool Orifice Assembly
158286551 Whirlpool Oven Orifice
