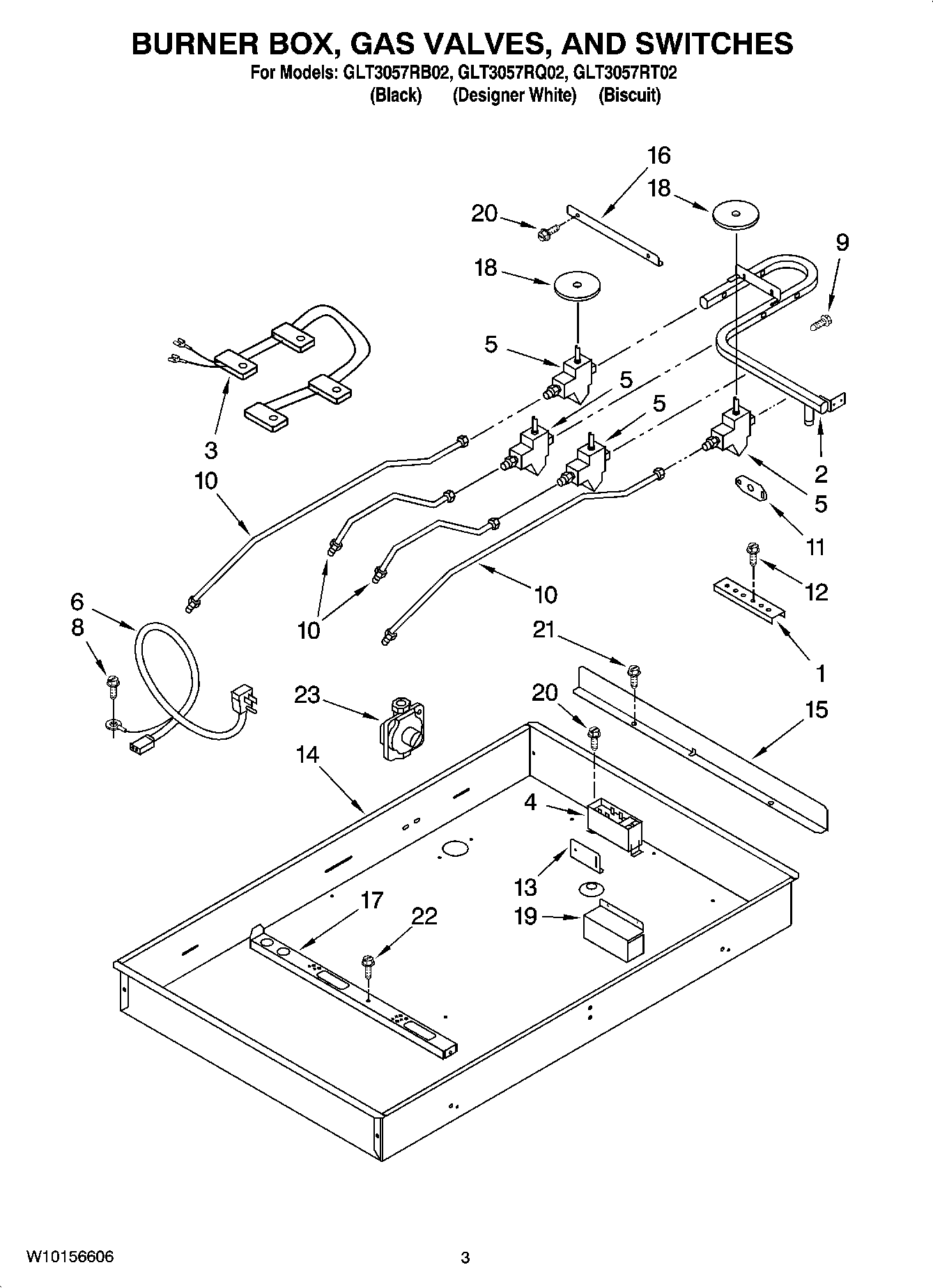

GLT3057RB02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

GLT3057RB02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

GLT3057RB02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
18186533 Whirlpool Hardware
2Pipe, Manifold
2W10491985 Whirlpool Screw
3WP4456905 Whirlpool Wire Harness
4WPW10110491 Whirlpool Spark Module
5Valve, Gas Burner (White)
5Valve, Gas Burner (Yellow)
5WP4456817 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
9WP3186217 Whirlpool Screw
10Tubing, Burner (RR)
103191324 Whirlpool Oven Gas Tubing
10Tubing, Burner (LR)
10Tubing, Burner (LF)
113192491 Whirlpool Support Bracket
12WP3400093 Whirlpool Screw
134455837 Whirlpool Oven Mounting Bracket
14Box, Burner
153191462 Whirlpool Oven Heat Shield
169759145 Whirlpool Oven Support Bracket
17Rail, Center
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
198285788 Whirlpool Oven Heat Shield
20WP12990527 Whirlpool Microwave Screw
21WP3177991 Whirlpool Screw
22WP4449809 Whirlpool Screw
23WP8286320 Whirlpool Spud Orifice
23W11170853 Whirlpool Regulator Assembly
23Following Parts Not Illustrated and Optional Parts Not Included
