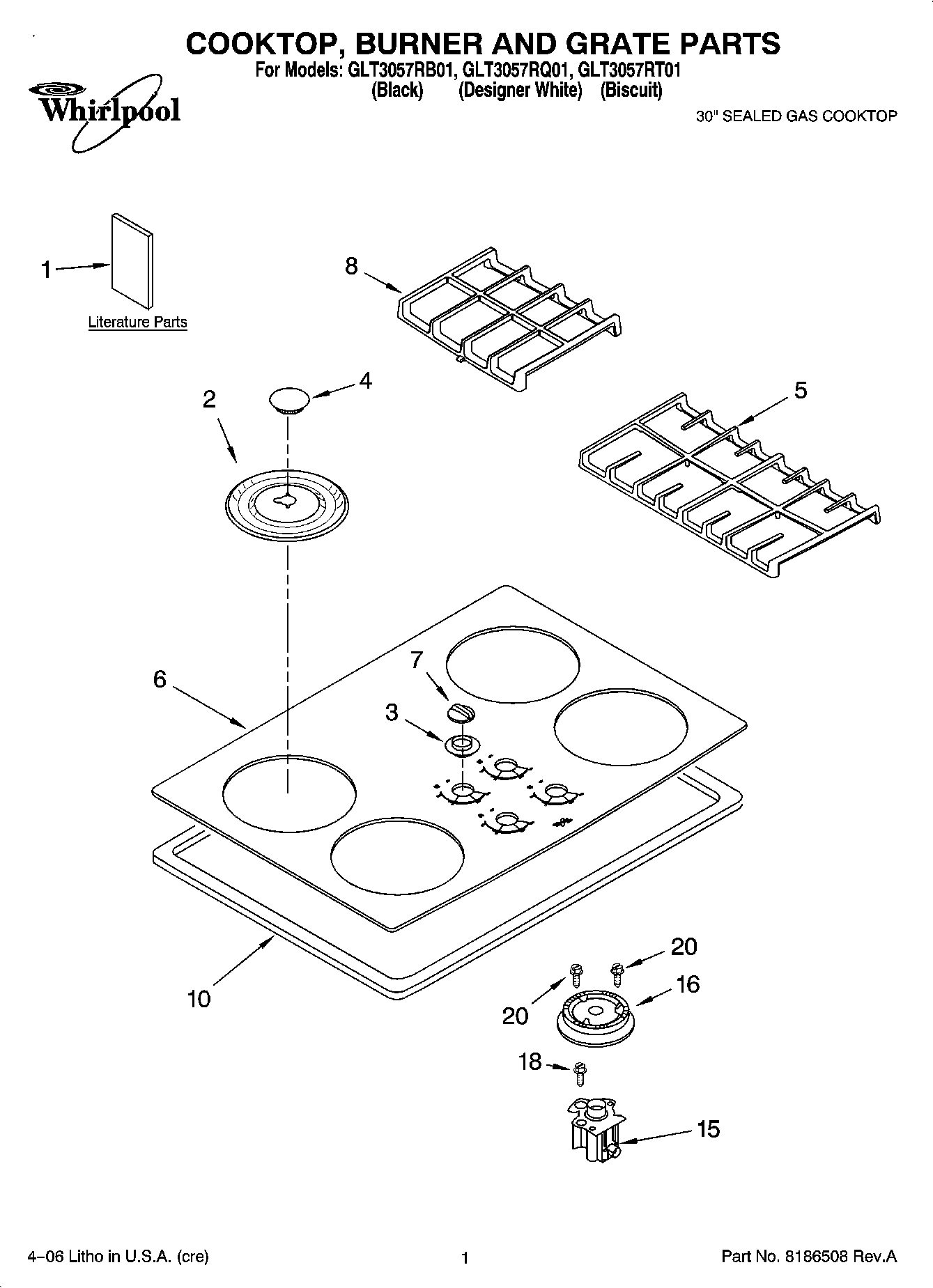

GLT3057RQ01 01 – COOKTOP, BURNER AND GRATE PARTS

GLT3057RQ01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

GLT3057RQ01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Use & Care Guide
1Installation Instructions
1Safe Cooking Tips
1L.P. Conversion Instructions
2Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
2Bowl, Burner 6K (RR) (White)
2Bowl, Burner 9K,12K (LR, RF, LF) (Black)
2Bowl, Burner 6K (RR) (Black)
2Bowl, Burner 6K (RR) (Biscuit)
2Bowl, Burner 9K, 12K (LR, RF, LF) (White)
3WP3180081 Whirlpool Grommet
3W10854242 Whirlpool Grommet
3Grommet, Glass (Biscuit)
4WP8286153CG Whirlpool Burner Cap
4WP8286154CG Whirlpool Burner Cap
4WP8286155CG Whirlpool Burner Cap
4Cap, Burner 6K (RR) (Espresso)
4WP8286155CB Whirlpool Burner Cap
48286155EP Whirlpool Burner Cap
4Cap, Burner 9.5K (LR) (Espresso)
4WP8286153CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
5Grate Right (Cumberland Gray)
5Grate Left (Espresso)
5Grate Left (Cumberland Gray)
5Grate Left (Coal Matte Black)
5Grate Right (Coal Matte Black)
5Grate Right (Espresso)
6W11399418 Whirlpool Cooktop
6Cooktop, Glass (White)
78286058WH Whirlpool Knob
7WPL 8286058BT
7WP8286058BL Whirlpool Knob
8WPL 8285893EP
8WPL 8285893CG
8WPL 8285893CB
10Seal, Foam
15WPW10128451 Whirlpool Orifice Holder
15WPW10128450 Whirlpool Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
16WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
16WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
20WP3400806 Whirlpool Screw
20WP3368921 Whirlpool Screw
204456627 Whirlpool Wire Harness
20WP4449809 Whirlpool Screw
204456626 Whirlpool Wire
20WPL ARI66822A5
