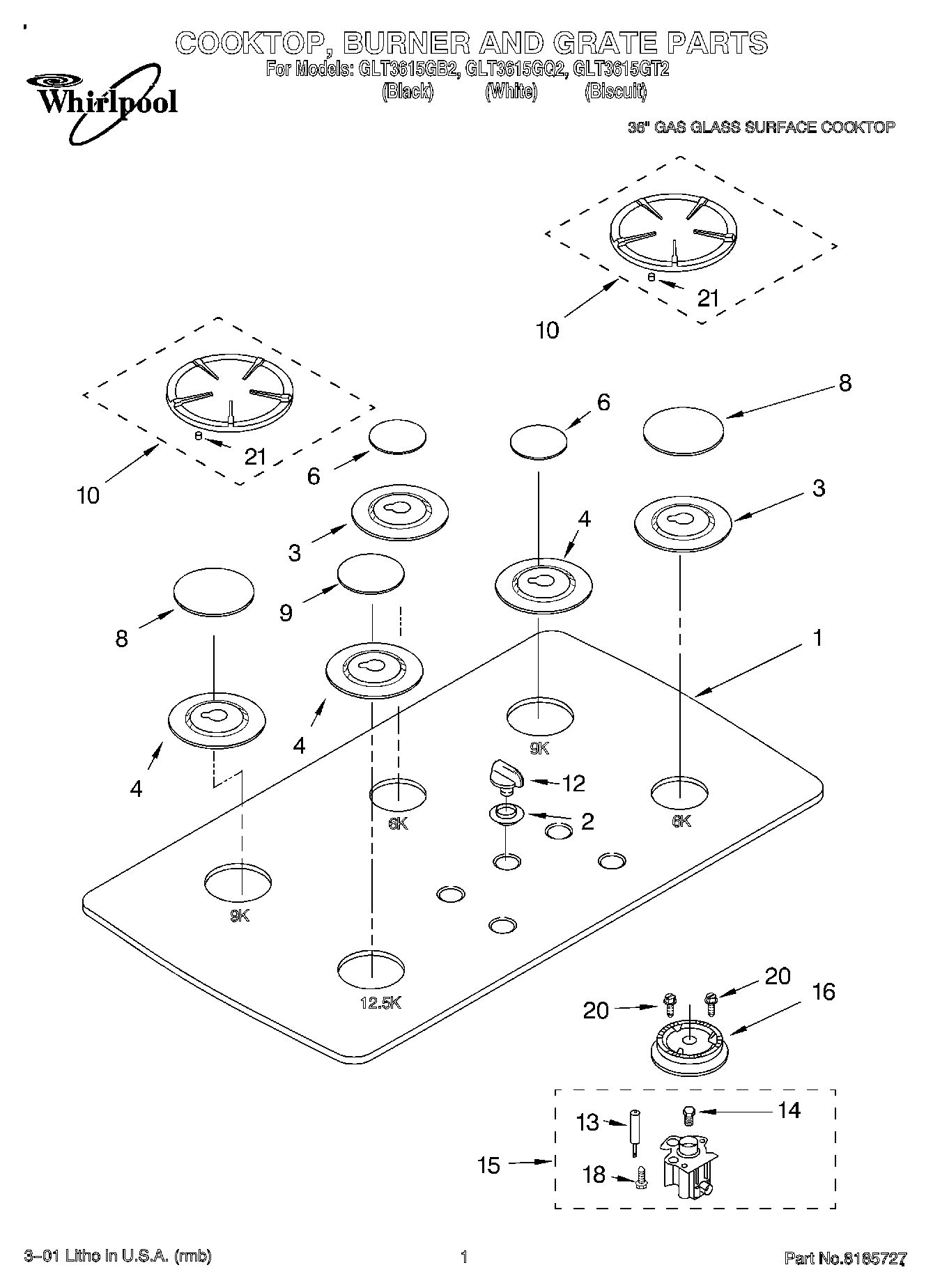

GLT3615GQ2 01 – SECTION

Products

Position	Product
1	Cooktop, Glass (White)
1	Cooktop, Glass (Black)
1	Cooktop, Glass (Biscuit)
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
2	Grommet, Glass (Biscuit)
3	Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
3	Bowl, Burner 9K,12K (LR, RF, LF) (Black)
3	Bowl, Burner 9K, 12K (LR, RF, LF) (White)
4	Bowl, Burner 6K (RR) (White)
4	Bowl, Burner 6K (RR) (Biscuit)
4	Bowl, Burner 6K (RR) (Black)
6	WP3191898 Whirlpool Surface Burner Cap Black
6	Cap, Burner 6K (1) (Gray)
8	WP3191901 Whirlpool Burner Cap
8	WP3191903 Whirlpool Burner Cap
9	WP3191904 Whirlpool Burner Cap
9	WP3191905 Whirlpool Burner Cap
10	Grate, Burner (Mouse Gray)
10	Grate, Burner (Black)
12	Knob, Control (4) (White)
12	Knob, Control (4) (Black)
12	Knob, Control (4) (Biscuit)
13	WP9754215 Whirlpool Surface Igniter
14	WP3192523 Whirlpool Orifice
14	WP9753930 Whirlpool Orifice
14	Orifice (RF)
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455980 Whirlpool Burner Head
16	WP4455981 Whirlpool Burner Head
18	WP8273062 Whirlpool Screw
20	WP3368921 Whirlpool Screw
21	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
