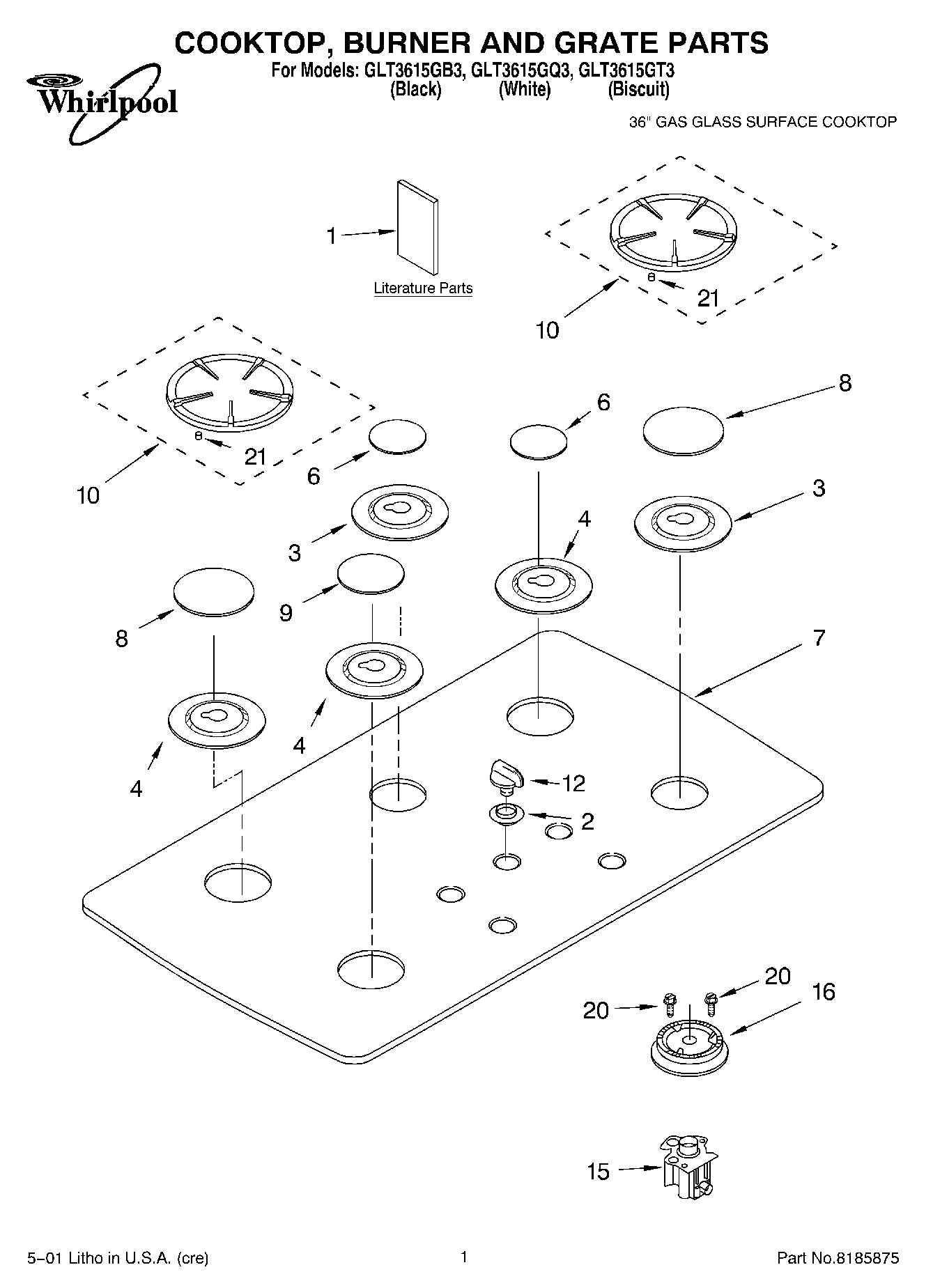

GLT3615GT3 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1LITERATURE PARTS (Wiring Diagram)
1Use And Care Guide
1LP Conversion Instructions
2Grommet, Glass (Biscuit)
2W10854242 Whirlpool Grommet
2WP3180081 Whirlpool Grommet
3Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
3Bowl, Burner 9K, 12K (LR, RF, LF) (White)
3Bowl, Burner 9K,12K (LR, RF, LF) (Black)
4Bowl, Burner 6K (RR) (Biscuit)
4Bowl, Burner 6K (RR) (White)
4Bowl, Burner 6K (RR) (Black)
6WP3191898 Whirlpool Surface Burner Cap Black
6Cap, Burner 6K (1) (Gray)
7Cooktop, Glass (Biscuit)
7Cooktop, Glass (White)
7Cooktop, Glass (Black)
8WP3191901 Whirlpool Burner Cap
8WP3191903 Whirlpool Burner Cap
9WP3191904 Whirlpool Burner Cap
9WP3191905 Whirlpool Burner Cap
10Grate, Burner (Mouse Gray)
10Grate, Burner (Black)
12Knob, Control (4) (Black)
12Knob, Control (4) (White)
12Knob, Control (4) (Biscuit)
15814513 Whirlpool Top Burner
15Holder, Orifice (Includes 13 & 14) (LF 12K)
15Holder, Orifice (Includes 13 & 14) (RF 6K)
16WP4455981 Whirlpool Burner Head
16WP4455980 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
20WP4449809 Whirlpool Screw
21814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
