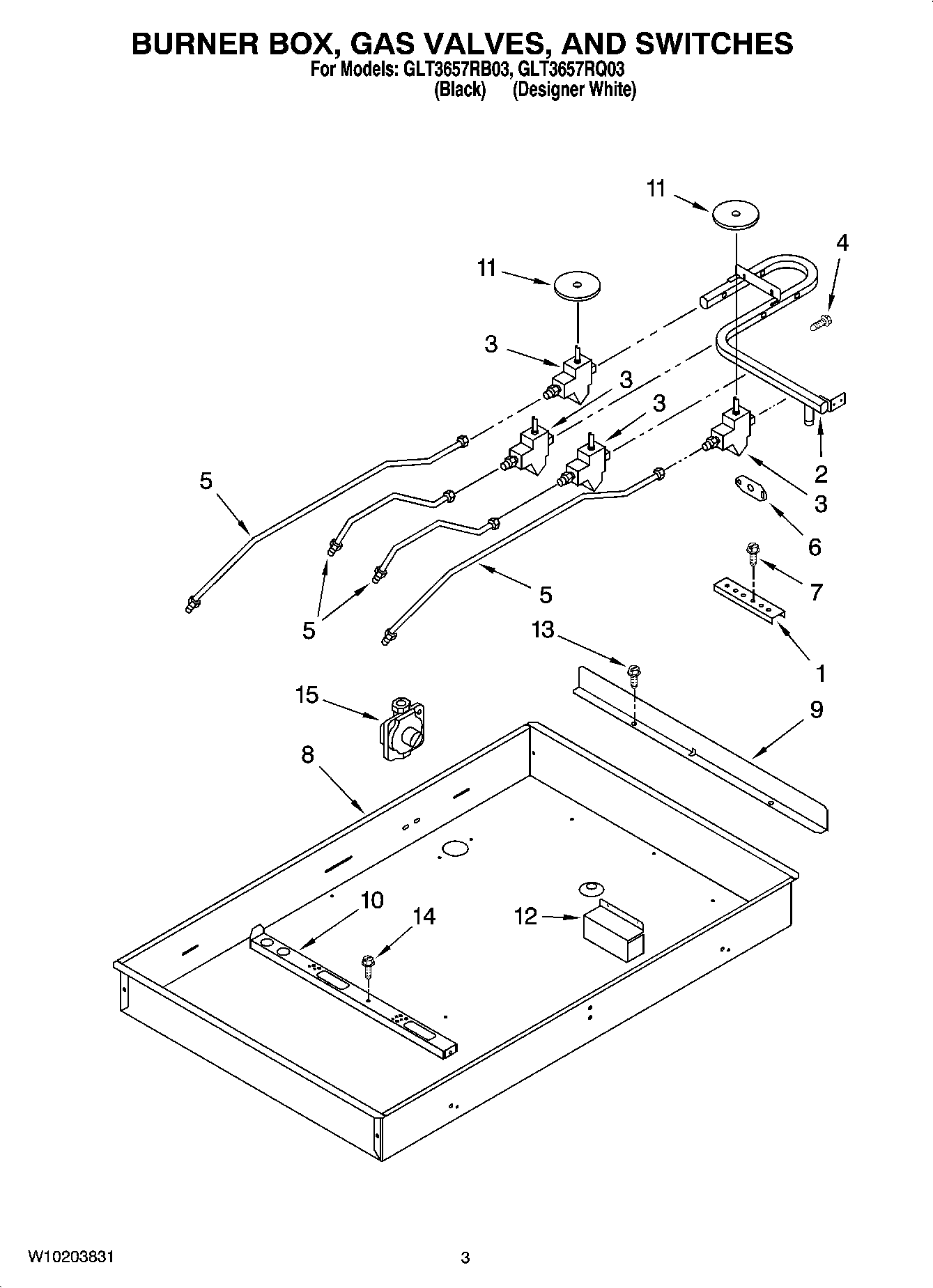

GLT3657RB03 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Following Parts Not Illustrated and Optional Parts Not Included
WP4456901 Whirlpool Wire Harness
W10392007 Whirlpool Power Cord
8285402 Whirlpool Oven Grounding Wire
WP8286320 Whirlpool Spud Orifice
18186533 Whirlpool Hardware
28285751 Whirlpool Oven Manifold Pipe
2W10491985 Whirlpool Screw
3Valve, Gas Burner (Yellow)
3Valve, Gas Burner (White)
3WP4456817 Whirlpool Burner Valve
4WP3186217 Whirlpool Screw
5Tubing, Gas Burner (Center)
58286403 Whirlpool Oven Gas Tubing
5Tubing, Gas Burner (RR)
5Tubing, Gas Burner (LR)
5Tubing, Gas Burner (RF)
63192491 Whirlpool Support Bracket
7WP3400093 Whirlpool Screw
8Burner Box
93191462 Whirlpool Oven Heat Shield
10Rail, Center
10W10203756 Whirlpool Support
11WP3188425 Whirlpool Seal Switch
128285789 Whirlpool Heat Shield
13WP3177991 Whirlpool Screw
14WP4449809 Whirlpool Screw
15Regulator, Pressure
