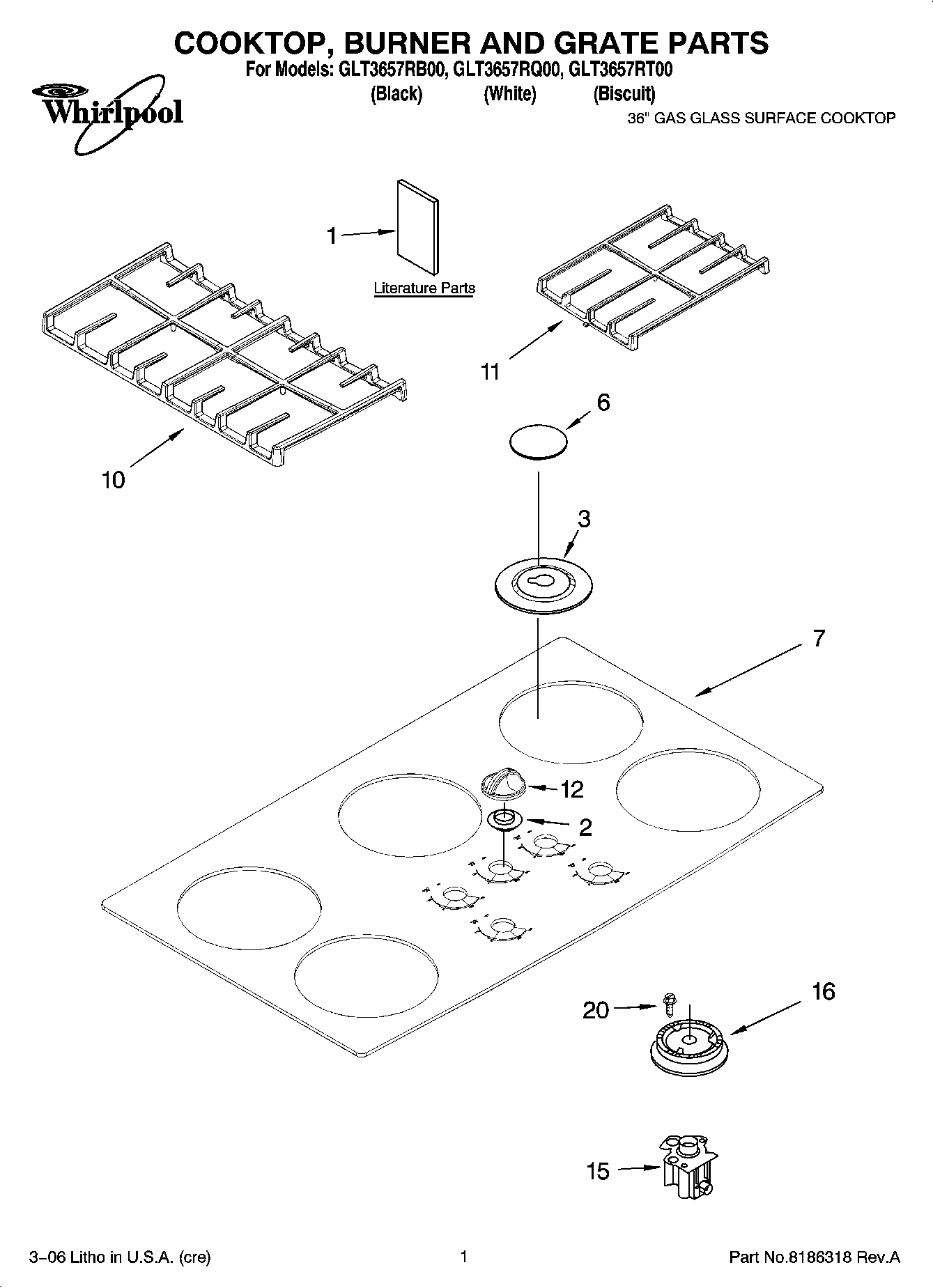

GLT3657RQ00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Safe Cooking Tips
1Wiring Diagram
1LP Conversion Instructions
1Use & Care Guide
1Installation Instructions
2Grommet, Glass (Biscuit)
2W10854242 Whirlpool Grommet
2WP3180081 Whirlpool Grommet
3Bowl, Burner 6K (RR) (Biscuit)
3Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
3Bowl, Burner 6K (RR) (White)
3Bowl, Burner 6K (RR) (Black)
3Bowl, Burner 9K, 12K (LR, RF, LF) (White)
3Bowl, Burner 9K,12K (LR, RF, LF) (Black)
6WP8286153CG Whirlpool Burner Cap
6WP8286155CG Whirlpool Burner Cap
6Cap, Burner 6K (RR) (Espresso)
6Cap, Burner 9.5K (LR) (Espresso)
6WP8286154CG Whirlpool Burner Cap
68286155EP Whirlpool Burner Cap
6WP8286155CB Whirlpool Burner Cap
6WP8286154CB Whirlpool Burner Cap
6WP8286153CB Whirlpool Burner Cap
7Cooktop, Glass (Biscuit)
7Cooktop, Glass (White)
7Cooktop, Glass (Black)
10Grate Right (Cumberland Gray)
10Grate Left Hand (Black)
10Grate Left (Espresso)
10Grate Left (Cumberland Gray)
10Grate Right Hand (Black)
10Grate Right (Espresso)
11Gr
11Grate, Center (Cumberland Gray)
11Grate, Center (Black)
128286058WH Whirlpool Knob
12WP8286058BL Whirlpool Knob
12WPL 8286058BT
15WPW10128451 Whirlpool Orifice Holder
15WPW10128450 Whirlpool Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
16WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
16WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
20WP3368921 Whirlpool Screw
