GLT3657RQ05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

GLT3657RQ05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

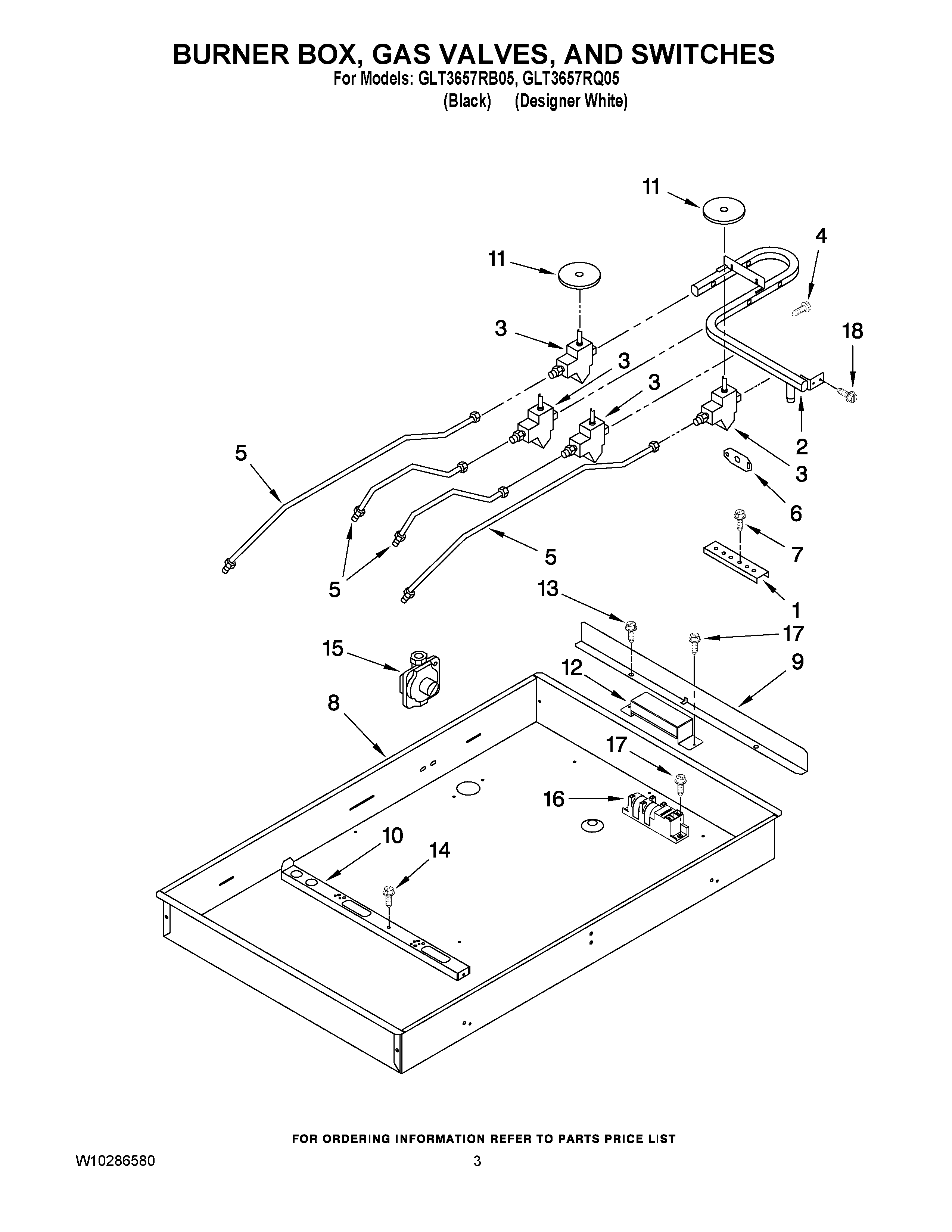

GLT3657RQ05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIWP8286320 Whirlpool Spud Orifice
NIW10392007 Whirlpool Power Cord
NIWP4456901 Whirlpool Wire Harness
NI8285402 Whirlpool Oven Grounding Wire
18186533 Whirlpool Hardware
28285751 Whirlpool Oven Manifold Pipe
3WP4456817 Whirlpool Burner Valve
3Valve, Gas Burner (White)
3Valve, Gas Burner (Yellow)
4BOLT, VALVE (4)
58286403 Whirlpool Oven Gas Tubing
5Tubing, Gas Burner (RR)
5Tubing, Gas Burner (LR)
5Tubing, Gas Burner (Center)
5Tubing, Gas Burner (RF)
63192491 Whirlpool Support Bracket
7WP3400093 Whirlpool Screw
8Burner Box
93191462 Whirlpool Oven Heat Shield
10W10203756 Whirlpool Support
10Rail, Center
11WP3188425 Whirlpool Seal Switch
128285789 Whirlpool Heat Shield
13WP3177991 Whirlpool Screw
14WP4449809 Whirlpool Screw
15W11170853 Whirlpool Regulator Assembly
16WPW10110486 Whirlpool Spark Module
17WP12990527 Whirlpool Microwave Screw
18SCREW
