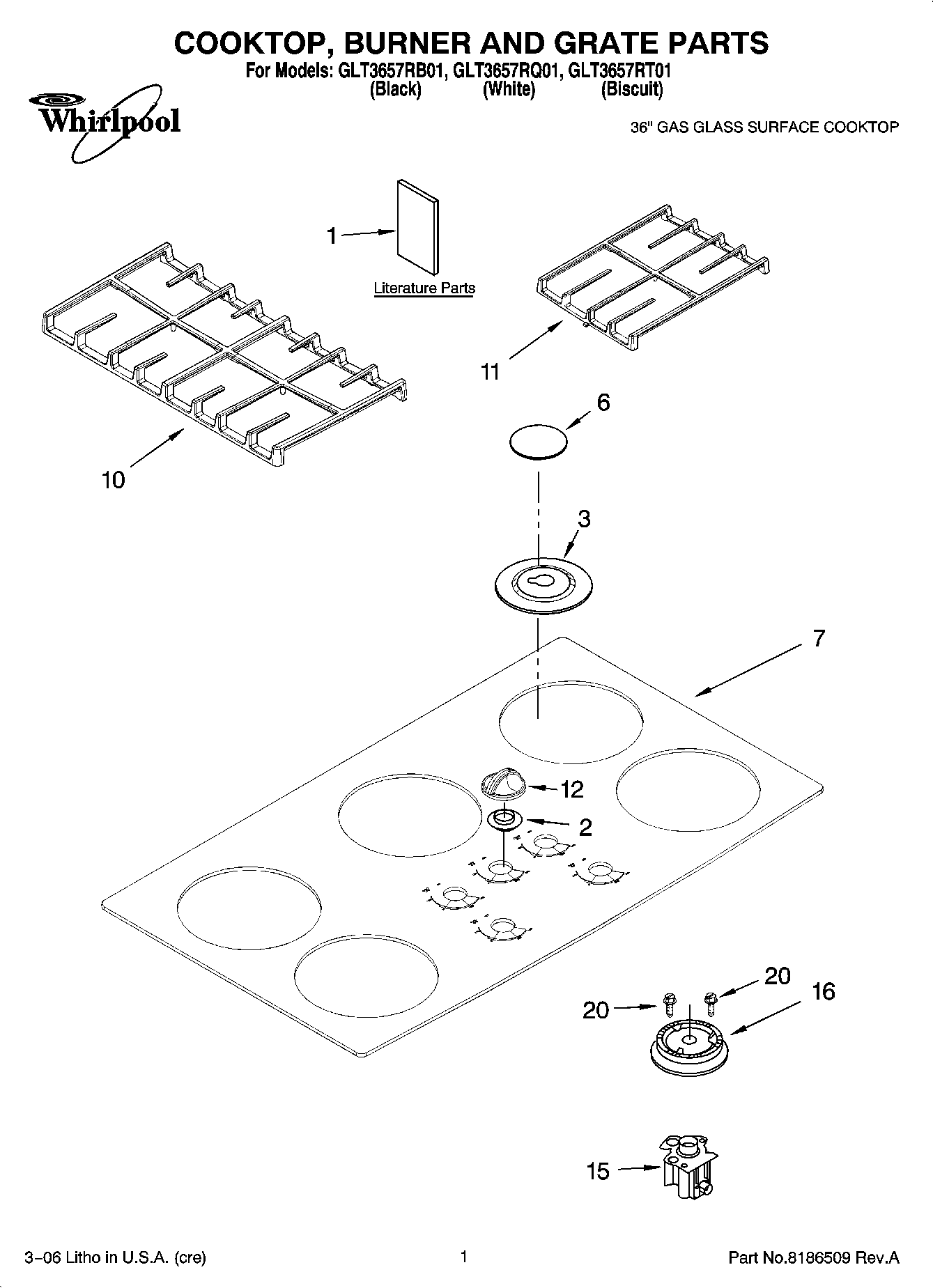

GLT3657RT01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Safe Cooking Tips
1	Use & Care Guide
1	Wiring Diagram
1	Installation Instructions
1	L.P. Conversion Instructions
2	Grommet, Glass (Biscuit)
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
3	Bowl, Burner 6K (RR) (Biscuit)
3	Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
3	Bowl, Burner 6K (RR) (White)
3	Bowl, Burner 6K (RR) (Black)
3	Bowl, Burner 9K, 12K (LR, RF, LF) (White)
3	Bowl, Burner 9K,12K (LR, RF, LF) (Black)
6	WP8286153CG Whirlpool Burner Cap
6	WP8286155CG Whirlpool Burner Cap
6	Cap, Burner 6K (RR) (Espresso)
6	Cap, Burner 9.5K (LR) (Espresso)
6	WP8286154CG Whirlpool Burner Cap
6	8286155EP Whirlpool Burner Cap
6	WP8286154CB Whirlpool Burner Cap
6	WP8286155CB Whirlpool Burner Cap
6	WP8286153CB Whirlpool Burner Cap
7	Cooktop, Glass (Biscuit)
7	Cooktop, Glass (White)
7	Cooktop, Glass (Black)
10	Grate Right (Coal Matte Black)
10	Grate Right (Espresso)
10	Grate Right (Cumberland Gray)
10	Grate Left (Espresso)
10	Grate Left (Cumberland Gray)
10	Grate Left (Coal Matte Black)
11	Gr
11	Grate, Center (Cumberland Gray)
11	Grate, Center (Coal Matte Black)
12	WPL 8286058BT
12	WP8286058BL Whirlpool Knob
12	8286058WH Whirlpool Knob
15	WPW10128448 Whirlpool Igniter and Orifice Holder
15	WPW10128450 Whirlpool Orifice Holder
15	WPW10128451 Whirlpool Orifice Holder
16	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
16	WPW10406243 Whirlpool Burner Head Auxiliary 6K
16	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
20	WP3368921 Whirlpool Screw
