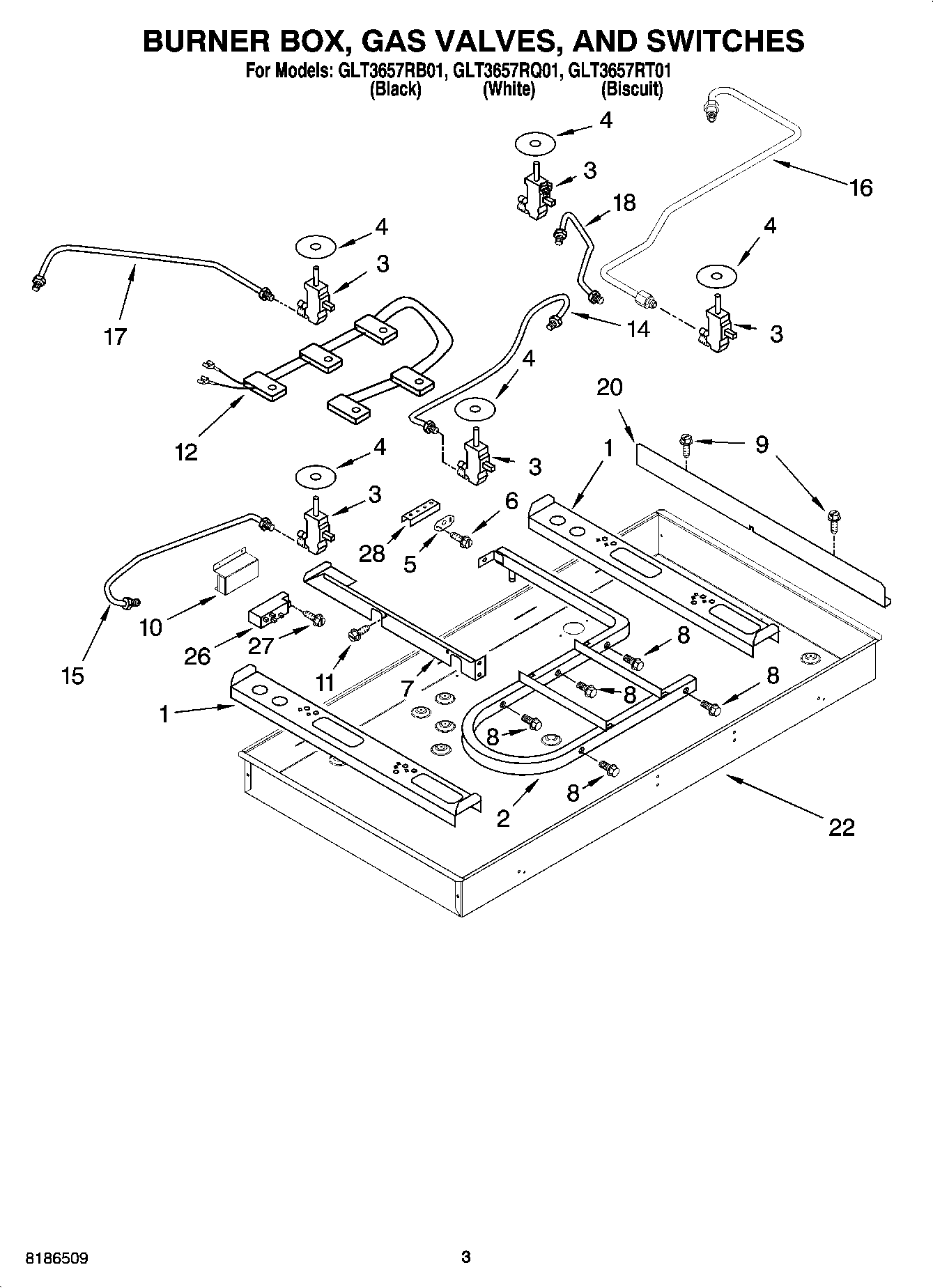

GLT3657RT01 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	8186533 Whirlpool Hardware
	WP8286320 Whirlpool Spud Orifice
	WIRING HARNESS PARTS
	4456626 Whirlpool Wire
	Hardware Kit (Mounting)
	8285402 Whirlpool Oven Grounding Wire
	Seal, Foam-Cooktop
	Following Parts Not Illustrated
	Miscellaneous
	4456627 Whirlpool Wire Harness
	4173634 Whirlpool Bushing
	Nut, Tinnerman (2)
	WP3177991 Whirlpool Screw
	W10392007 Whirlpool Power Cord
1	W10203756 Whirlpool Support
2	8285751 Whirlpool Oven Manifold Pipe
3	WP4456817 Whirlpool Burner Valve
3	Valve, Gas Burner (Yellow)
3	Valve, Gas Burner (White)
4	WP3188425 Whirlpool Seal Switch
5	3192491 Whirlpool Support Bracket
6	W10491985 Whirlpool Screw
7	Rail, Center
8	WP3186217 Whirlpool Screw
10	8285789 Whirlpool Heat Shield
11	WP4449809 Whirlpool Screw
12	WP4456901 Whirlpool Wire Harness
14	Tubing, Gas Burner (RF)
15	8286403 Whirlpool Oven Gas Tubing
16	Tubing, Gas Burner (RR)
17	Tubing, Gas Burner (LR)
18	Tubing, Gas Burner (Center)
20	3191462 Whirlpool Oven Heat Shield
22	Burner Box
26	WPW10110486 Whirlpool Spark Module
27	WP12990527 Whirlpool Microwave Screw
