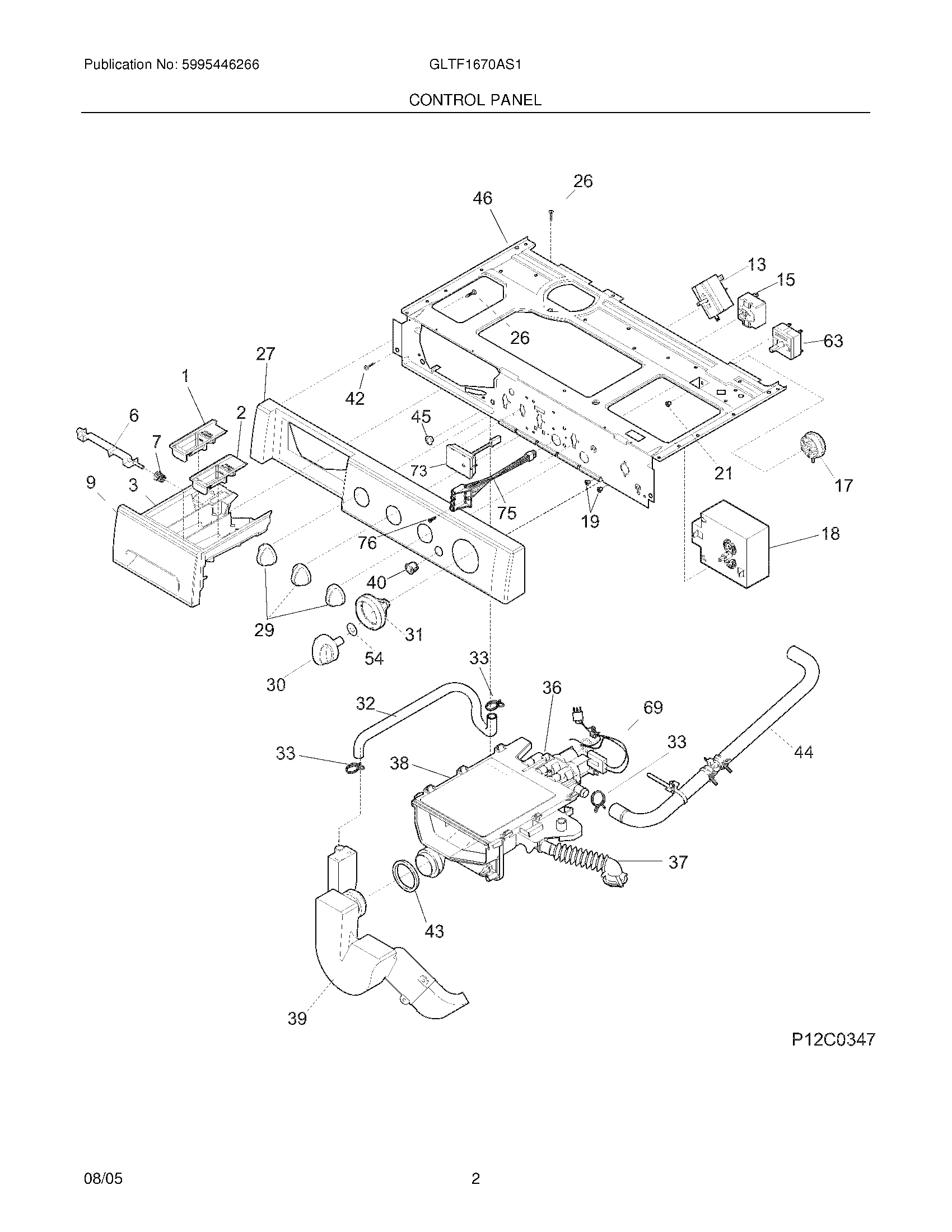

GLTF1670AS1 03 – CONTROL PANEL

Products

Position	Product
NI	Clamp,siphon/bellows
NI	WCI 131931201
1	WCI 131272100
2	WCI 131272000
3	WCI 131271910
6	Latch,disp drawer hdl
7	WCI 131427500
9	Handle,disp drawer ,with trim
13	WCI 134401700
15	Switch,option selector ,2 position
17	WCI 134431101
18	WCI 134014700
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
26	WCI 131823400
27	Console,frame/trim assy
29	WCI 134042700
30	134191800 Frigidaire Knob
31	WCI 131853900
32	WCI 131786100
33	134737300 Frigidaire Clamp
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
38	WCI 131803710
39	WCI 131863300
40	134040800 Frigidaire Switch
42	131168200 Frigidaire Dryer Screw
43	WCI 131749200
44	WCI 131899800
45	Bushing,idler
46	WCI 134191412
54	Spacer,washer ,timer shaft
63	WCI 134175600
69	WCI 134565600
73	WCI 131963800
75	WCI 131949010
76	WCI 131974500
