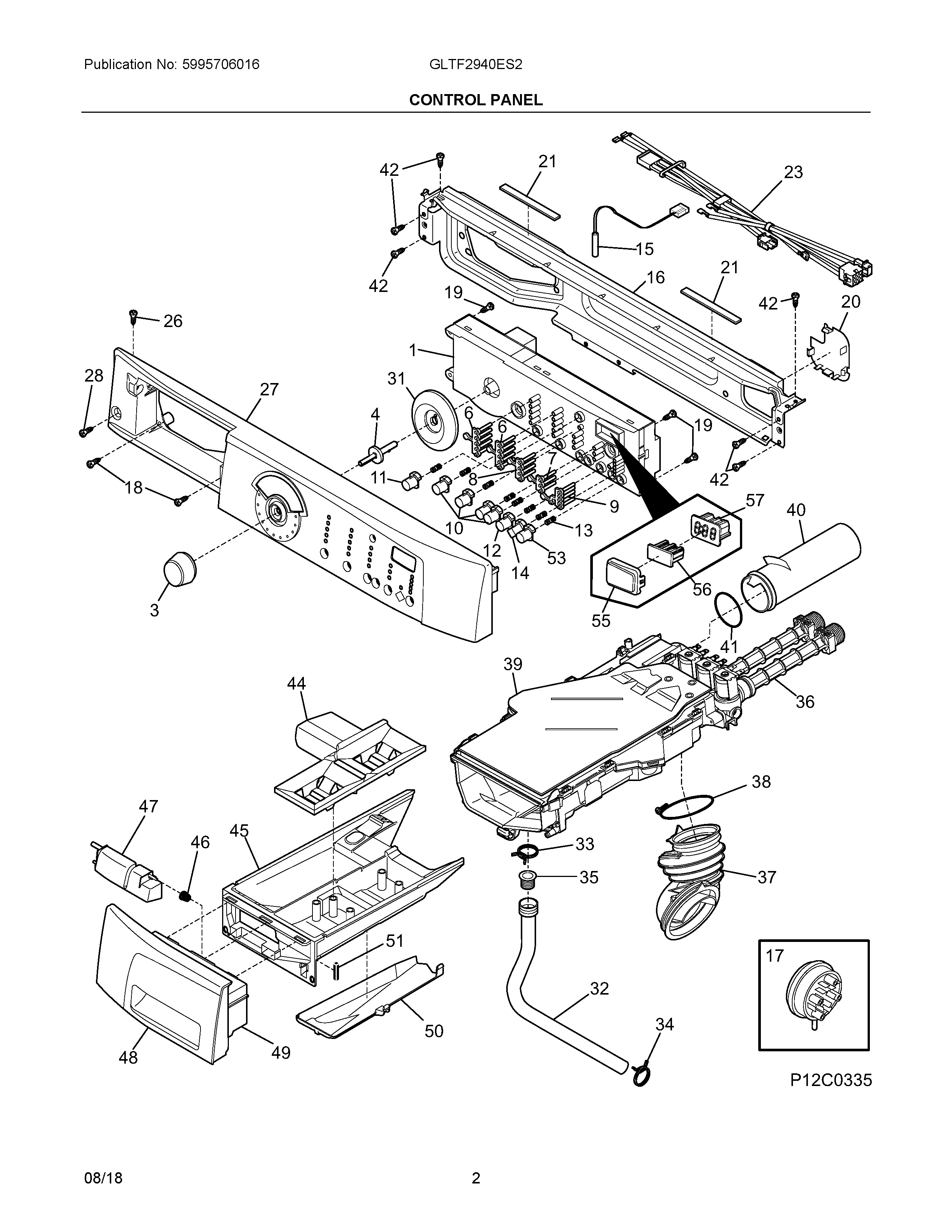

GLTF2940ES2 02 – CONTROL PANEL

Products

Position	Product
NIB	134178901 Frigidaire Screw
NIA	WCI 134543100
NIA	WCI 134528700
NIA	134371300 DISPENSER TO VALVE GASKET
1	137006000 Frigidaire Washer Electronic PCB
3	WCI 134471500
4	WCI 134347700
6	WCI 134429100
7	WCI 134429300
8	WCI 134429200
9	WCI 134429400
10	Push Button,No.10
11	WCI 134447500
12	WCI 134447400
13	WCI 134349400
14	WCI 134447201
15	WCI 134399300
16	WCI 134364800
17	134762000 Frigidaire Pressure Switch
18	131302800 Frigidaire Drum Vane Screw
19	134402900 Frigidaire Screw
20	WCI 134452600
21	134407900 Frigidaire Dampener
23	WCI 134436600
26	131205100 Frigidaire Screw
27	WCI 134442700
28	131205300 Frigidaire Screw
31	WCI 134441300
32	WCI 134371700
33	134737300 Frigidaire Clamp
34	5304464772 Frigidaire Refrigerator Wire Tie
35	WCI 134371800
36A	134371220 Frigidaire Dispenser Fill Valve
36	Valve,dispenser ,non NTC
37	134372300 Frigidaire Hose
38	134372400 Frigidaire Clamp
40	WCI 134372100
41	134372200 Frigidaire O-Ring
42	131168200 Frigidaire Dryer Screw
44	134370200 Frigidaire Washer Dispenser Drawer Cover
45	134370000 Frigidaire Washer Detergent Dispenser Drawer
46	WCI 134349500
47	Latch,dispenser ,slider lock
48	WCI 134465800
49	WCI 134386200
50	134409320 Frigidaire Dispenser Assembly
51	WCI 131373800
53	WCI 134447301
55	WCI 134428900
56	WCI 134503400
57	WCI 134503300
