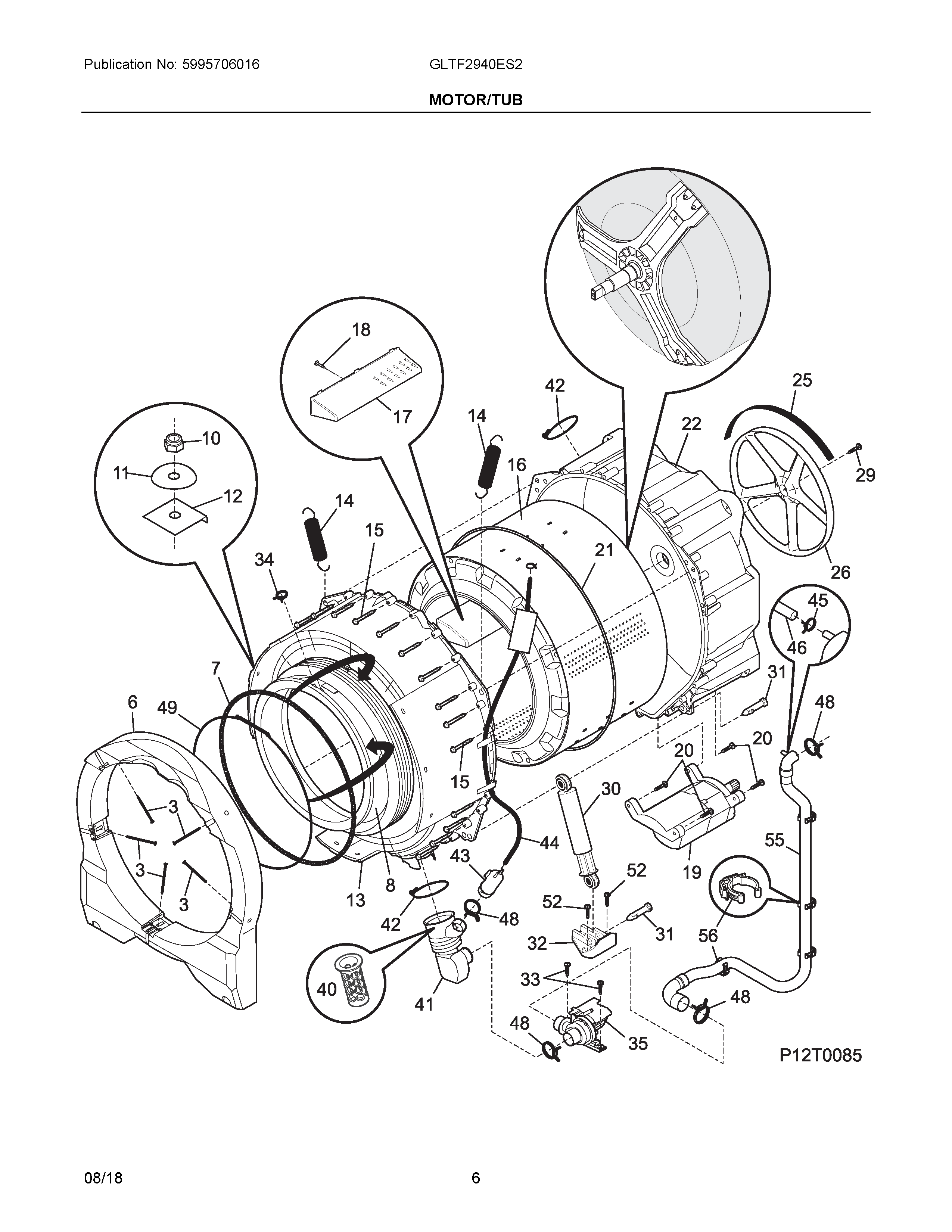

GLTF2940ES2 04 – MOTOR/TUB

Products

Position	Product
NI	TECHNICAL DATA SHEET, WIRING DIAGRAM
NI	WCI 134454400
NIA	134261300 Frigidaire Clip
3	WCI 131793303
6	WCI 134362200
7	134365300 Frigidaire Spring
8	BELLOWS KIT W/O LIGHT HOLE
10	Nut,hex ,1/4-20 UNC-2B ,(2)
11	131276900 Frigidaire Washer Spring
12	WCI 134430600
13	134362000 Frigidaire Front Outer Tub
14	WCI 134362800
15	131303900 Frigidaire Screw
16	WCI 134360900
17	134509600 Frigidaire Baffle Assembly
18	131302800 Frigidaire Drum Vane Screw
19	137043000 Frigidaire Washer Motor
20	131303500 Frigidaire Screw
21	5304520351 Frigidaire Washer O-Ring
22	134507120 Frigidaire Shell
25	WCI 134051001
26	WCI 134362600
29	134408400 Frigidaire Screw
30	5304485917 Frigidaire Washer Shock Absorber Air Stabilizer
31	131268300 Frigidaire Leveling Pin
32	134363200 Frigidaire Bracket
33	134160900 Frigidaire Screw
34	5304464772 Frigidaire Refrigerator Wire Tie
35	137221600 Frigidaire Washer Drain Pump
40	WCI 134565200
41	134455900 Frigidaire Washer Tub To Pump HOSE
42	134737300 Frigidaire Clamp
43	137089000 Frigidaire Air Chamber
45	131306202 Frigidaire Clamp
46	WCI 134436100
48	131306234 Frigidaire Clamp Pump
49	134527100 Frigidaire Washer Clamp
52	131202300 Frigidaire Screw
55	WCI 134458300
56	WCI 134369800
