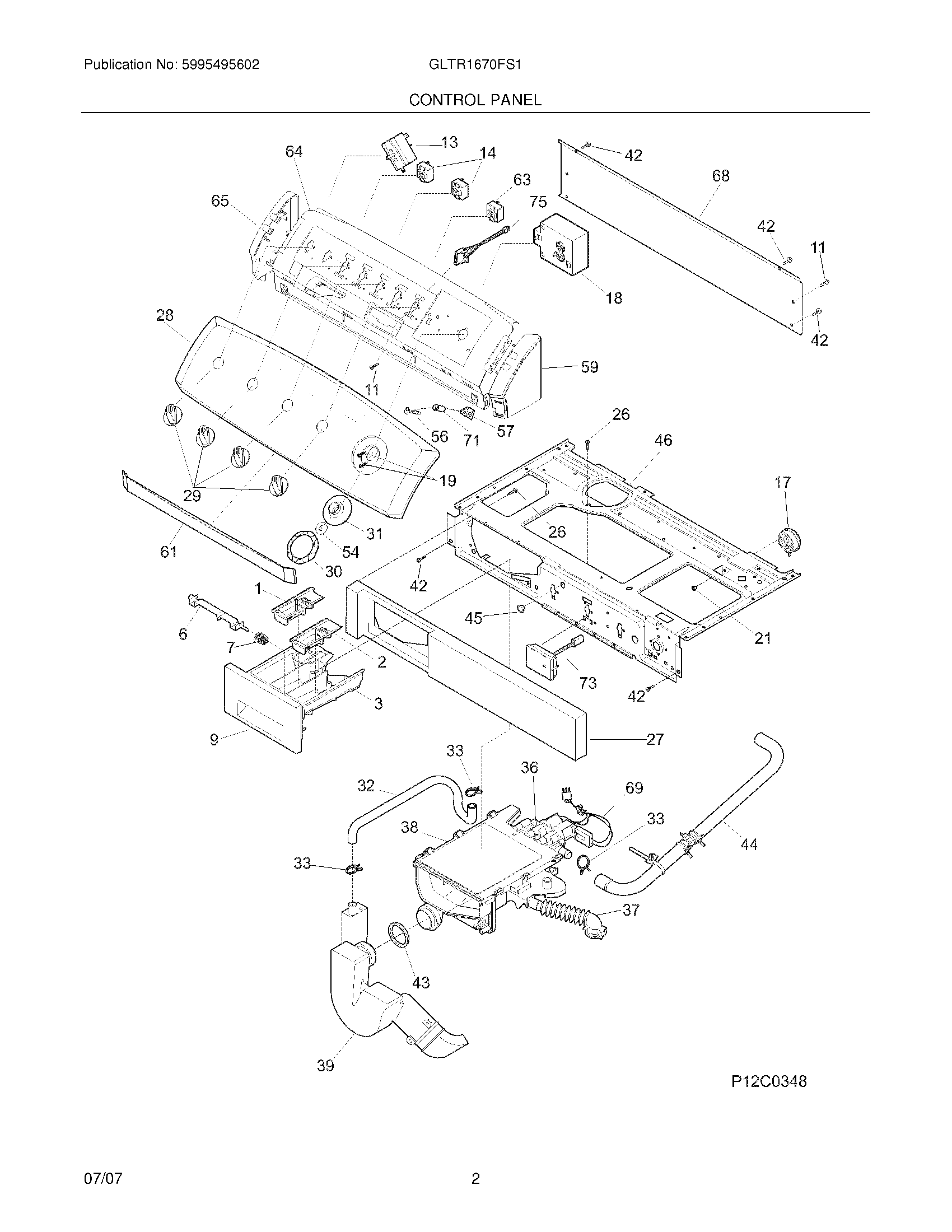

GLTR1670FS1 03 – CONTROL PANEL

Products

Position	Product
NI	Clamp,siphon/bellows
NI	WCI 131931201
NI	WCI 134073400
1	WCI 131272100
2	WCI 131272000
3	WCI 131271910
6	WCI 131714900
7	WCI 131427500
9	WCI 131729500
11	131205100 Frigidaire Screw
13	WCI 134401700
14	Switch,2 position
17	WCI 134818201
18	WCI 134795000
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
26	WCI 131823400
27	PANEL-DISPENSER DRAWER
28	WCI 134073700
29	134844410 Frigidaire Washer Dryer Selector Knob White
30	Knob,timer ,white ,assy
31	WCI 134034700
32	WCI 131786100
33	134737300 Frigidaire Clamp
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
38	WCI 131803710
39	WCI 131863300
42	131168200 Frigidaire Dryer Screw
43	WCI 131749200
44	WCI 131899800
45	Bushing,idler
46	WCI 134191412
54	Spacer,washer ,timer shaft
56	WCI 131266330
57	CLIP-CONSOLE MTG
59	WCI 134019600
61	WCI 134019900
63	WCI 131908500
64	WCI 131993040
65	WCI 134019610
68	WCI 131992900
69	WCI 134565900
71	WCI 134096100
73	WCI 131963800
75	WCI 134062801
