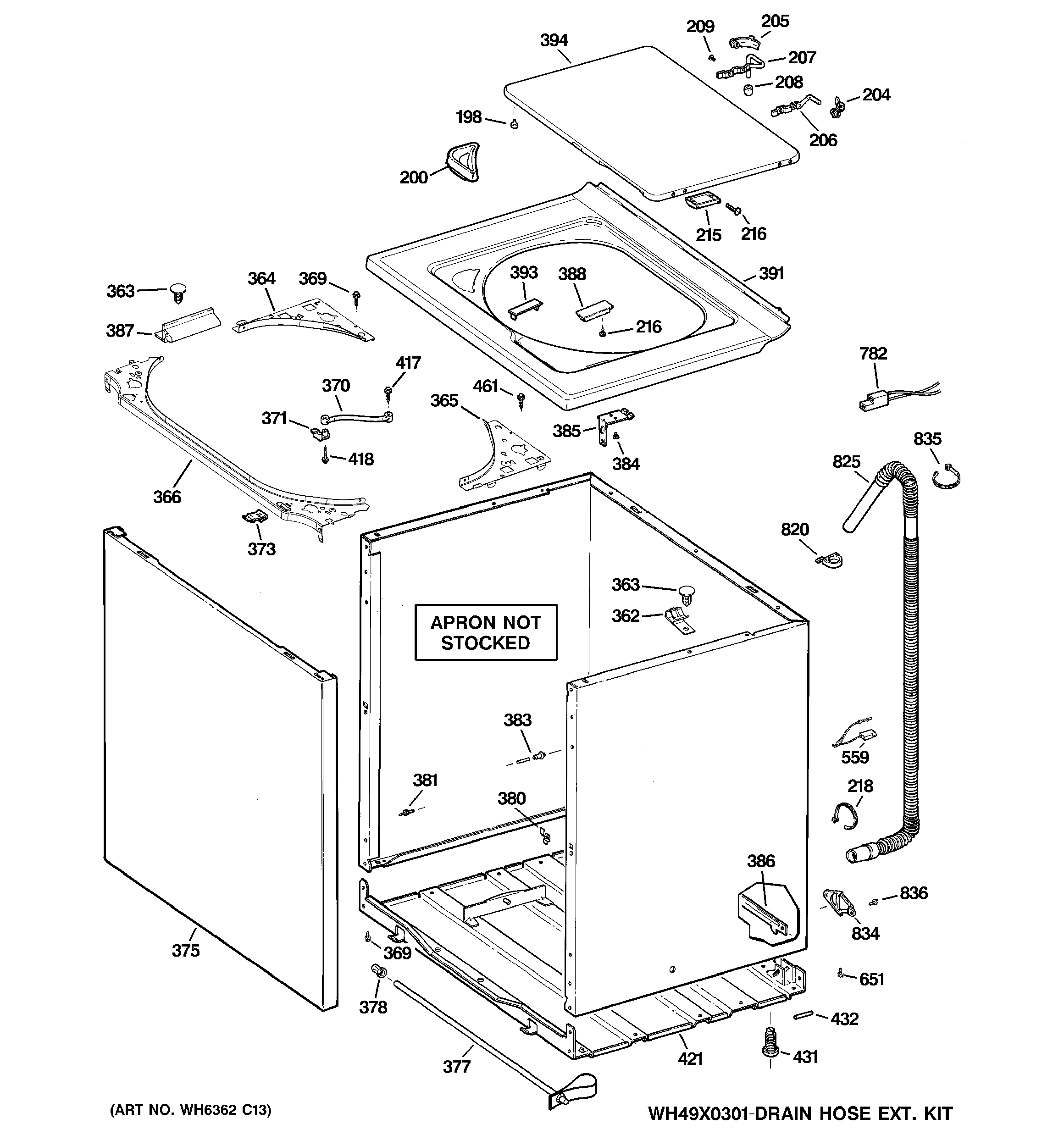

GLWP2000M1WW CABINET, COVER & FRONT PANEL

GLWP2000M1WW CABINET, COVER & FRONT PANEL

Written by

in

GLWP2000M1WW CABINET, COVER & FRONT PANEL

Products

PositionProduct
200WH01X10057 GE Blender Funnel
204WH1X2741 GE BSHNG Hinge
205WH01X10025 GE Hinge Bushing
206WH1X2740 GE Hinge Wire Frame
207GEN WH01X2743
208GEN WH01X2742
209WH2X1211 GE Screw
215GEN WH01X10222
216GEN WH02X10217
218WR02X11607 GE Refrigerator Wire Tie
218WH01X10704 GE Wire Tie
362GEN WH02X10263
363GEN WH02X10258
364GEN WH16X10101
365GEN WH16X10102
366WH49X20925 GE Rod Support Service
369WH2X1217 GE Screw Assembly
370WH1X2727 GE Washer Tub Support Strap
371WH1X2726 GE Retaining Strap
373WH02X10279 GE Washer Locking Clip
375WH46X10281 GE Front Panel Assembly
377SHIPPING BAR ASM
378WH1X2745 GE Plug Button
380GEN WH02X1207
381WH2X1190 GE Ground Stud
383WH2X1189 GE Alignment Pin
384WH01X10423 GE Screw 6-20 B TRT 3/8 S
384SCREW 8-15 A 3/4 SP HXW
385WH01X10422 GE Cover Clip
386WH46X10094 GE Self-Leveling Bar
387GEN WH41X10161
388WH12X10334 GE Washer Lid Switch Assembly
388LID SWITCH ASSEMBLY
391GEN WH44X10143
393GEN WH44X10144
394WH44X10277 GE Lid Assembly
394WH44X20021 GE Service Lid Assembly Finished
417GEN WH02X0694
418WH02X10282 GE Screw 8-18 B IHW 1 S
421GEN WH46X10079
431WH2X1187 GE Leveling Assembly
432GEN WH02X1188
461WZ5X158D GE Screw Package of 12
559GEN WH12X0538
651WH02X10123 GE Screw 1/4-20 TPT
782WB17X5060 GE Oven Block Assembly
820WH1X2725 GE Antenna Clip
825WH41X10096 GE Washer Drain Hose
834WH16X513 GE Washer Drain Hose Clip
835WH1X2594 GE Tie Strap
836WH02X10002 GE Screw
