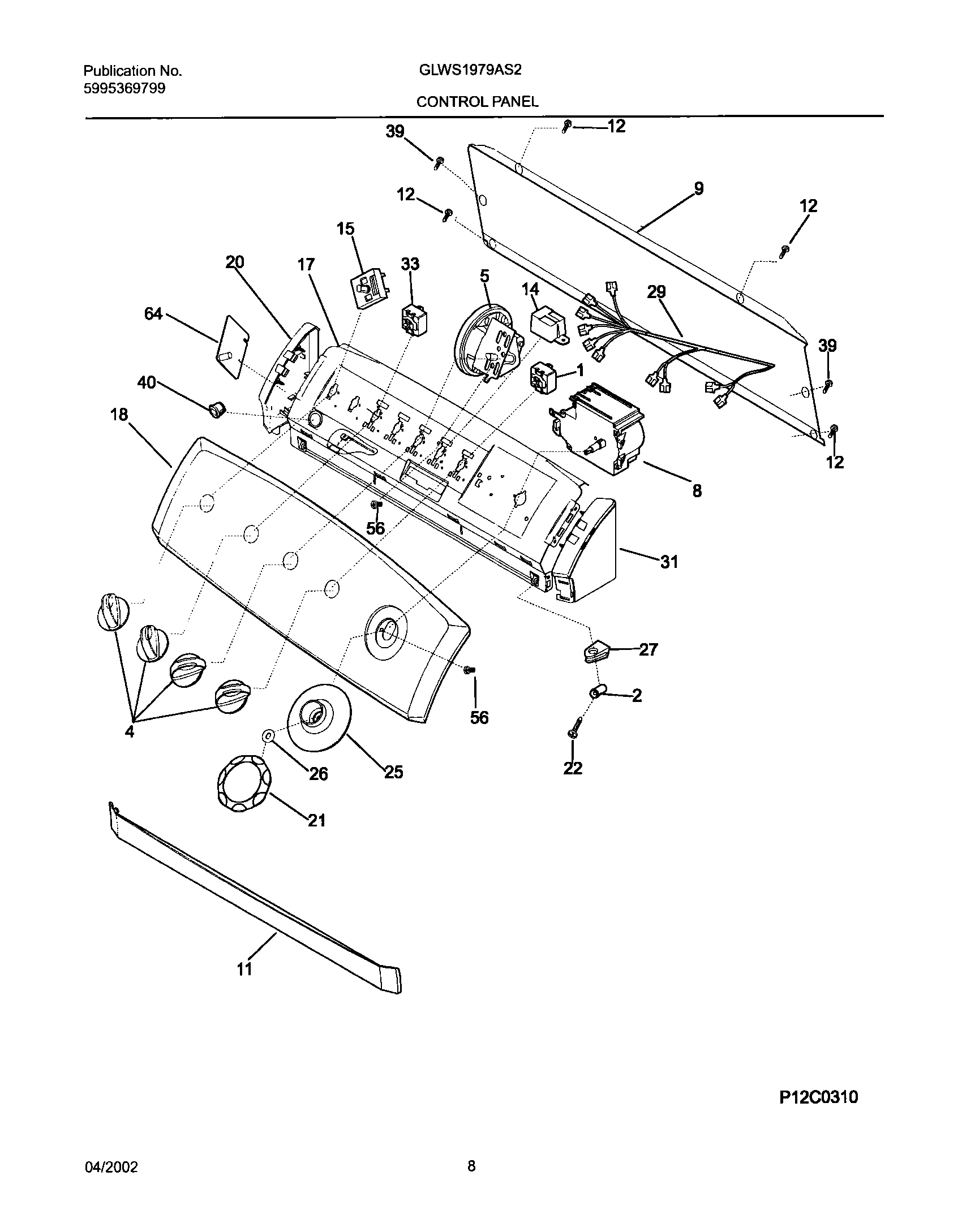

GLWS1979AS2 09 – CONTROL PANEL

GLWS1979AS2 09 – CONTROL PANEL

Written by

in

GLWS1979AS2 09 – CONTROL PANEL

Products

PositionProduct
1WCI 131893500
2WCI 134096100
4134844410 Frigidaire Washer Dryer Selector Knob White
5134680100 Frigidaire Pressure Switch
8WCI 134049300
9Panel,backsheet ,console
11WCI 134019900
12131168200 Frigidaire Dryer Screw
14WCI 134086900
15WCI 131858100
17Bracket,control mtg.
18WCI 134111000
20WCI 134019610
21Knob,timer ,white ,assy
22WCI 131266300
25WCI 134034700
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 134127100
31WCI 134019600
33WCI 134047700
39131205100 Frigidaire Screw
40134040800 Frigidaire Switch
56131243800 Frigidaire Screw
64WCI 131944900
