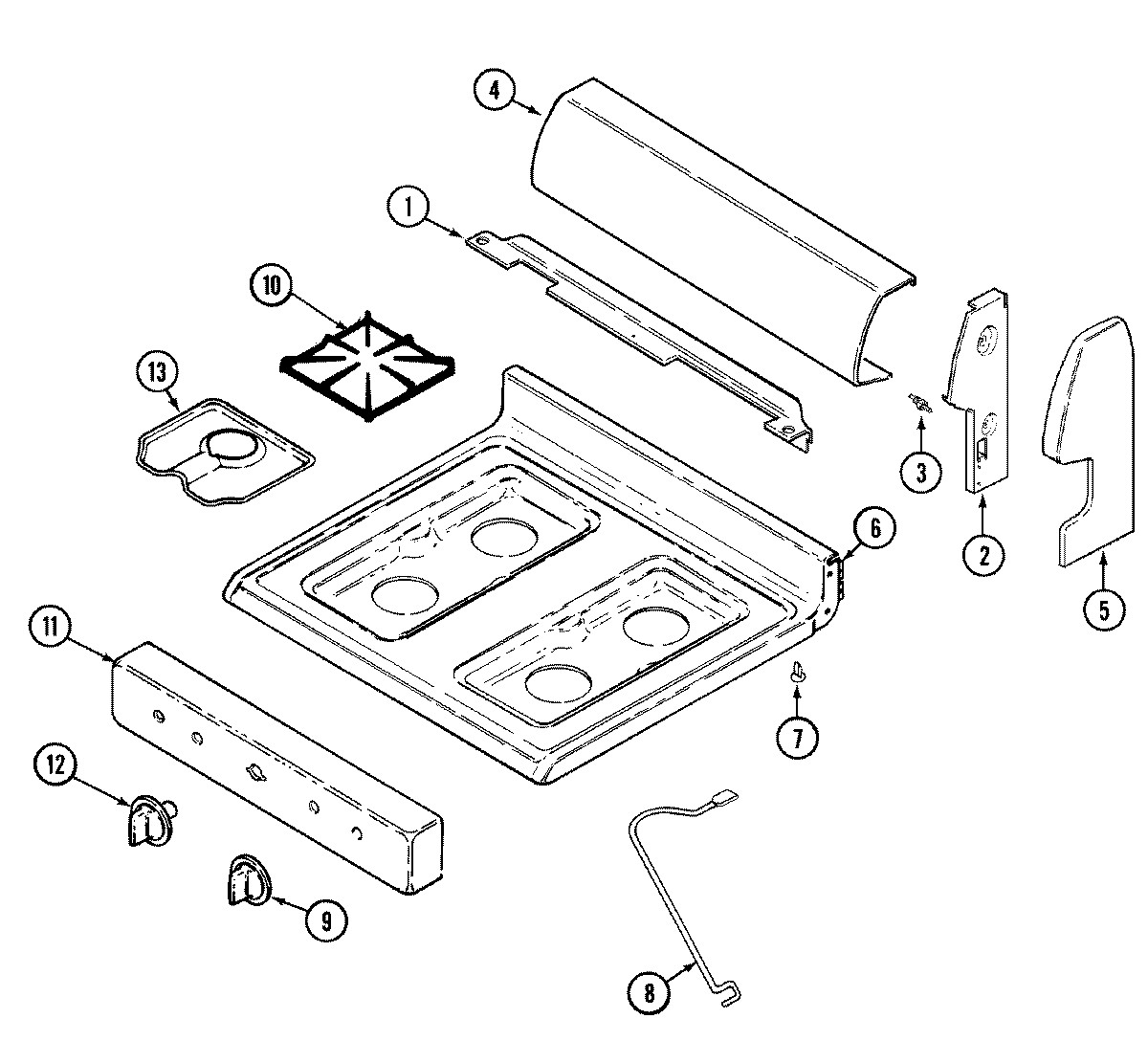

GM3110MPAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P209-60
1MAY 74002409
1MAY 74002401
2SCREW (8BX3/8-NI)
2MAY 74002402
2MAY 74002403
3MAY 74002404
4WP98008545 Whirlpool Screw
4SCREW
4MAY 74002405
5MAY 74002406
5MAY 74002407
5MAY 74002432
6MAY 74002410
7MAY 8016P015-60
8MAY 74001170
9WP74002353 Whirlpool Control Knob
10MAY 2003W026-00
11MAY 7101P074-60
11MAY 74002411
11MAY 7109P015-60
12MAY 7731P077-60
13MAY 5401A433-60
14MAY 74002657
15MAY 16002079
