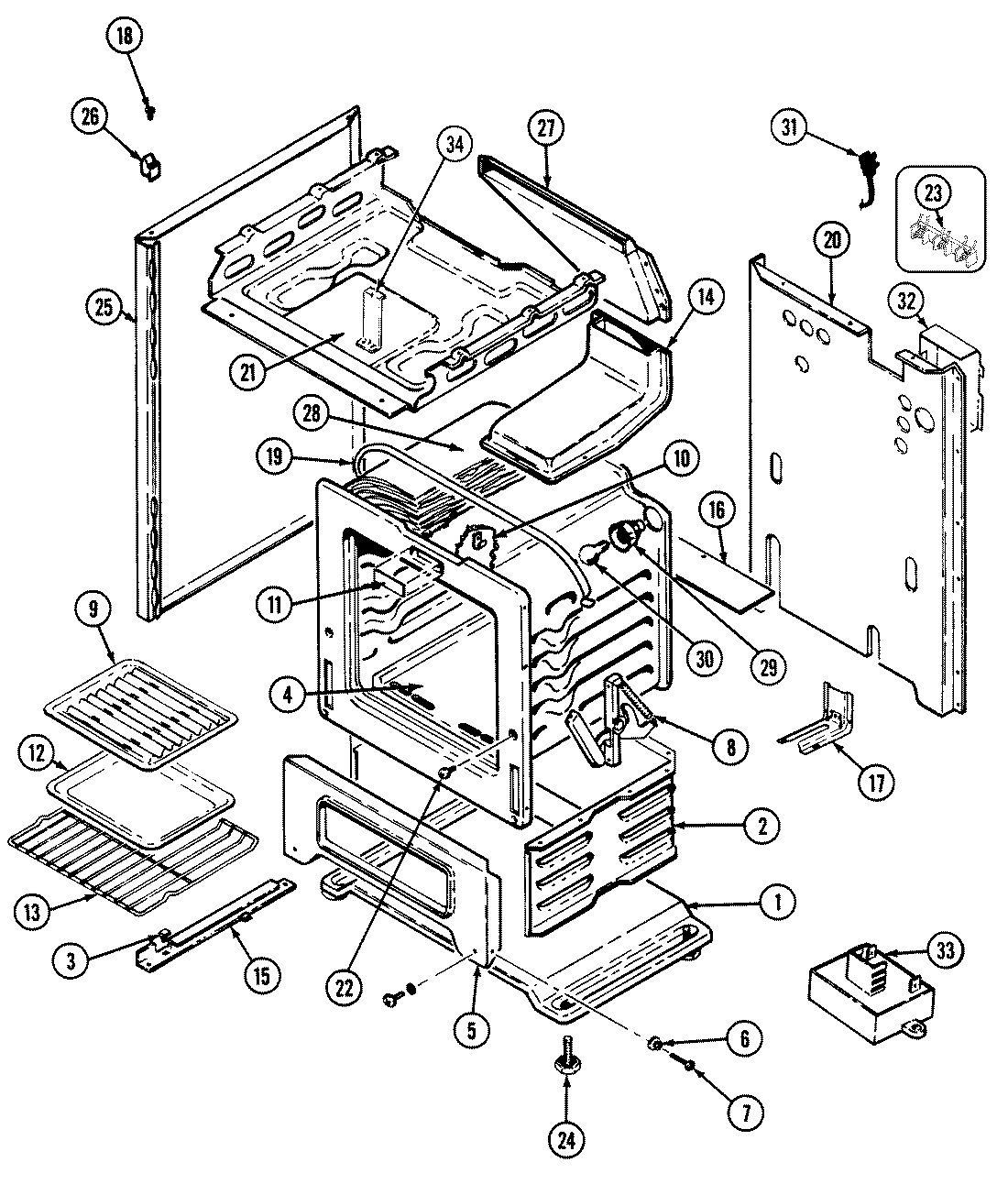

GM3167WUA 01 – BODY/OVEN
Written by
in
GM3167WUA 01 – BODY/OVEN
Products
Position
Product
1
MAY 4003W029-80
2
MAY 4016F039-45
3
MAY 8016P010-60
4
MAY 5504M004-19
4
BAFFLE, OVEN BOTTOM
5
MAY 2201F077-19
6
MAY 8004P024-60
7
MAY 74001449
8
MAY 7106P056-60
9
MAY Y3413F01619
10
WP7112P004-60 Whirlpool Thermal Clip
11
MAY 8114P335-60
12
MAY Y3401F02019
13
MAY 7801P047-60
14
WP74003976 Whirlpool Screw
14
MAY 4006W113-45
15
MAY 3404F018-51
15
MAY 3404F021-51
16
MAY 3807F416-51
17
MAY 3801F218-51
17
MAY 7101P344-60
18
MAY 7101P313-60
19
MAY 4820F001-59
20
MAY 8008P021-60
20
MAY 4002F188-80
21
MAY 4011F209-80
22
SCREW (10-24X5/16-NI)
23
MAY 7401P037-60
24
MAY 7101P306-60
25
MAY 2618F110-64
26
SPACER, MAIN TOP (RT)
26
SPACER, MAIN TOP (LT)
27
MAY 4022W007-19
27
SCREW (8BX3/8-NI)
28
MAY 4804F031-60
28
MAY 4804F032-60
29
WP7407P182-60 Whirlpool Lamp
30
MAY 7407P027-60
31
MAY 7402P045-60
32
MAY 4005F385-51
33
MAY 7510P046-60
33
MAY 7101P339-60
34
MAY 7101P290-60
34
MAY 3807F431-45
←
