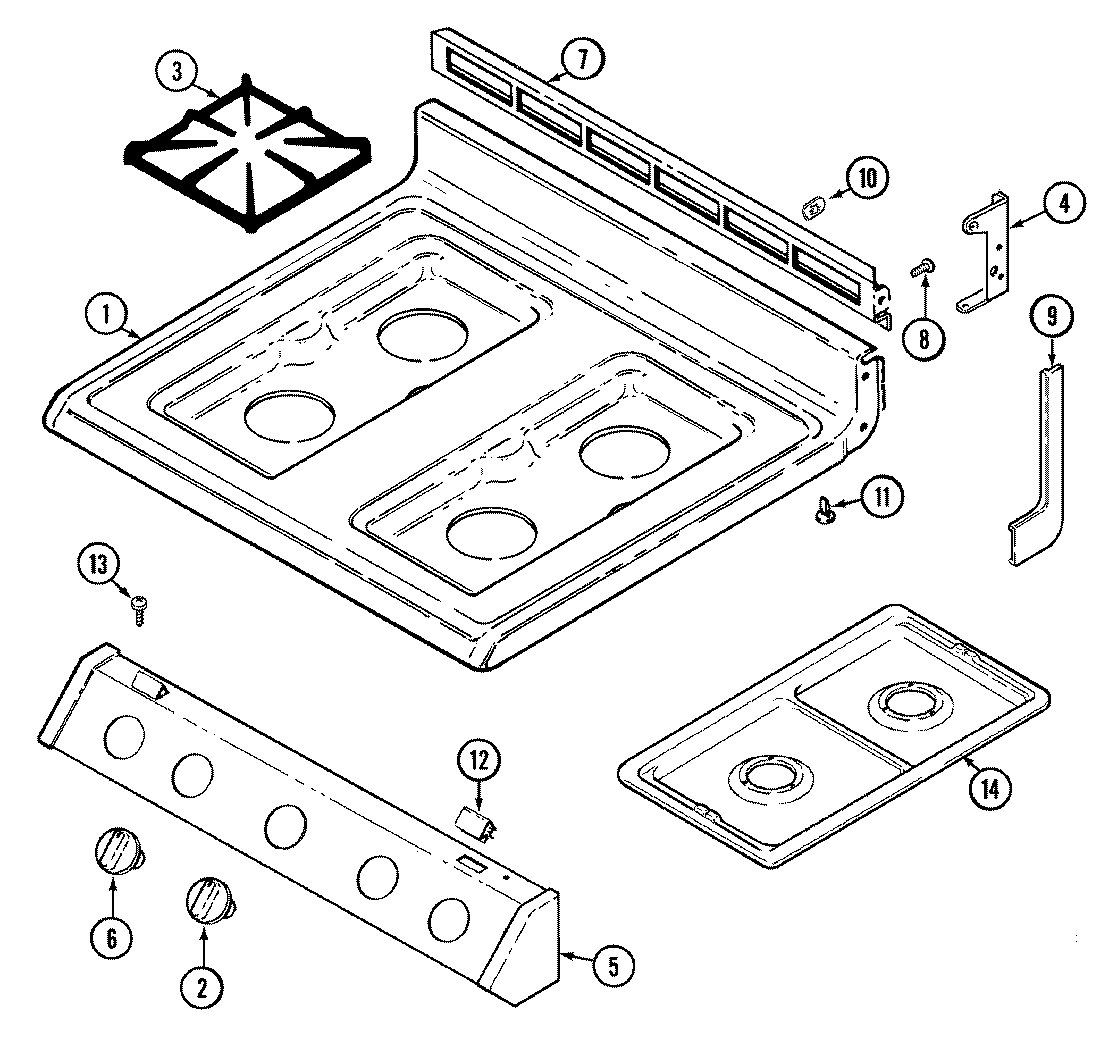

GM3167WUV 05 – TOP ASSEMBLY

GM3167WUV 05 – TOP ASSEMBLY

Written by

in

GM3167WUV 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W085-81
2MAY 7733P046-60
3MAY 2003W027-26
4MAY 3807F454-51
4MAY 3807F453-51
4SCREW (8BX3/8-NI)
5MAY 7712P172-60
6MAY 7731P078-60
7MAY 3608F042-26
8SCREW (10ABX1/4P TR ZN)
9MAY 7746P032-60
9MAY 7746P033-60
10WP3195558 Whirlpool Nut
11MAY 8016P015-60
12MAY 7112P087-60
13MAY 7101P329-60
14MAY 5401A452-60
