GM3211GXAA 05 – OVEN/BASE – Aparts

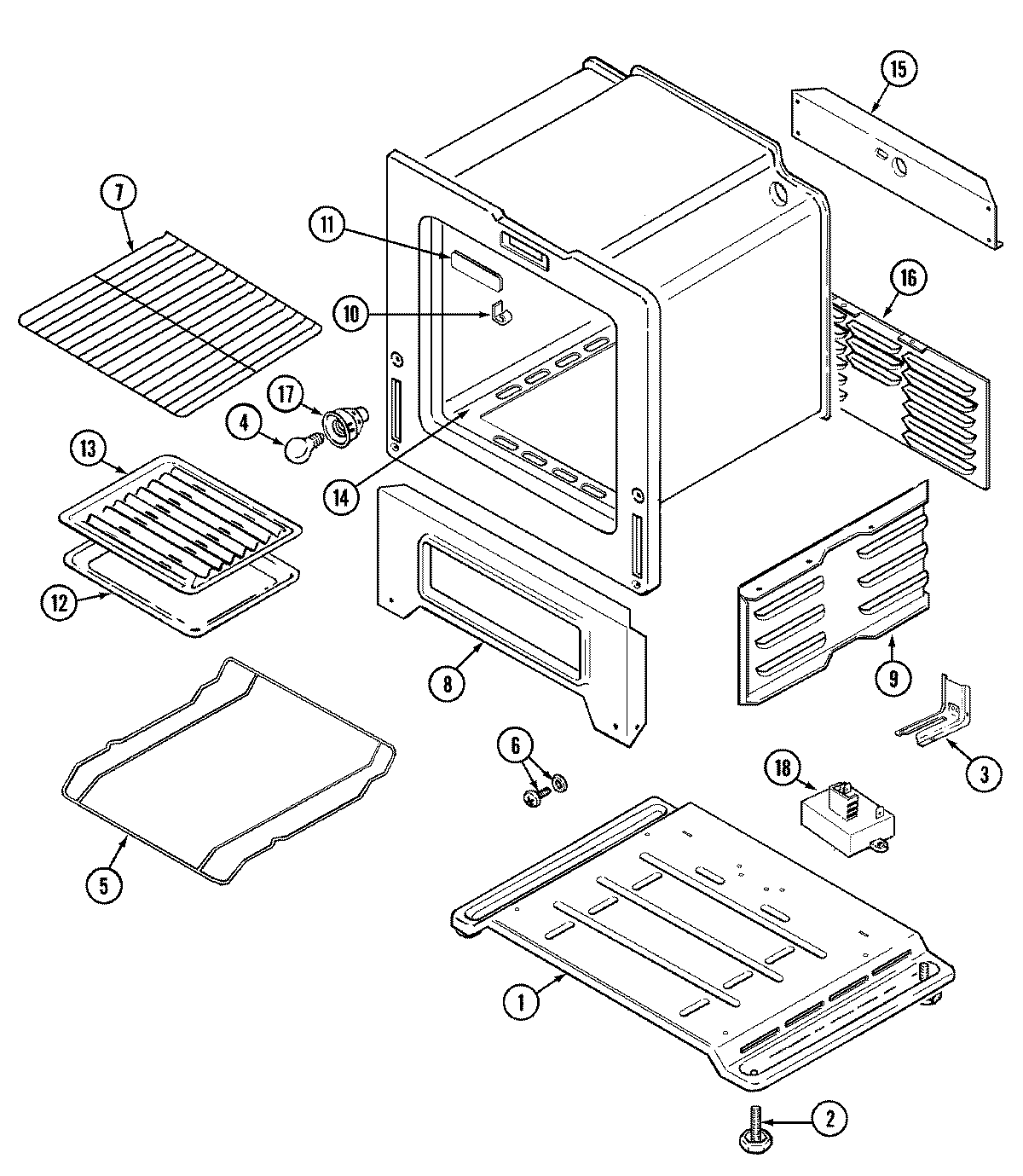

GM3211GXAA 05 – OVEN/BASE

Products

Position	Product
1	MAY 74002372
2	W11665456 Whirlpool Range Level Foot
3	WP7101P485-60 Whirlpool Anchor Tip
3	MAY 74002311
4	MAY 7407P027-60
5	MAY 74002381
6	WP74003976 Whirlpool Screw
7	WPW10282492 Whirlpool Oven Rack
8	MAY 74002327
9	MAY 74002374
9	MAY 74002375
10	WP7112P004-60 Whirlpool Thermal Clip
11	MAY 7718P013-60
12	MAY Y3401F02019
13	MAY Y3413F01619
14	MAY 74002377
14	MAY 74002376
15	MAY 74002378
16	SCREW
16	MAY 74002379
17	MAY 7408P037-60
17	MAY 74003387
18	MAY 8010P084-60
18	SCREW (8BX3/8-NI)
18	MAY 74002758
