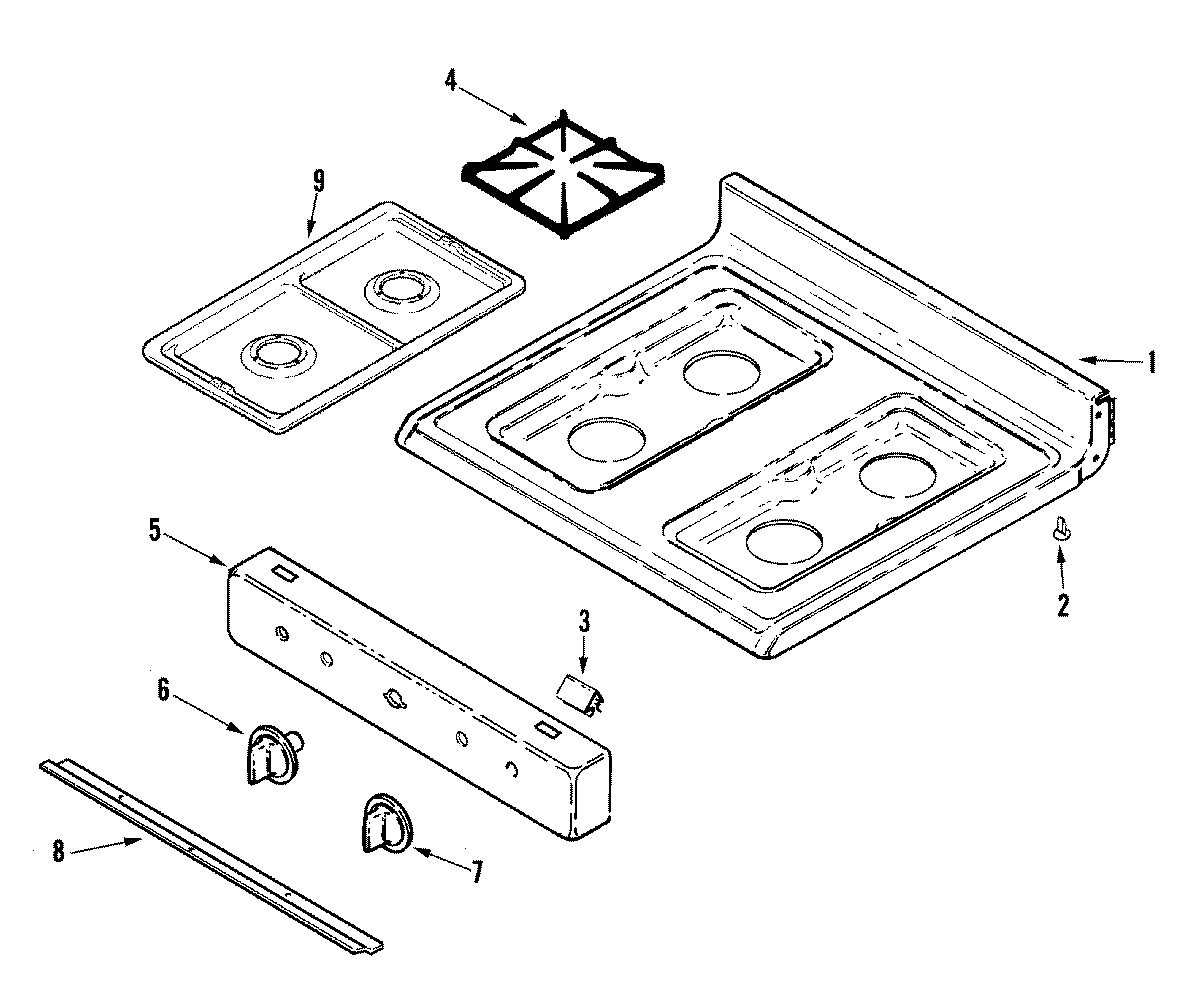

GM3211GXAW 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74002440
2	MAY 8016P015-60
3	MAY 7112P087-60
4	MAY 74001653
4	WP7518P464-60 Whirlpool Burner Grate
4	MAY 2003W027-00
5	MAY 74002411
5	MAY 7101P074-60
5	SCREW (8BX3/8-NI)
5	MAY 7109P015-60
6	MAY 74002519
7	MAY 74002543
8	SCREW
8	MAY 74002447
8	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	MAY 5401A452-60
