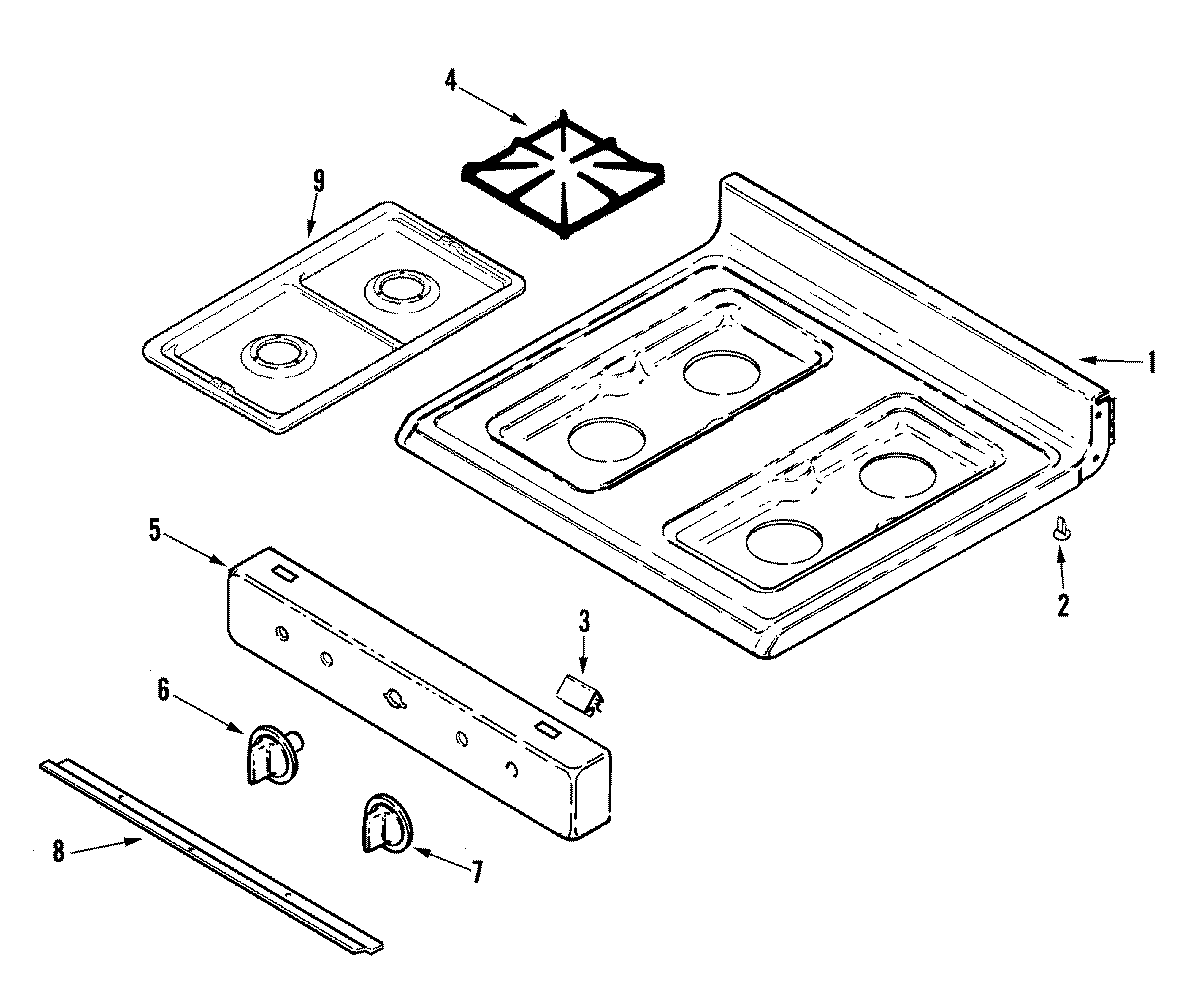

GM3211SXAA 06 – TOP ASSEMBLY

GM3211SXAA 06 – TOP ASSEMBLY

Written by

in

GM3211SXAA 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74002441
2MAY 8016P015-60
3MAY 7112P087-60
4MAY 74001653
4WP7518P464-60 Whirlpool Burner Grate
4MAY 2003W027-00
5MAY 74002411
5MAY 7109P015-60
5WP3387230 Whirlpool Screw
5SCREW (8BX3/8-NI)
6MAY 7731P077-60
7MAY 74002771
8SCREW
8MAY 74002447
9MAY 5401A452-60
