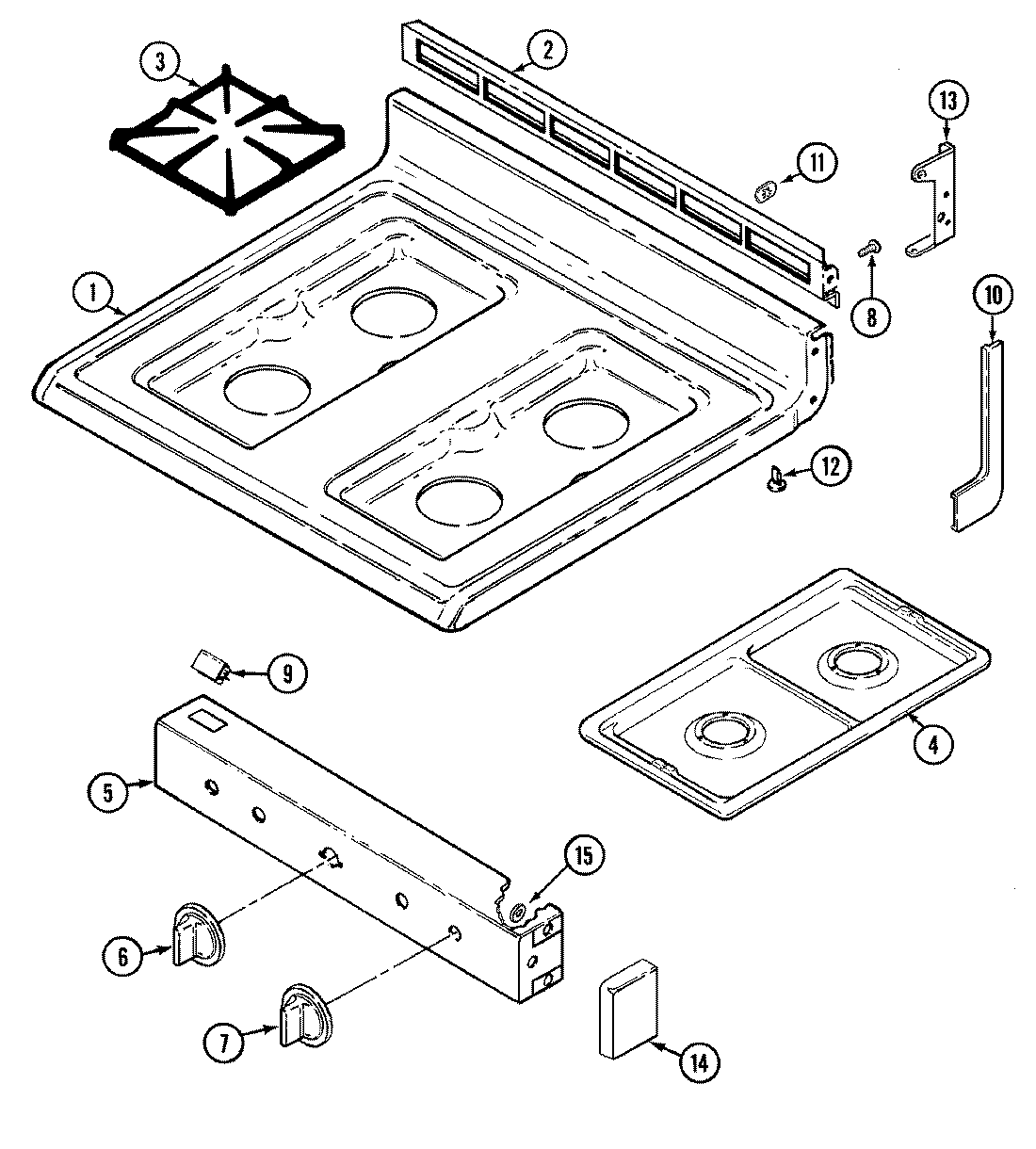

GM3267WUAM 05 – TOP ASSEMBLY
Written by
in
GM3267WUAM 05 – TOP ASSEMBLY
Products
Position
Product
1
MAY 2001W085-84
2
MAY 3608F042-09
3
MAY 2003W027-00
4
MAY 5401A452-60
5
MAY 7101P329-60
5
MAY 2616F102-09
6
MAY 7731P064-60
7
MAY 7733P027-60
8
SCREW (10ABX1/4P TR ZN)
9
MAY 7112P087-60
10
MAY 8270P095-60
10
MAY 7746P030-60
10
MAY 7746P031-60
11
WP3195558 Whirlpool Nut
12
MAY 8016P015-60
13
MAY 3807F453-51
13
MAY 8114P348-60
13
MAY 3807F454-51
14
MAY 7713P018-60
15
MAY 7112P092-60
←
