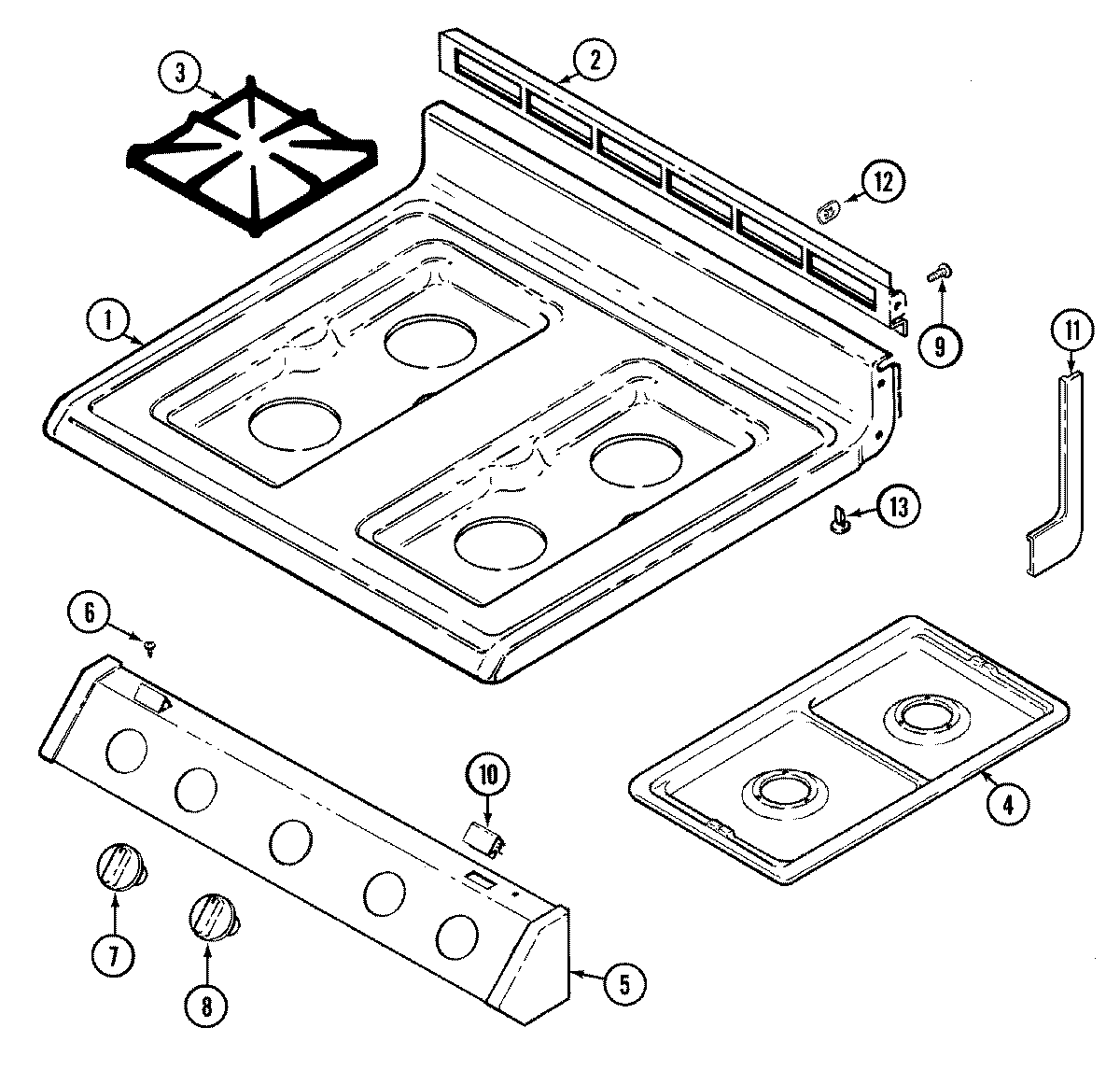

GM3267XUW 06 – TOP ASSEMBLY

GM3267XUW 06 – TOP ASSEMBLY

Written by

in

GM3267XUW 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7101P343-60
1	MAY 2001W085-81
2	MAY 3608F042-09
3	MAY 2003W027-00
4	MAY 5401A452-60
5	MAY 7712P134-60
6	MAY 7101P074-60
7	MAY 7731P071-60
8	MAY 7733P065-60
9	SCREW (10ABX1/4P TR ZN)
10	MAY 7112P087-60
11	MAY 7746P031-60
11	MAY 7746P030-60
12	WP3195558 Whirlpool Nut
13	MAY 8016P015-60
