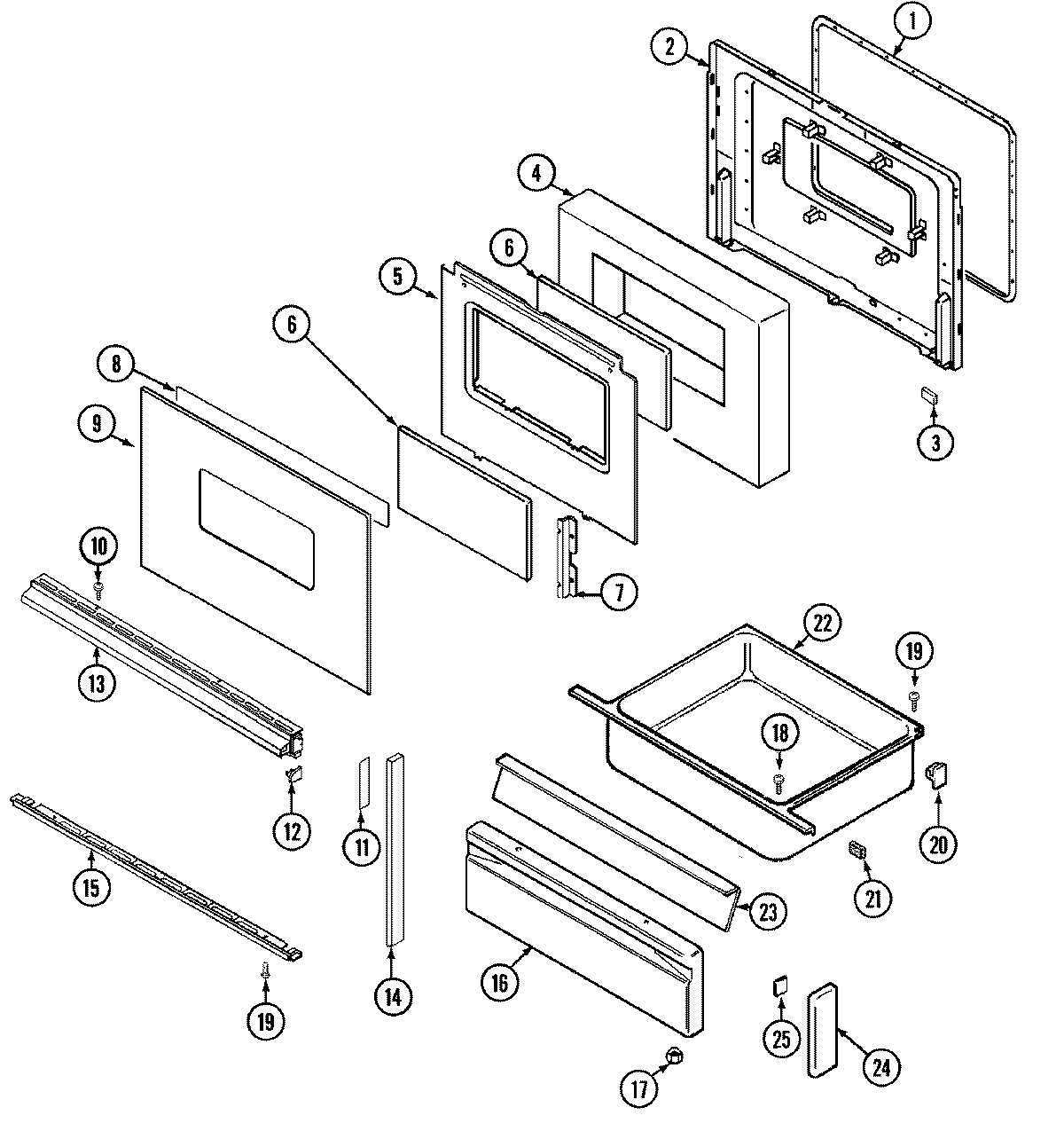

GM3468XUW-X 04 – DOOR/DRAWER (GM3468XUx-X SER. PRE. 11)

GM3468XUW-X 04 – DOOR/DRAWER (GM3468XUx-X SER. PRE. 11)

Written by

in

GM3468XUW-X 04 – DOOR/DRAWER (GM3468XUx-X SER. PRE. 11)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 7902P321-60
10WP98008545 Whirlpool Screw
11MAY 8270P093-60
12NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12MAY 7744P075-60
12MAY 7744P076-60
13MAY 7701P103-60
13MAY 7701P144-60
14MAY 74002084
14MAY 7744P055-60
15MAY 7744P105-60
16MAY 2416F038-65
17WPW10131078 Whirlpool Nut Assembly
18WP7101P072-60 Whirlpool Screw
20WP8004P026-60 Whirlpool Support
21MAY 7208P011-60
22MAY 3405F018-80
23LINING, DRAWER PANEL
23SCREW
24MAY 74002805
24MAY 7744P068-60
25TAPE
