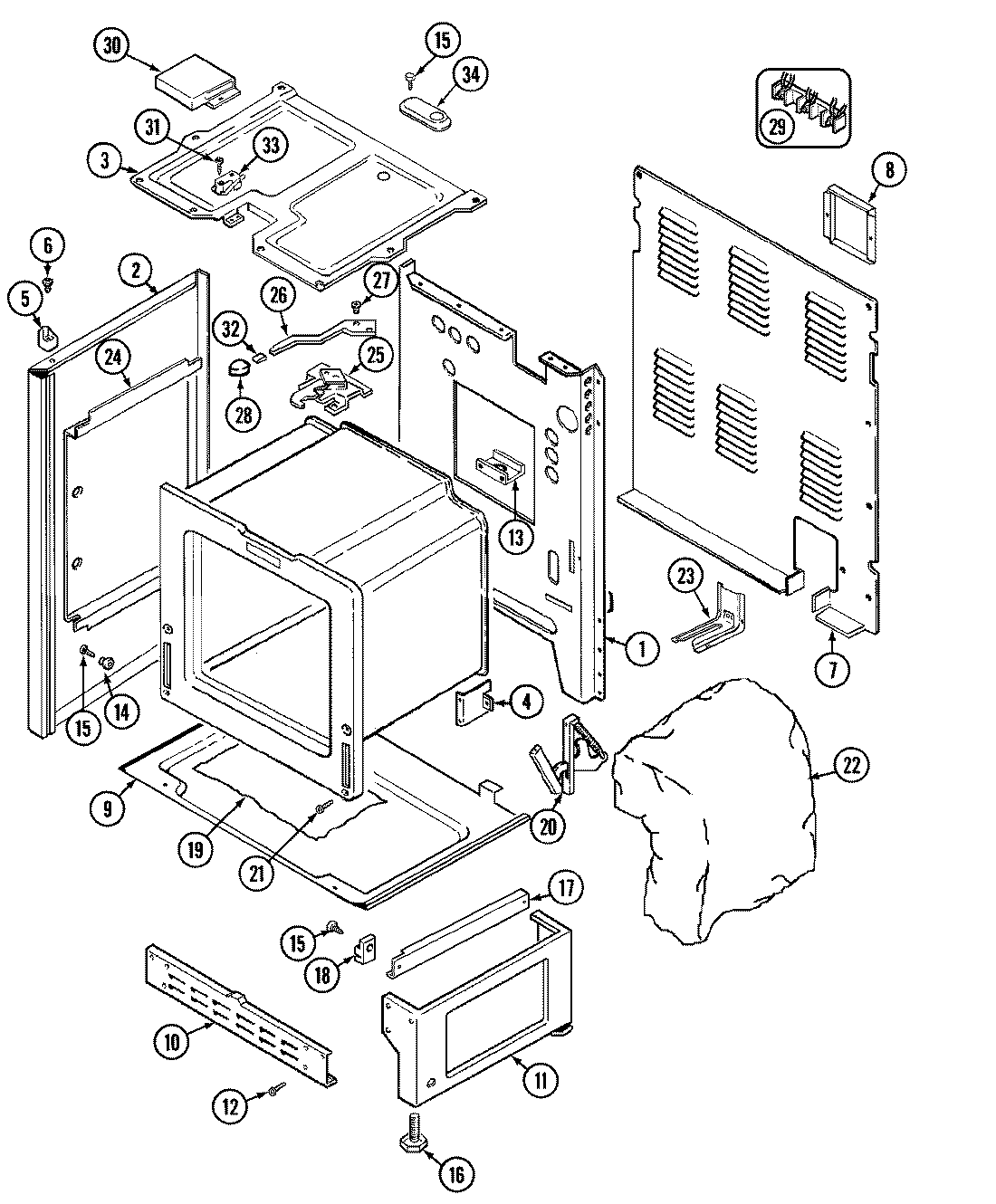

GM3862XUW 01 – BODY

Products

Position	Product
1	MAY 7403P160-60
1	MAY 74001341
2	MAY 2618F110-71
3	MAY 4011F240-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 4005F455-51
8	MAY 4005F376-51
9	MAY 3804F112-51
10	MAY 4020F001-80
11	MAY 74003016
11	MAY 4020W017-80
12	MAY 7101P290-60
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 74001449
16	W11665456 Whirlpool Range Level Foot
16	MAY 74001311
17	MAY 3406F028-51
18	MAY 74002312
18	MAY 8004P033-60
19	MAY 8312P058-60
20	MAY 7106P056-60
21	WP4159193 Whirlpool Screw
22	MAY 4804F036-60
22	MAY 74001159
23	MAY 3801F218-51
23	MAY 7101P289-60
24	MAY 3804F103-51
25	W10828565 Whirlpool Screw
25	MAY 8002P025-60
25	MAY 74003032
25	MAY 7101P280-60
25	MAY 4804F028-60
26	MAY 74003005
26	MAY 8009P024-60
27	SCREW, LEVER
28	MAY 7701P132-60
29	MAY 7401P041-60
29	WPW10245259 Whirlpool Terminal Block
30	MAY 4005F398-80
31	MAY 7101P130-60
32	MAY 7112P112-60
32	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
33	MAY 7403P228-60
34	COVER, VENT
35	MAY 5195D082-60
