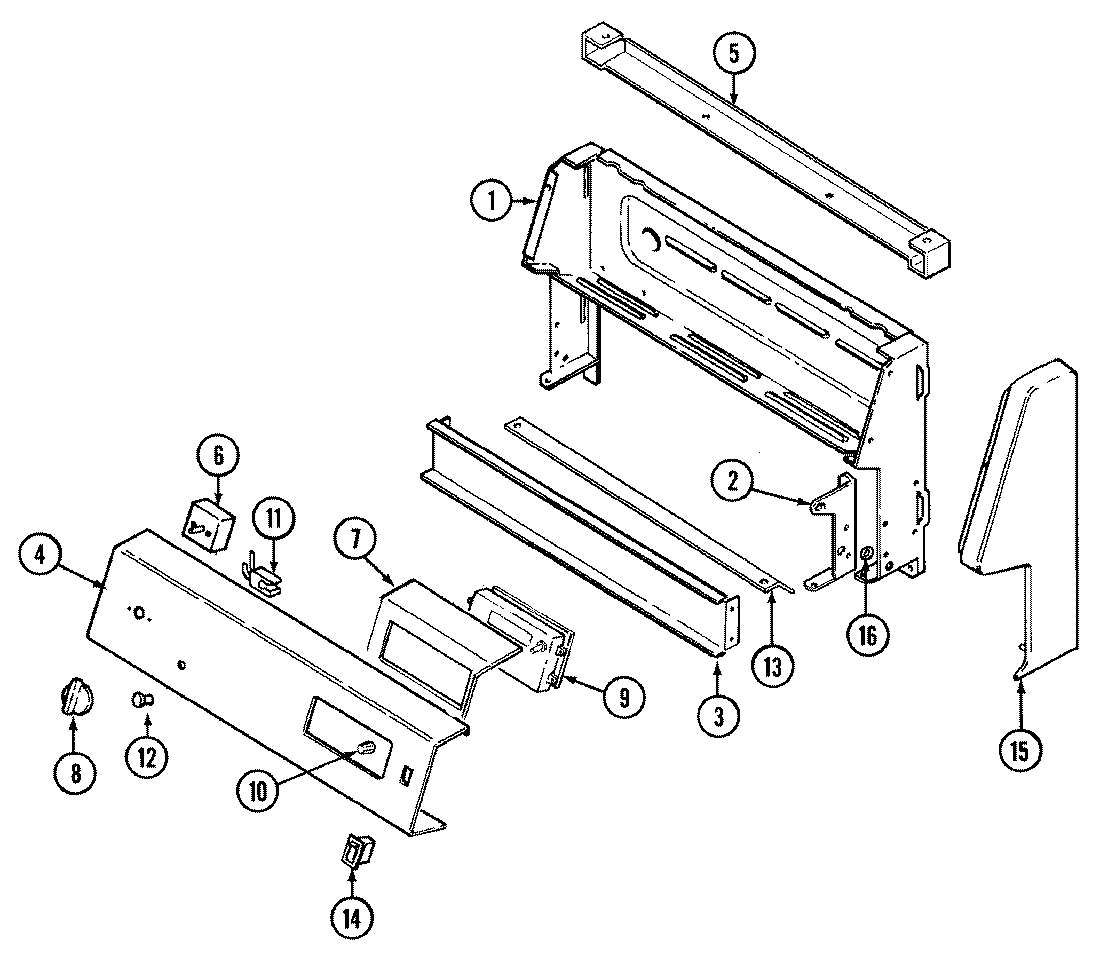

GM3862XUW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F091-51
2	MAY 3418D098-60
2	MAY 3418D097-60
3	MAY 3802F088-51
4	MAY 7703P572-60
4	WPY706189 Whirlpool Stove Screw
5	MAY 4001F064-51
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
6	SCREW
7	MAY 3801F336-45
8	MAY 7731P082-60
9	MAY 7101P148-60
9	MAY 7601P270-60
9	MAY 74001832
10	MAY 7711P431-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	W10852510 Whirlpool Indicator Light
12	W11690131 Whirlpool Light Lens
13	SCREW (8BX3/8-NI)
13	MAY 3604F201-80
14	7403P067-60 Whirlpool Light Switch
15	MAY 7726P046-60
15	MAY 7726P050-60
16	MAY 7103P129-60
17	MAY 5125A381-60
17	MAY 5175D049-60
17	MAY 5170P205-60
18	MAY 8113P068-60
18	MAY 16007437
19	MAY 16000329
