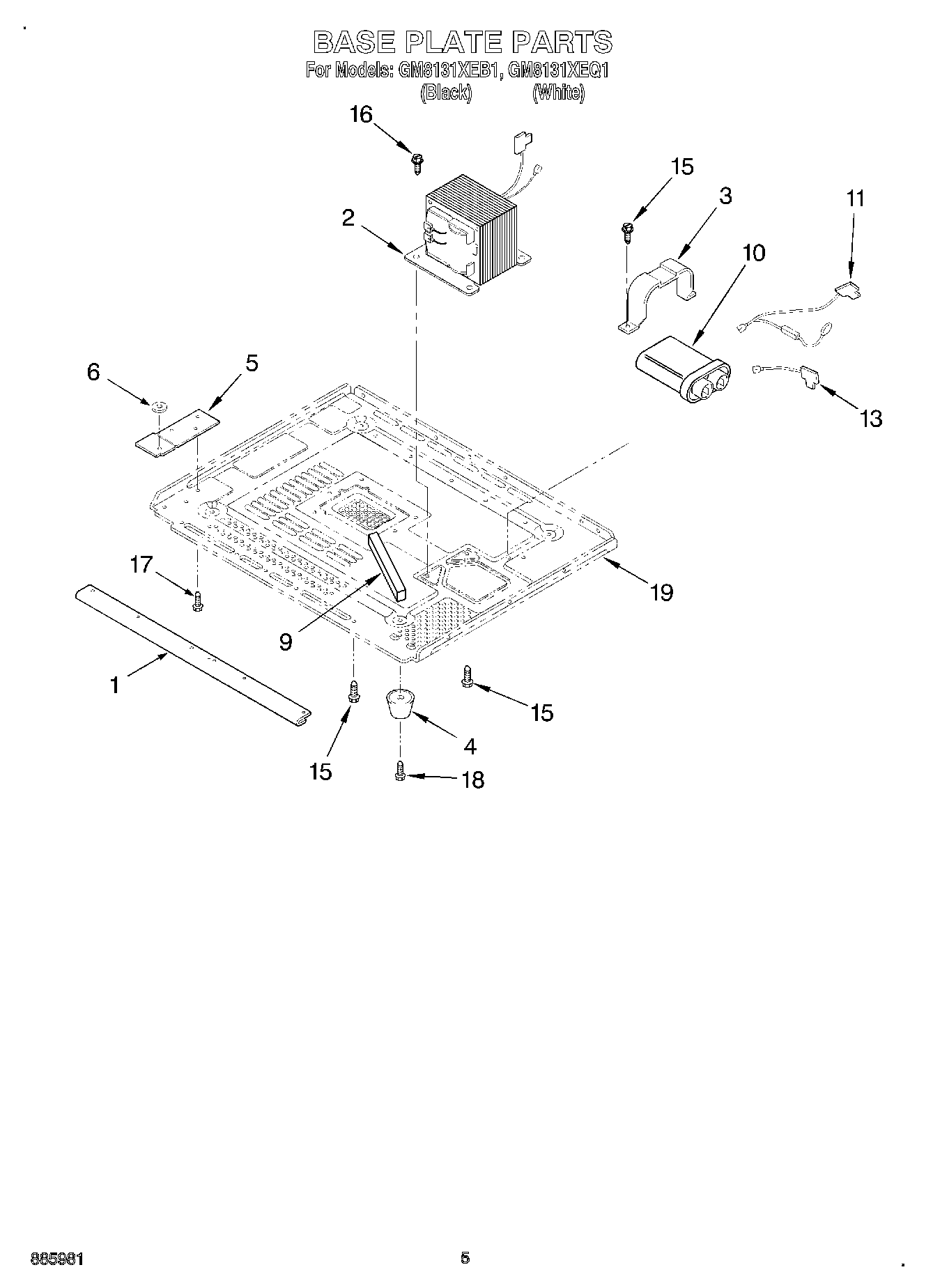

GM8131XEB1 04 – BASE PLATE
Products
| Position | Product |
|---|---|
| 1 | Deco |
| 2 | Transformer |
| 3 | Bracket, Capacitor |
| 4 | Leg |
| 5 | Hinge |
| 6 | Washer |
| 9 | Cushion |
| 10 | Capacitor |
| 11 | Diode |
| 13 | Cable |
| 15 | 4344826 Whirlpool Refrigerator Screw |
| 16 | WP3400094 Whirlpool Screw |
| 17 | Screw |
| 18 | Screw |
| 19 | Base Plate |
