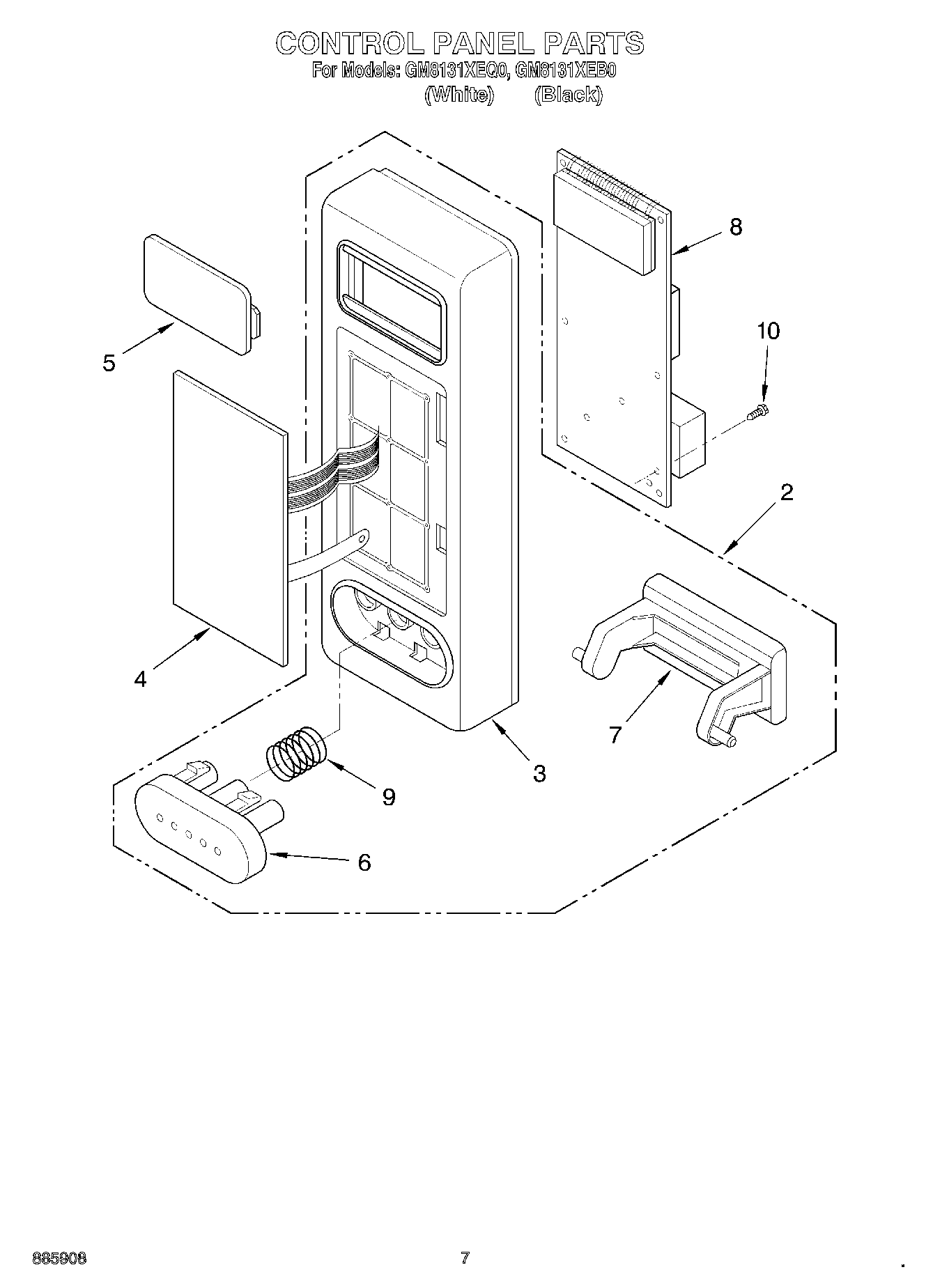

GM8131XEQ0 06 – CONTROL PANEL

Written by

Products

Position	Product
2	Control Sub Assembly (Black Model)
2	Control Sub Assembly (White Model)
3	Control Panel (White Model)
3	Control Panel (Black Model)
4	Membrane (Black Model)
4	Membrane (White Model)
5	Window
6	Button (White Model)
6	Button (Black Model)
7	Lever, Release
8	PCB Sub Assembly
9	Spring
10	Screw
