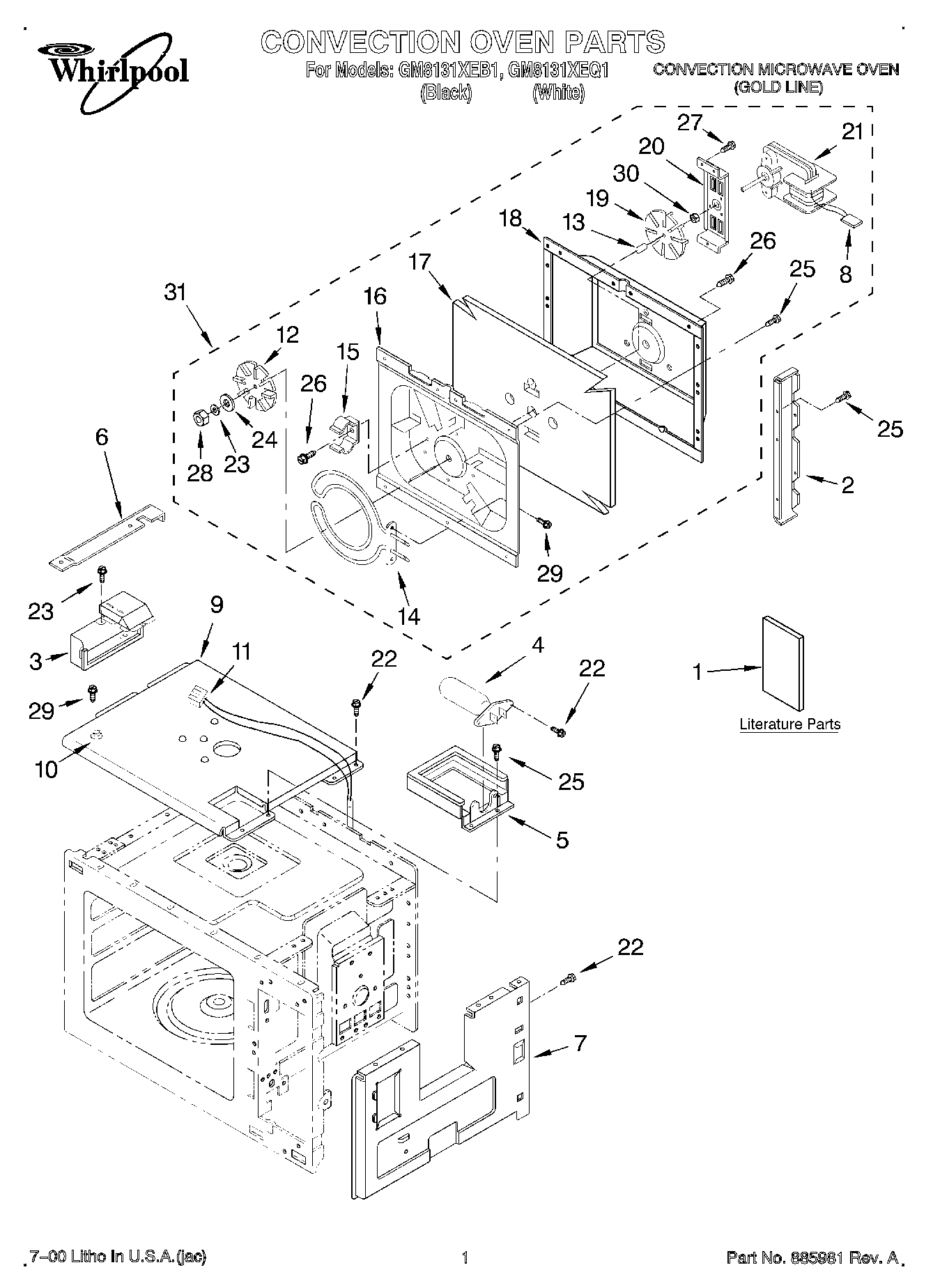

GM8131XEQ1 01 – CONVECTION OVEN, LITERATURE

Products

Position	Product
1	Literature Parts (Tech Sheet)
1	Literature Parts (Cooking Guide)
1	Literature Parts (U & C Guide)
1	Literature Parts (Cookbook)
2	Bracket, Support
3	Air Tunnel
4	Lamp
5	Bracket, Lamp
6	Cover
7	Insulator
8	Motor Wire
9	Insulator
10	Thermostat
11	Thermistor
12	Fan
13	Bushing
14	Convection Element
15	Clip, Convection Element
16	Duct, Magnatron
17	Insulation
18	Insulation Shield, Back
19	Fan Blade
20	Bracket, Convection Motor
21	Convection Motor
22	W11380570 Whirlpool Microwave Screw
23	WP8533914 Whirlpool Lock
24	Washer
25	W11245710 Whirlpool Refrigerator Screw
27	WP3196557 Whirlpool Screw
28	Nut
29	Screw
30	Nut
31	Chamber Assembly
31	27“ Built-In Kit MK8137XAQ (White)
31	27“ Built-In Kit MK8137XAB (Black)
31	30“ Built-In Kit MK8130XAQ (White)
