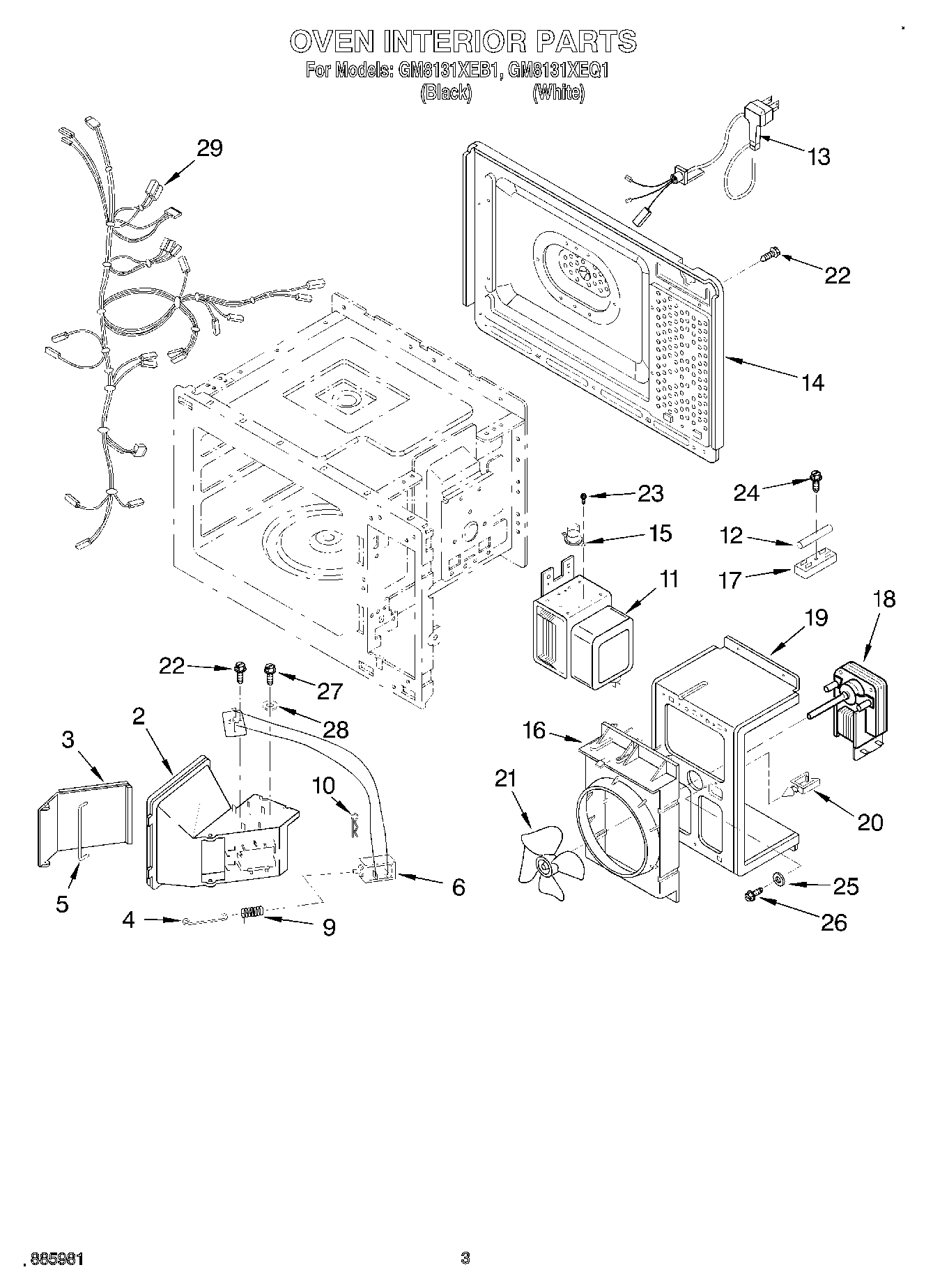

GM8131XEQ1 02 – OVEN INTERIOR

Products

Position	Product
2	Air Duct
3	Bracket, Damper
4	Connector, Damper
5	Shaft
6	Solenoid
9	Spring, Solenoid
10	Pin
11	Magnatron
12	Fuse
13	Cord, Power
14	Cover, Back
15	Thermostat
16	Suction, Guide
17	Holder, Fuse
18	Motor, Fan
19	Mount, Motor
20	Wire Holder (4)
21	Fan
22	W11380570 Whirlpool Microwave Screw
23	Screw
24	Screw
25	Washer
26	4344826 Whirlpool Refrigerator Screw
28	Washer
29	Harness, Main
