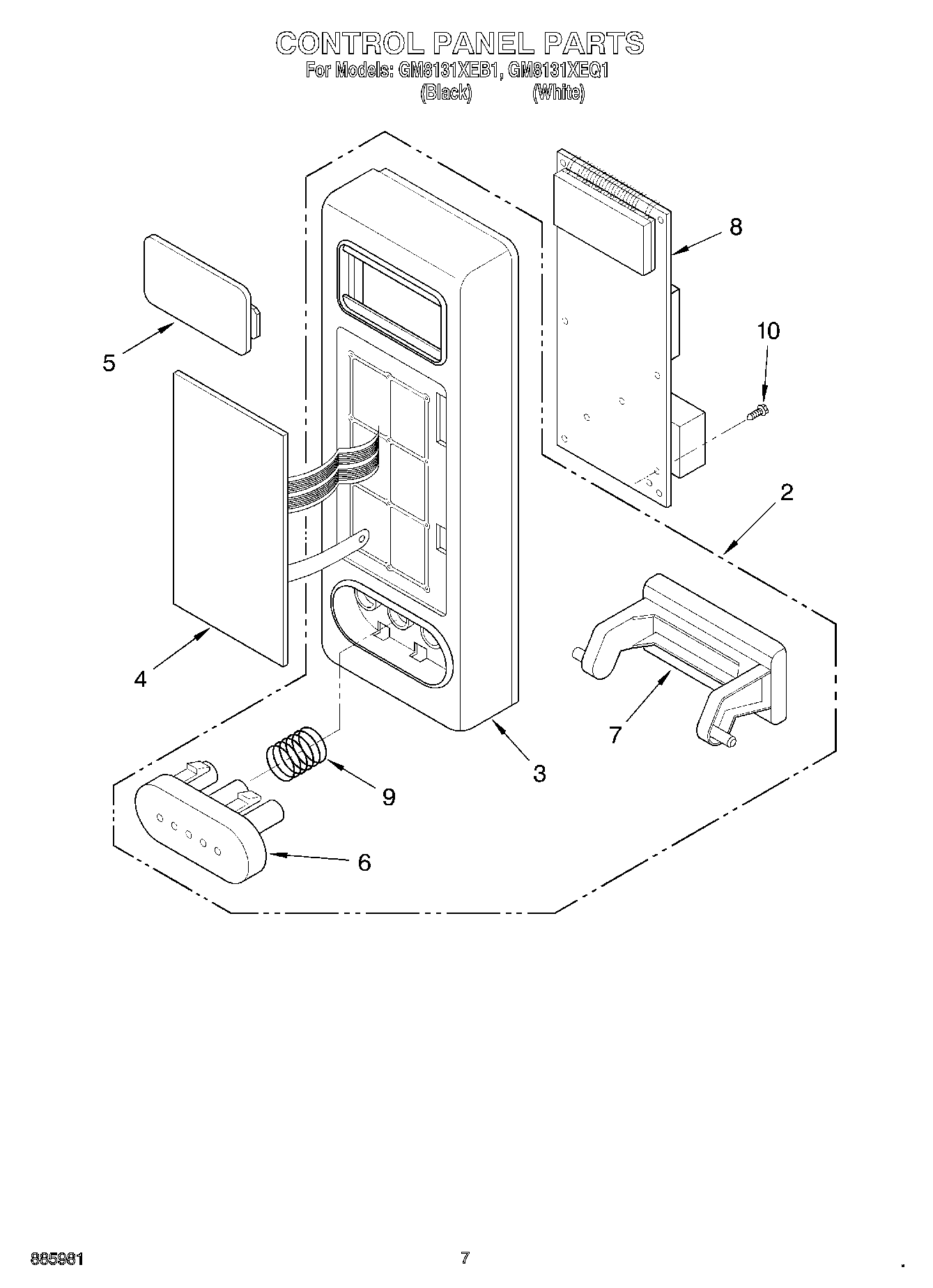

GM8131XEQ1 06 – CONTROL PANEL

Products

PositionProduct
2Control Sub Assembly (Black Model)
2Control Sub Assembly (White Model)
3Control Panel (White Model)
3Control Panel (Black Model)
4Membrane (Black Model)
4Membrane (White Model)
5Window
6Button (White Model)
6Button (Black Model)
7Lever, Release
8PCB Sub Assembly
9Spring
10Screw
