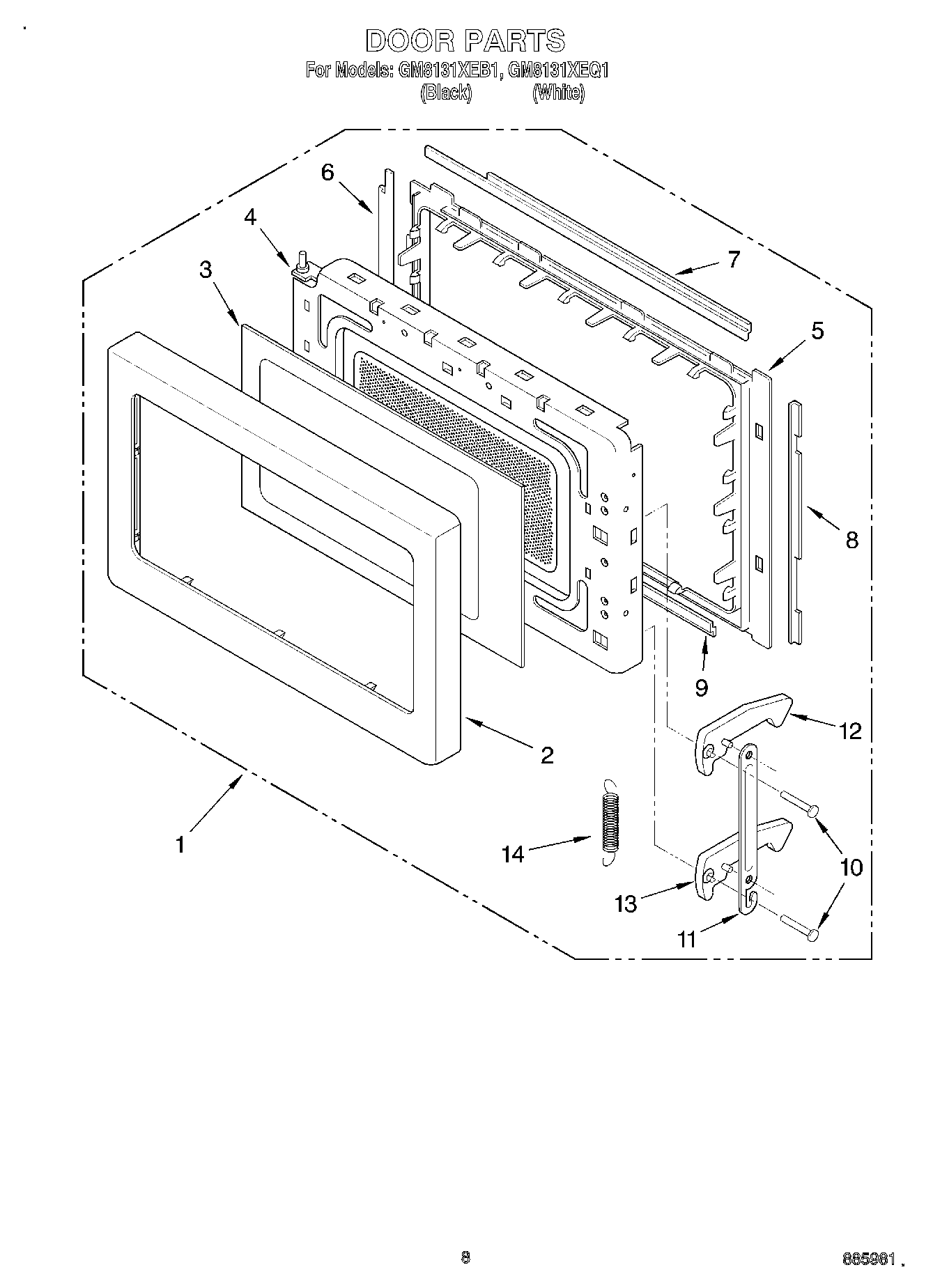

GM8131XEQ1 07 – DOOR

Products

Position	Product
1	Door Assembly (White)
1	Door Assembly (Black)
2	Panel, Door (White Model)
2	Panel, Door (Black Model)
3	Glass (White)
3	Glass (Black)
4	Assembly, Door Frame
5	Choke Cover
6	Side Trim, Door
7	Top Trim, Door
8	Side Trim, Door
9	Bottom Trim, Door
10	Pin, Latch
11	Lever, Latch
12	Latch
13	Latch
14	Spring
