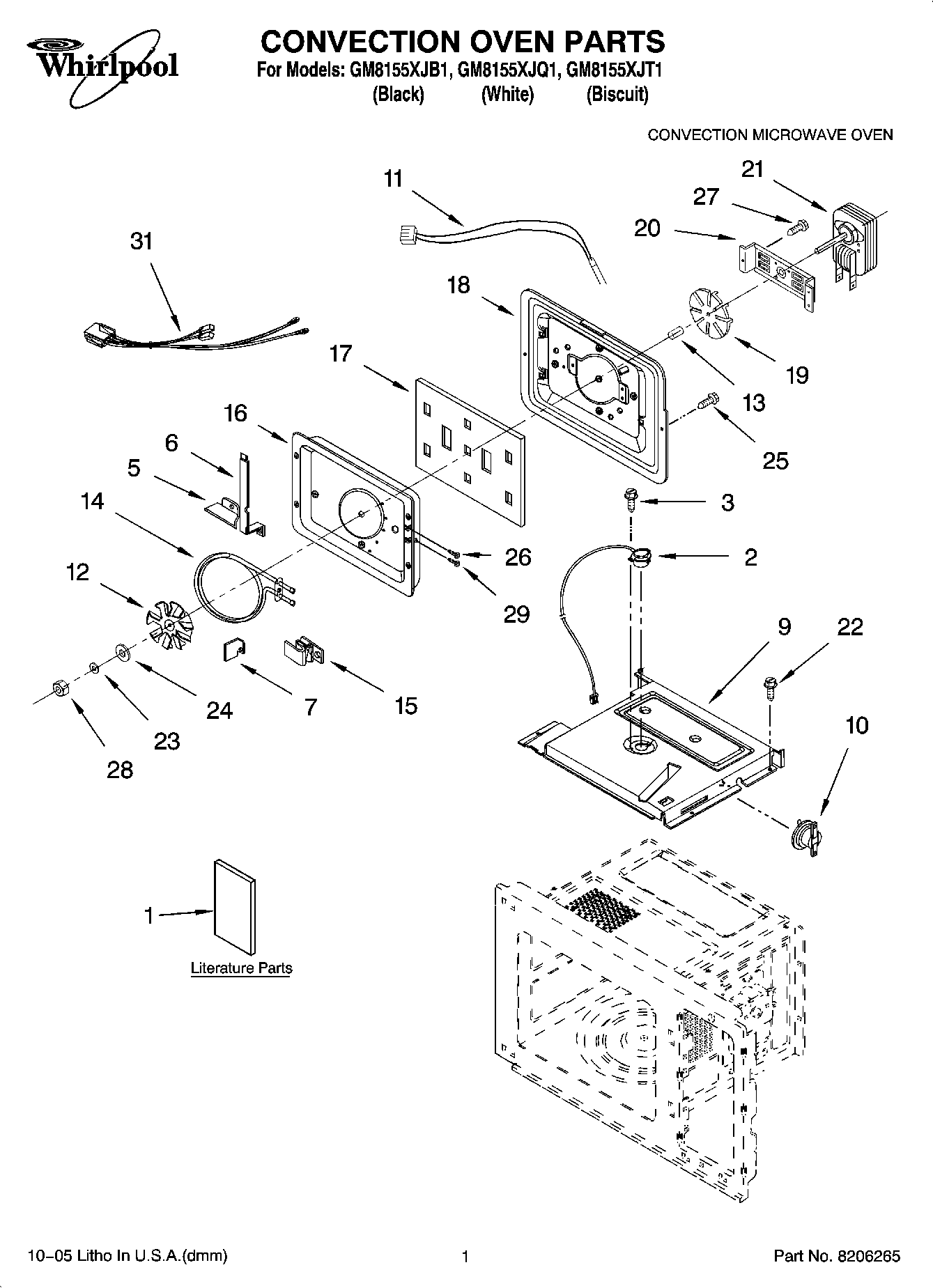

GM8155XJB1 01 – CONVECTION OVEN PARTS

Products

Position	Product
1	English
1	U & C Guide
1	Instructions, Installation
1	Template-B/I Kit
1	Tech Sheet Cooking Guide
2	Sensor
3	Screw
5	Bracket, Center
6	Bracket, Left
7	Bracket, Lower
9	Insulator
10	Thermostat
11	Thermistor
12	Fan
13	Bushing
14	Convection Element
15	Clip, Conv Element
16	Duct, Magnetron
17	Insulation
18	Shield, Back Insul
19	Fan Blade
20	Bracket, Convection Motor
21	Convection Motor
22	W11380570 Whirlpool Microwave Screw
23	WP8533914 Whirlpool Lock
24	Washer
25	W11245710 Whirlpool Refrigerator Screw
26	Screw
28	Nut
29	Screw
31	Trim Kits (27“ Biscuit)
31	ACCESSORY PARTS
31	Trim Kits (30“ White)
31	Trim Kits (30“ Black)
31	Trim Kits (30“ Stainless)
31	Harness, Wire
31	Trim Kits (30“ Biscuit)
31	Trim Kits (27“ Black)
31	Trim Kits (27“ White)
31	Trim Kits (27“ Stainless)
31	Trim Kits
