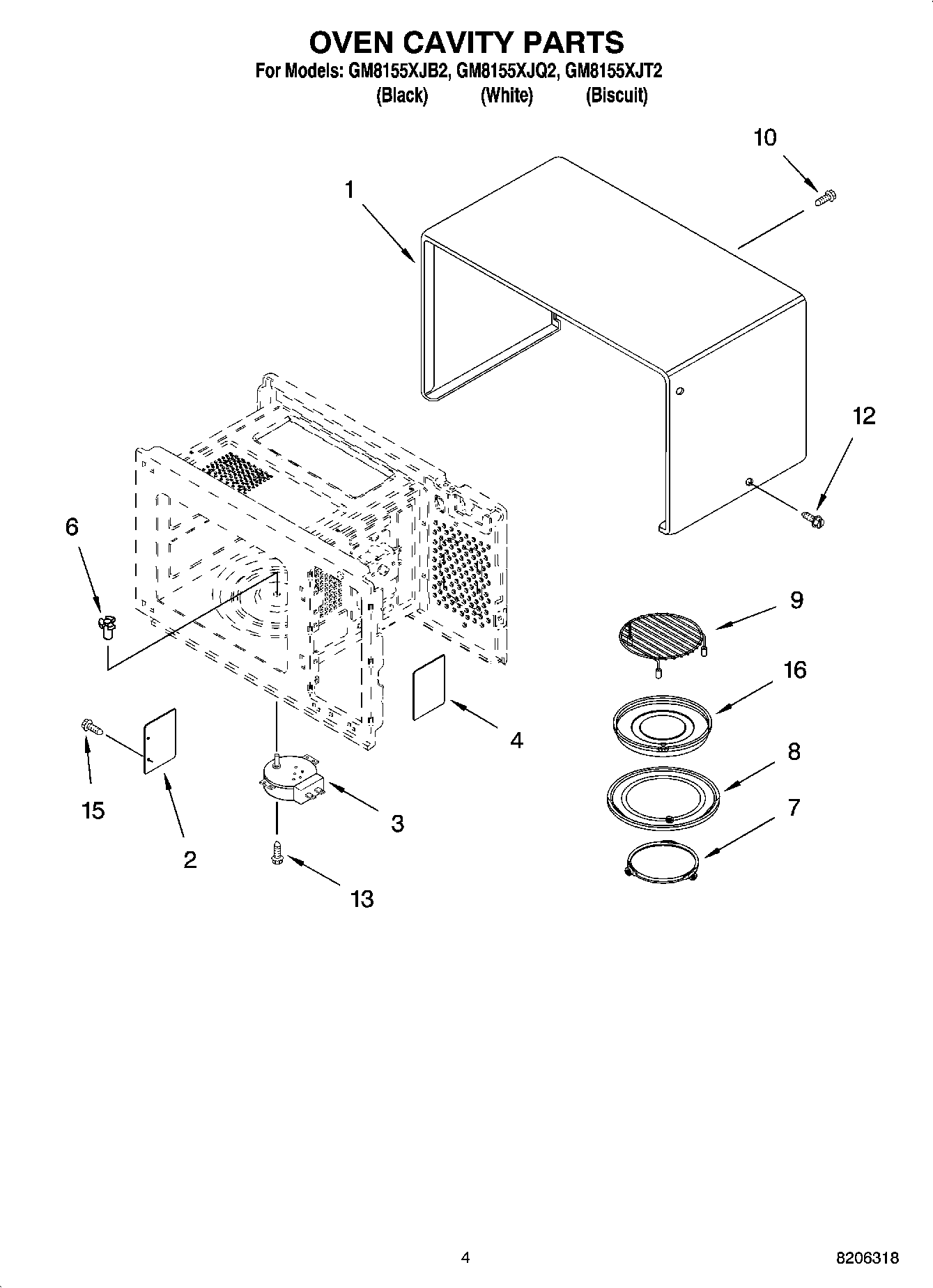

GM8155XJB2 03 – OVEN CAVITY PARTS

Written by

Products

Position	Product
1	Outer Case (White)
1	Outer Case (Black)
1	Outer Case (Biscuit)
2	Canopy
3	Motor, Turntable
4	Glass, Lamp
6	Turntable Shaft
7	Ring Assembly
8	WP8172138 Whirlpool Microwave Cook Tray
9	Rack
10	W11380570 Whirlpool Microwave Screw
12	W11245710 Whirlpool Refrigerator Screw
12	Screw
13	Screw
15	WP3196557 Whirlpool Screw
16	Pan, Drip
