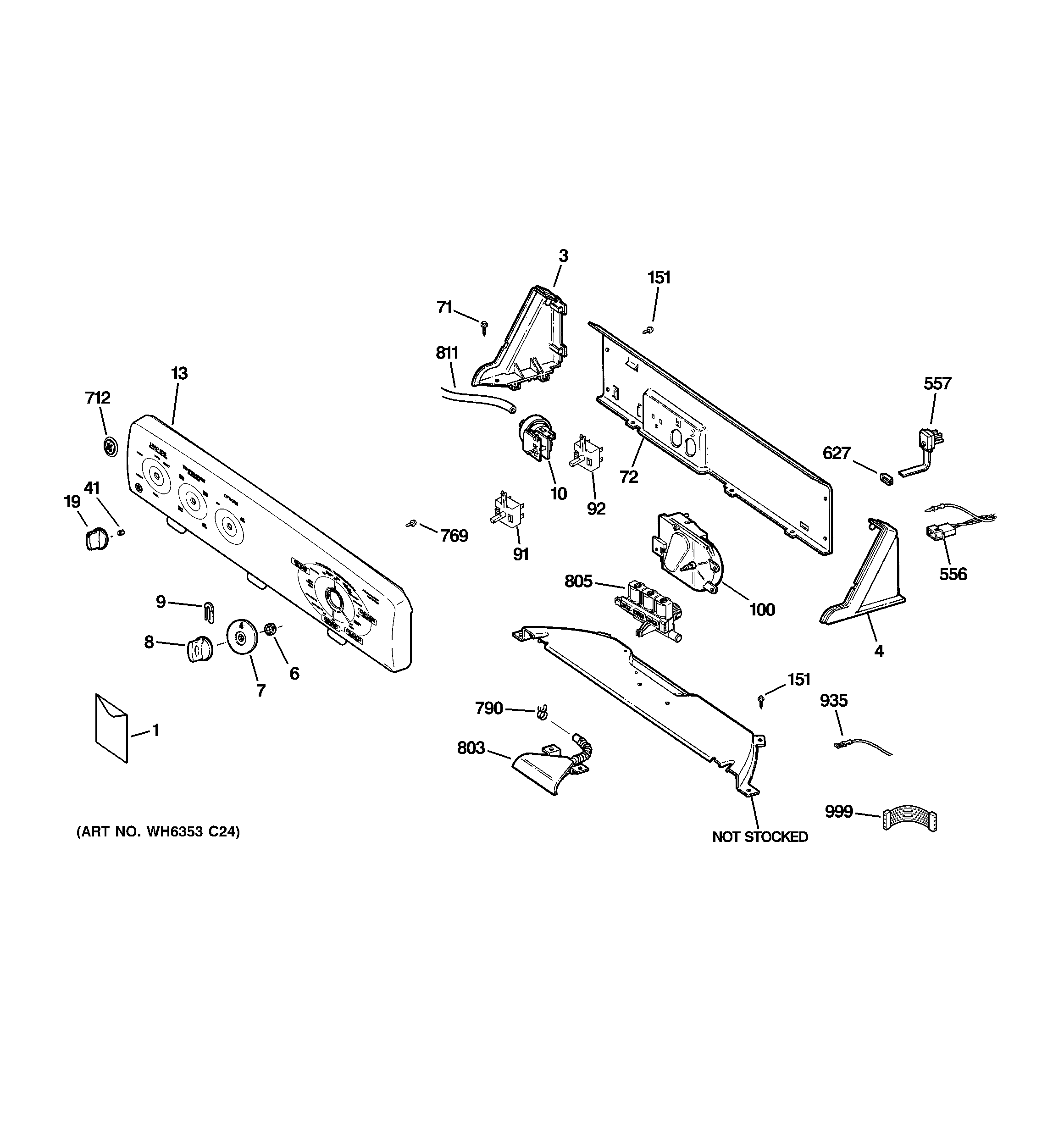

GMAN3000M2WS CONTROLS & BACKSPLASH

GMAN3000M2WS CONTROLS & BACKSPLASH

Written by

in

GMAN3000M2WS CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-15441
1GEN 49-90444
1GEN 31-16686
3WH42X22575 GE Left Hand Endcap Washer
4WH42X22576 GE Washer Right Hand Endcap
6WH02X10093 GE Washer Compression Ring
7GEN WH11X10060
8GEN WH01X10629
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10476 GE Washer Water Level Pressure Switch
13GEN WH42X10943
19WH01X10462 GE Washer Dryer Gray Knob and Clip Assembly
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10146
91WH12X10498 GE Washer Rotary Switch
92FABRIC SOFTENER SWITCH
100WH12X10535 GE Washer Timer
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
556GEN WH12X0497
557GEN WH19X10068
627GEN WH12X10208
712GEN WD34X11472
769WR01X10619 GE Refrigerator Screw
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WH13X23974 GE Washer Water Inlet Valve
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
999GEN WH19X10091
