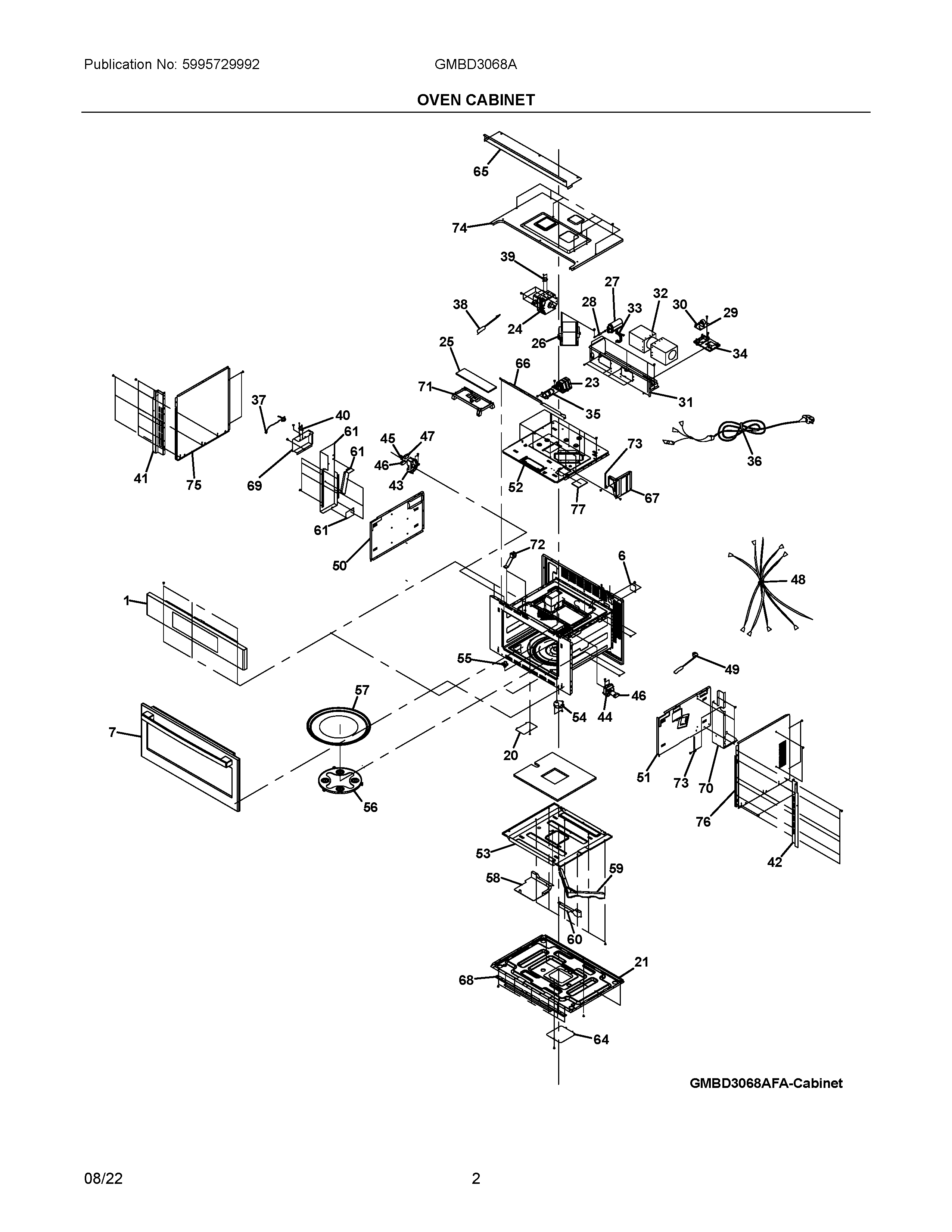

GMBD3068ADA 02 – OVEN CABINETadmin2025-04-26T10:19:44+00:00GMBD3068ADA 02 – OVEN CABINET
Products
| Position | Product |
|---|
| NIB | WCI 5304515322 |
| NIA | WCI 5304515321 |
| 1 | 5304531717 Frigidaire Control Panel |
| 6 | COVER, LIGHT BLOCK |
| 7 | DOOR ASSEMBLY, COMPLETE, BLACK STAINLESS |
| 20 | 5304514227 Frigidaire Stirrer Blade Cover |
| 21 | 5304514238 Frigidaire Microwave Base Plate |
| 23 | 5304514247 Frigidaire Cover |
| 24 | 5304514250 Frigidaire Microwave Magnetron |
| 25 | 5304527879 Frigidaire Microwave Pc Board |
| 26 | 5304514249 Frigidaire Microwave Transformer |
| 27 | 5304518895 Frigidaire Microwave Capacitor |
| 28 | DIODE, HIGH VOLTAGE |
| 29 | 5304525109 Frigidaire Microwave Filter |
| 30 | 5304514258 Frigidaire Microwave Fuse |
| 31 | 5304514254 Frigidaire Bracket Assembly |
| 32 | 5304514255 Frigidaire Microwave Fan Exhaust |
| 33 | 5304513482 Frigidaire Holder |
| 34 | 5304515326 Frigidaire Holder |
| 35 | BULB, LAMP |
| 36 | POWER CORD, ELECT SERVICE |
| 37 | 5304509652 Frigidaire Microwave Sensor |
| 38 | 5304514252 Frigidaire Microwave Fuse Assembly |
| 39 | 5304515313 Frigidaire Microwave Thermostat |
| 40 | 5304518898 Frigidaire Microwave Thermostat |
| 41 | BRACKET, TRIM, LH |
| 42 | BRACKET, TRIM, RH |
| 43 | 5304515317 Frigidaire Microwave Board Latch |
| 44 | 5304515318 Frigidaire Microwave Board Latch |
| 45 | 5304514265 Frigidaire Microwave Rod |
| 46 | 5304514264 Frigidaire Microwave Switch |
| 47 | 5304514266 Frigidaire Microwave Switch |
| 48 | 5304518901 Frigidaire Microwave Harness |
| 49 | HARNESS, WIRING, MOTOR |
| 50 | 5304518902 Frigidaire Shield Plate Assembly |
| 51 | 5304518903 Frigidaire Shield Plate |
| 52 | SHIELD PLATE, HEAT, TOP |
| 53 | WCI 5304518904 |
| 54 | MOTOR, TURNTABLE |
| 55 | 5304518906 Frigidaire Microwave Coupler |
| 56 | 5304518907 Frigidaire Microwave Rotating Ring |
| 57 | 5304513473 Frigidaire Microwave Tray |
| 58 | WCI 5304514235 |
| 59 | WCI 5304514236 |
| 60 | WCI 5304514237 |
| 61 | WCI 5304515320 |
| 64 | 5304514239 Frigidaire Cover |
| 65 | WCI 5304518908 |
| 66 | WCI 5304514282 |
| 67 | WCI 5304515324 |
| 68 | WCI 5304515325 |
| 69 | WCI 5304514269 |
| 70 | WCI 5304515323 |
| 71 | 5304518909 Frigidaire Barcket |
| 72 | WCI 5304514242 |
| 73 | WCI 5304531646 |
| 74 | WCI 5304514259 |
| 75 | WCI 5304514272 |
| 76 | WCI 5304514277 |
| 77 | 5304514241 Frigidaire Glass |
